CF8M Y-Type Female Filter 800PSI ANSI B16.34
Body:
CF8
CF8M
CF3
CF3M
WCB
Seat:
PTFE
RPTFE
PPL
PEEK
Size:
1/4"(DN8)
3/8"(DN10)
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
2-1/2"(DN65)
3"(DN80)
Quantity:
Y-Type Female Filter
Standard: ANSI B16.34
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

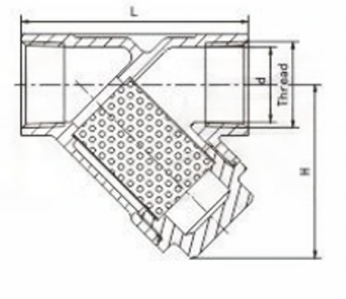

Dimensions & Sizes
Size | d | L | H | H1 | |
1/4" | DN8 | 11.6 | 56 | 37.8 | 42.6 |
3/8" | DN10 | 11.6 | 65 | 37.8 | 42.6 |
1/2" | DN15 | 17.5 | 65 | 44.7 | 47.3 |
3/4" | DN20 | 23 | 75 | 52.1 | 56.6 |
1" | DN25 | 29 | 90 | 65.7 | 69.5 |
1-1/4" | DN32 | 38 | 110 | 70 | 77.6 |
1-1/2" | DN40 | 43.5 | 120 | 79.5 | 84.5 |
2" | DN50 | 55 | 140 | 95.5 | 105 |
2-1/2" | DN65 | 69 | 190 | 125 | 134 |
3" | DN80 | 81.5 | 205 | 145.5 | 156 |
MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Basket | SUS304/SUS316 | 1 |
3 | Gasket | PTFE/RPTFE | 1 |
4 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 1 |
5 | Gasket | PTFE/RPTFE | 1 |
6 | Plug | SUS304 | 1 |
