1/2"-16” Globe Valve 150#300# Stainless Steel

Pressure Ratings:

150 lbs

300 lbs

NPS:

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2 "

3"

4"

5"

6"

8"

10"

12"

14"

16"

Material：:

304

304L

316

316L

Quantity:

Contact Now

add to cart

1/2"-16” Globe Valve 150#300# Stainless Steel

Design &Manufacture Standard
Design &Manufacture: API602, ASME B16.34
Face to Face: ASME B16.10
Connection dimension: ASME B16.5, ASME B16.25
Inspection and Test: ISO 5208, API 598

globe stop valve

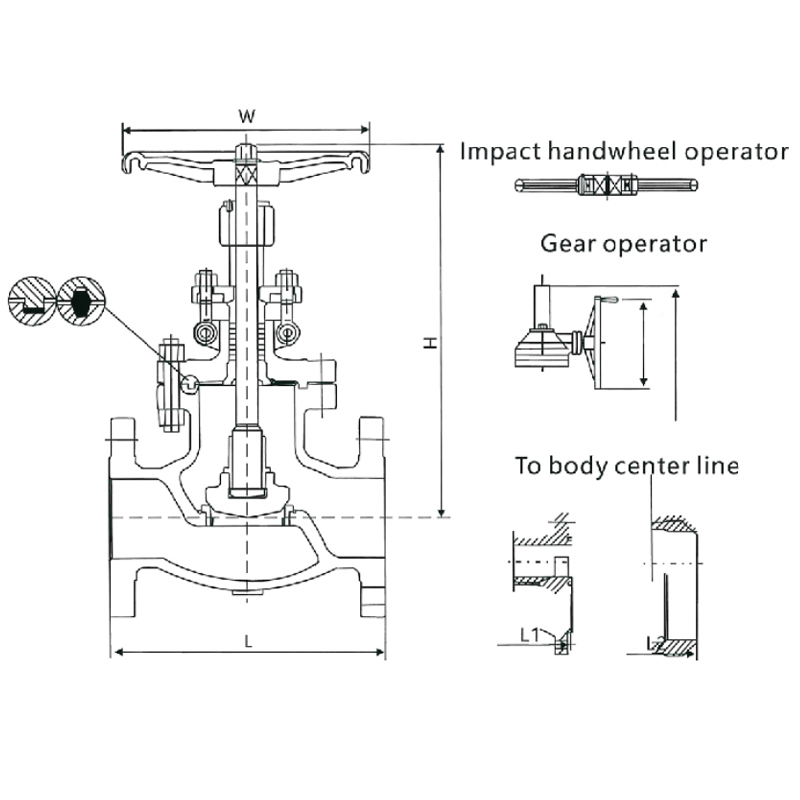

Main dimensions and connection dimensions

Size	inch	1/2		3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14	16
Size	mm	15		20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	mm	108		117	127	140	165	203	216	241	292	356	406	495	622	698	787	914
L1	mm	-		-	-	-	178	216	229	254	305	368	419	508	635	711	800	927
L2	mm	108		117	127	140	165	203	216	241	292	356	406	495	622	698	787	914
H	mm	163		193	250	250	291	350	362	385	490	455	537	707	788	820	-	-
W	mm	100		125	160	160	180	220	250	280	320	320	400	450	560	560	-	-
H1	mm	-		-	-	-	-	-	-	-	-	-	-	760	830	890	1400	1648
W1	mm	-			-	-	-	-	-	-	-	一	-	310	310	460	600	600
T	N.m	-		-	-	-	-	31	50	72	115	170	225	427	671	1127	1231	1750
WT(RF)	kg	6.9		9.8	13.5	19.5	28.5	21	29	34	54	72	93	185	268	400	650	1113
J41H(Y)			Class 150

Size	inch		1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12
Size	mm		15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	mm		152	178	203	216	229	267	292	318	356	400	445	559	622	711
L1	mm		-	-	-	-	178	283	308	333	371	416	460	575	638	727
L2	mm		108	117	127	140	165	267	292	318	356	400	445	559	622	711
H	mm		163	193	250	250	291	345	377	405	468	620	*708	*777	*935	*906
W	mm		100	125	160	160	180	220	250	280	320	400	*450	*500	*560	*600
H1	mm		-	-	-	-	-	-	-	-	-	-	836	854	997	1230
W1	mm		-	-	-	-	-	-	-	-	-	-	460	460	460	300
T	N.m		-	-	-	-	-	52	90	137	236	390	556	1003	1962	3465
WT(RF)	kg		7.7	11.3	16.8	21.2	32.6	28	36	50	75	140	200	287	510	720
J41H(Y)		Class 300

This high-performance stainless steel globe valve delivers precise flow regulation for demanding industrial applications. The durable globe stop valve design features a linear motion mechanism for accurate throttling control and reliable shut-off capability. Rated for 150# and 300# pressure classes, this robust stainless steel globe valve ensures excellent corrosion resistance and long service life. The precision-engineered globe stop valve provides bubble-tight sealing with minimal seat erosion during frequent operation. Ideal for chemical processing, power generation, and HVAC systems, this versatile stainless steel globe valve guarantees superior performance where precise flow control and system safety are essential requirements. The maintenance-friendly design facilitates easy servicing and component replacement.
