1/2"-8" Sanitary Welded Butterfly Valve 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

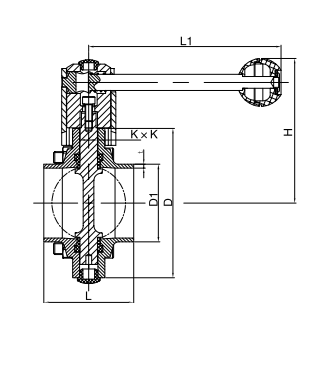

Welded Butterfly Valve (DIN)
Dimensions & Sizes
Size | D1 | D | L | L1 | H | T | KXK | |
1 | 2 | |||||||
DN10 | 12 | 13 | 78 | 50 | 126 | 86 | 1.5 | 8x8 |
DN15 | 18 | 19 | 78 | 50 | 126 | 86 | 1.5 | 8x8 |
DN20 | 22 | 23 | 78 | 50 | 126 | 86 | 1.5 | 8x8 |
DN25 | 28 | 29 | 78 | 50 | 126 | 86 | 1.5 | 8x8 |
DN32 | 34 | 35 | 86 | 50 | 126 | 90 | 1.5 | 8x8 |
DN40 | 40 | 41 | 90 | 50 | 126 | 92 | 1.5 | 8x8 |
DN50 | 52 | 53 | 106 | 52 | 133 | 104 | 1.5 | 10x10 |
DN65 | 70 | - | 124 | 56 | 144 | 113 | 2.0 | 10x10 |
DN80 | 85 | - | 139 | 60 | 160 | 123.5 | 2.0 | 11x11 |
DN100 | 104 | - | 159 | 64 | 160 | 133.5 | 2.0 | 11x11 |
DN125 | 129 | - | 185 | 80 | 220 | 146.5 | 2.0 | 11x11 |
DN150 | 154 | - | 215 | 90 | 220 | 161.5 | 2.0 | 11x11 |
DN200 | 204 | - | 285 | 90 | 284 | 199 | 2.0 | 14x14 |

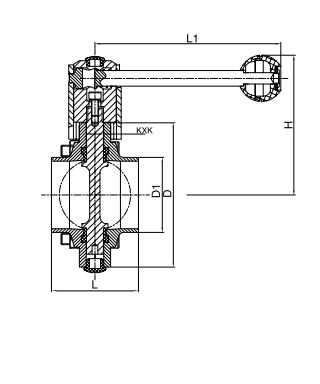

Welded Butterfly Valve (3A, SMS, ISO, DS)
Dimensions & Sizes
Size | D1 | D | L | L1 | H | KXK |
1/2" | 12.7 | 78 | 50 | 126 | 86 | 8x8 |
3/4" | 19 | 78 | 50 | 126 | 86 | 8x8 |
1" | 25.4 | 78 | 50 | 126 | 86 | 8x8 |
1-1/4" | 31.8 | 78 | 50 | 126 | 86 | 8x8 |
1-1/2" | 38.1 | 86 | 50 | 126 | 90 | 8x8 |
DN45 | 45 | 90 | 50 | 126 | 92 | 8x8 |
DN48 | 48 | 95 | 52 | 126 | 95 | 8x8 |
2" | 50.8 | 102 | 52 | 133 | 102 | 10x10 |
DN57 | 57 | 106 | 52 | 144 | 104 | 10x10 |
2-1/2" | 63.5 | 115 | 56 | 144 | 109 | 10x10 |
3" | 76.2 | 128 | 56 | 144 | 115 | 10x10 |
3.5" | 89 | 139 | 60 | 144 | 123.5 | 11x11 |
4" | 102 | 154 | 64 | 144 | 131 | 11x11 |
DN108 | 108 | 159 | 64 | 160 | 133.5 | 11x11 |
DN114 | 114.3 | 185 | 80 | 160 | 133.5 | 11x11 |
5" | 127 | 185 | 80 | 220 | 146.5 | 11x11 |
DN133 | 133 | 215 | 80 | 220 | 146.5 | 11x11 |
6" | 152.4 | 215 | 90 | 220 | 161.5 | 11x11 |
DN159 | 159 | 215 | 90 | 220 | 161.5 | 11x11 |
DN168.3 | 168.3 | 215 | 90 | 220 | 161.5 | 11x11 |
8" | 203.2 | 285 | 90 | 284 | 199 | 14x14 |
DN219 | 219 | 285 | 90 | 284 | 199 | 14x14 |
