1” Sanitary Welded Diaphragm Valve DIN SMS IDF ISO 3A BPE
SIZE:
1"
1-1/4"
1-1/2"
2"
2-1/2"
Quantity:
Sanitary Welded Diaphragm Valve
Standard: DIN SMS IDF ISO 3A BPE
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Welded Diaphragm Valve

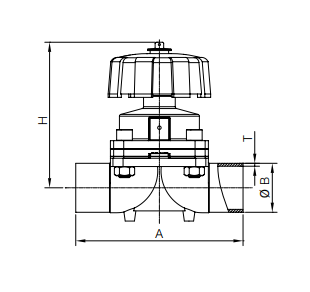

Dimensions & Sizes
Size | A | B | H | T |
1" | 118.0 | 25.4 | 111.5/122 | 1.65 |
1-1/4" | 127.0 | 31.8 | 144.5/160 | 1.65 |
1-1/2" | 146.0 | 38.1 | 144.5/160 | 1.65 |
2" | 190.0 | 50.8 | 167/190 | 1.65 |
2-1/2" | 216.0 | 63.5 | 199/228 | 1.65 |
