CF8M 2-PC Vertical check valve 200PSI ANSI B16.34
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Dimensions & Sizes
Size | d | L | |
1/4” | DN8 | 12 | 60 |
3/8“ | DN10 | 12 | 60 |
1/2” | DN15 | 14 | 60 |
3/4” | DN20 | 19 | 70 |
1" | DN25 | 24 | 80 |
1-1/4" | DN32 | 30 | 88 |
1-1/2" | DN40 | 38 | 102 |
2" | DN50 | 49 | 110 |

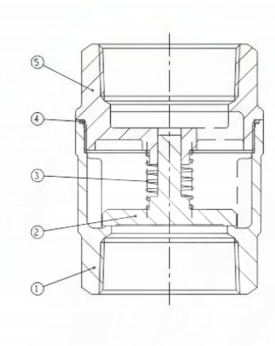

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Disc | SSUS304/SUS316 | 1 |
3 | Spring | SUS304/SUS316 | 1 |
4 | Gasket | PTFE/RPTFE | 1 |
5 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 1 |
Ensure reliable backflow prevention with our CF8M vertical check valve. This 2-piece design vertical valve features a compact vertical installation profile, saving valuable space in your piping system. Rated for 200PSI and compliant with ANSI B16.34, this durable vertical check valve is constructed from corrosion-resistant CF8M (316 stainless steel), ideal for demanding applications. The vertical valve design utilizes gravity and reverse flow to automatically close, preventing water hammer. Its 2-piece construction allows for easy maintenance and inspection. This high-performance vertical check valve delivers outstanding service in chemical, process, and industrial systems requiring dependable, leak-proof protection.
