CF8M Threaded swing check valve 200PSI ANSI B16.34
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Dimensions & Sizes
Size | d | L | H | |
1/2" | DN15 | 15 | 65 | 43 |
3/4" | DN20 | 20 | 75 | 45 |
1" | DN25 | 25 | 90 | 56 |
1-1/4" | DN32 | 32 | 105 | 61 |
1-1/2" | DN40 | 38 | 120 | 65 |
2" | DN50 | 50 | 140 | 76 |
2-1/2" | DN65 | 65 | 165 | 91 |
3" | DN80 | 80 | 185 | 105 |

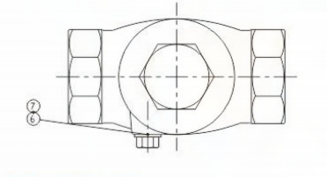

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Disc | SUS304/SUS316 | 1 |
3 | Dowel | SUS304/SUS316 | 1 |
4 | Gasket | PTFE/RPTFE | 1 |
5 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 1 |
6 | Washer | PTFE/RPTFE | 1 |
7 | Bolt | SUS304 | 1 |
Ensure reliable backflow prevention with our durable threaded swing check valve. This check valve cf8m is constructed from corrosion-resistant CF8M (316 stainless steel), making it ideal for demanding chemical and process applications. Rated for 200PSI and compliant with ANSI B16.34, the valve features threaded ends for easy installation and maintenance. The internal swing mechanism minimizes pressure drop while providing quick, automatic closure to prevent reverse flow. This robust threaded swing check valve offers exceptional performance in high-cycle systems, ensuring long-lasting, leak-proof protection for your piping infrastructure.
