1/2"-8" Sanitary Clamped Butterfly Valve 3A DIN SMS ISO RJT DS

STYLE:
DIN
SMS
ISO/IDF
3A
DS
SIZE:
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
3-1/2"
4"
5"
6"
8"
DN10
DN15
DN20
DN25
DN40
DN50
DN65
DN80
DN100
DN125a
DN125b
DN150a
DN150b
DN200a
DN200b
φ32
φ45
φ48
φ57
φ108
φ114
φ133
φ159
φ168.3
φ219
Quantity:
Contact Now
add to cart
Sanitary Clamped Butterfly Valve
Standard: 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

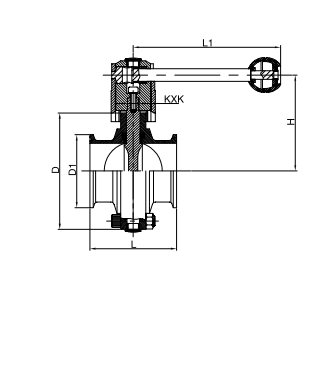

Sanitary Clamped Butterfly Valve

Clamped Butterfly Valve (DIN)

Dimensions & Sizes

Size

D1

D

L

L1

H

KXK

DN10

34

78

66

126

86

8x8

DN15

34

78

66

126

86

8x8

DN20

34

78

66

126

86

8x8

DN25

50.5

78

66

126

86

8x8

DN32

50.5

78

66

126

86

8x8

DN40

50.5

86

70

126

90

8x8

DN50

64

102

76

133

102

10x10

DN65

91

120

80

144

111

10x10

DN80

106

134

84

160

121

11x11

DN100

119

154

104

160

131

11x11

DN125a

144.5

185

122

220

146.5

11x11

DN125b

155

185

122

220

146.5

11x11

DN150a

167

215

146

220

161.5

11x11

DN150b

183

215

146

220

161.5

11x11

DN200a

217.4

285

166

284

199

14x14

DN200b

233.5

285

166

284

199

14x14

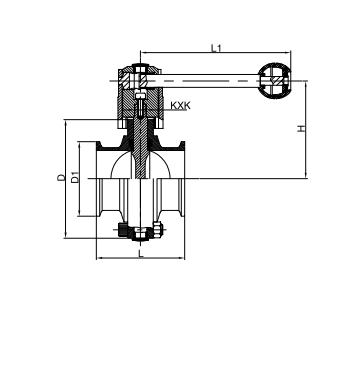

Sanitary Clamped Butterfly Valve

Clamped Butterfly Valve (3A, SMS, ISO, DS)

Dimensions & Sizes

Size

D1

D

L

L1

H

KXK

1/2"

25.4

78

66

126

86

8x8

3/4"

25.4

78

66

126

86

8x8

1"

50.5

78

66

126

86

8x8

1-1/4"

50.5

78

66

126

86

8x8

1-1/2"

50.5

86

70

126

90

8x8

DN45

64

90

74

126

92

8x8

DN48

64

95

76

126

95

8x8

2"

64

102

76

133

102

10x10

DN57

77.5

106

76

144

104

10x10

2-1/2"

77.5

115

80

144

109

10x10

3"

91

128

84

144

115

10x10

3-1/2"

106

139

86

144

123.5

11x11

4"

119

154

104

144

131

11x11

DN108

119

159

106

160

133.5

11x11

DN114

130

159

106

160

133.5

11x11

5"

1445

185

122

220

146.5

11x11

DN133

155

185

122

220

146.5

11x11

6"

167

215

146

220

161.5

11x11

DN159

183

215

146

220

161.5

11x11

DN168.3

183

215

146

220

161.5

11x11

8"

217.4

285

166.8

284

199

14x14

DN219

233.5

285

166.8

284

199

14x14
