1/2"-8" Sanitary Three-Piece Butterfly Valve 3A DIN SMS ISO RJT DS

STYLE:
DIN
SMS
ISO/IDF
RJT
3A
DS
SIZE:
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
3-1/2"
4"
5"
6"
8"
DN10
DN15
DN20
DN25
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
φ32
φ45
φ57
φ108
φ114
φ133
φ159
φ168.3
φ219
Quantity:
Contact Now
add to cart
Sanitary Three-Piece Butterfly Valve
Standard: 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

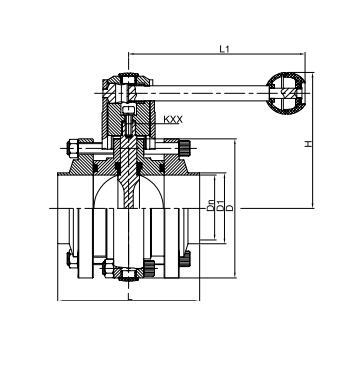

sanitary butterfly valve

Three-Piece Butterfly Valve (DIN)

Dimensions & Sizes

SIZE

  D1
      2

D

L

L1

H

t

KXK

1

2

DN10

12

13

78

100

126

86

1.5

8X8

DN15

18

19

78

100

126

86

1.5

8X8

DN20

22

23

78

100

126

86

1.5

8X8

DN25

28

29

78

100

126

86

1.5

8X8

DN32

34

35

78

100

126

86

1.5

8X8

DN40

40

41

90

100

126

92

1.5

8X8

DN50

52

53

102

104

133

102

1.5

10X10

DN65

70

一

120

112

144

111

2.0

10X10

DN80

85

一

134

120

160

121

2.0

11X11

DN100

104

一

154

128

160

131

2.0

11X11

DN125

129

一

185

160

220

146.5

2.0

11X11

DN150

154

一

215

180

220

161.5

2.0

11X11

DN200

204

一

285

180

284

199

2.0

14X14

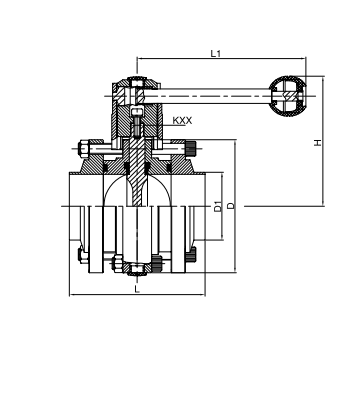

sanitary butterfly valve

Three-Piece Butterfly Valve (3A, SMS, ISO, DS)

Dimensions & Sizes

SIZE

D1

D

L

L1

H

KXK

1/2"

12.7

78

100

126

86

8X8

3/4"

19

78

100

126

86

8X8

1"

25.4

78

100

126

86

8X8

1-1/4"

31.8

78

100

126

86

8X8

1-1/2"

38.1

86

100

126

90

8X8

DN45

45

90

100

126

92

8X8

2"

50.8

102

104

133

102

10X10

DN57

57

102

104

144

104

10X10

2-1/2"

63.5

115

112

144

109

10X10

3"

76.2

128

112

144

115

10X10

3-1/2"

89

139

120

144

123.5

11X11

4"

101.6

154

128

144

131

11X11

DN108

108

159

128

160

133.5

11X11

DN114

1143

159

128

160

133.5

11X11

5"

127

185

160

220

146.5

11X11

DN133

133

185

160

220

146.5

11X11

6"

152.4

215

180

220

161.5

11X11

DN159

159

215

180

220

161.5

11X11

DN168.3

168.3

215

180

220

161.5

11X11

8"

203.2

285

180

284

199

14X14

DN219

219

285

180

284

199

14X14
