DN150 Sanitary Round Flange/Threaded Butterfly Valve DIN
STYLE:
DIN
SIZE:
DN25
DN40
DN50
DN65
DN80
DN100
DN125
DN150
φ32
Quantity:
Sanitary Round Flange/Threaded Butterfly Valve
Standard: DIN
Material Standard: EN 10088-2
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Material Standard: EN 10088-2
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

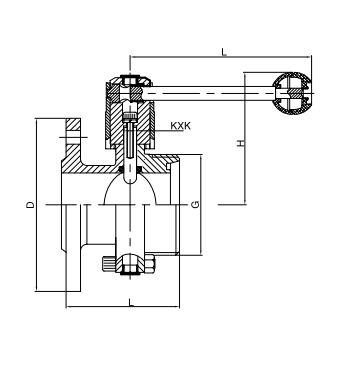

Round Flange/Threaded Butterfly Valve (DIN)
Dimensions & Sizes
SIZE | D | G(Rd) | L | L1 | H | KXK |
DN25 | 115 | RD52X1/6 | 80 | 126 | 80 | 8X8 |
DN32 | 135 | RD58X1/6 | 86 | 126 | 80 | 8X8 |
DN40 | 145 | RD65X1/6 | 92 | 126 | 86 | 8X8 |
DN50 | 160 | RD78X1/6 | 94 | 133 | 106 | 10X10 |
DN65 | 180 | RD95X1/6 | 104 | 144 | 115 | 10X10 |
DN80 | 195 | RD110X1/4 | 110 | 160 | 122 | 11X11 |
DN100 | 215 | RD130X1/4 | 130 | 160 | 132 | 11X11 |
DN125 | 245 | RD160X1/4 | 154 | 220 | 147 | 11X11 |
DN150 | 280 | RD190X1/4 | 174 | 220 | 162 | 11X11 |
