CF8M Threaded Pneumatic Angle Seat Valve
Body:
CF8
CF8M
Seat:
PTFE
Size:
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
Stem:
SS304
SS316
Quantity:
Threaded Pneumatic Angle Seat Valve
Connection Size: DN15~50
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR

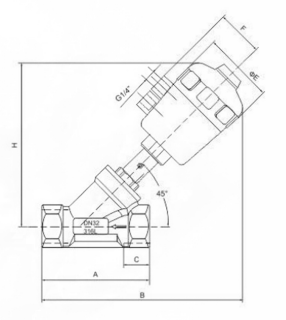

Dimensions & Sizes
Size | Actuator | F | ΦE | A | B | C | H |
DN15 | 50 | 44 | 64 | 85 | 166 | 14.2 | 135 |
DN20 | 50 | 44 | 64 | 96 | 174 | 15.5 | 138 |
DN25 | 50 | 44 | 64 | 105 | 183 | 16.8 | 146 |
DN32 | 63 | 52 | 80 | 120 | 227 | 18.5 | 185 |
DN40 | 63 | 52 | 80 | 128 | 227 | 19.1 | 188 |
DN50 | 63 | 52 | 80 | 150 | 248 | 22 | 201 |
According to Customer's Requirements. | |||||||
