DN50-200 D71X-16Q wafer butterfly valve(handle)
The opening and closing piece (butterfly disc) is driven by the valve stem and rotates around the axis of the valve stem.
Characteristics of butterfly valve
A small size, light weight;
B simple structure, quick opening and closing;
C sealing and regulating performance is good, and can achieve graded flow control;
D low flow resistance and operating torque;
E as a result of the movement of the disc with wiping sex, so most butterfly valve can be used with suspended solids media.

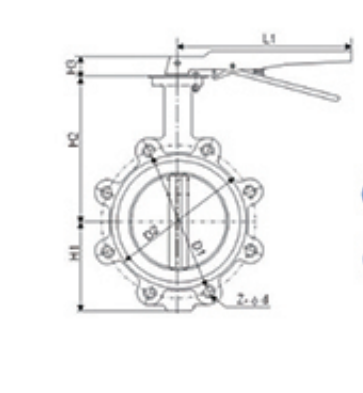

Dimensions & Sizes
DN | L | L1 | D | D1 | D2 | D3 | D4 | 中 | H1 | H2 | H3 | Z-φd | ||
1.0 | 1.6 | 1.0 | 1.6 | |||||||||||
50 | 42 | 220 | 52.9 | 125 | 125 | 92 | 77 | 57 | 12.6 | 70 | 147 | 32 | 4-φ23 | 4-φ23 |
65 | 44.7 | 220 | 64.5 | 145 | 145 | 110 | 77 | 57 | 12.6 | 76 | 155 | 32 | 4-φ23 | 4-φ23 |
80 | 45.2 | 255 | 78.8 | 160 | 160 | 121 | 77 | 57 | 12.6 | 92 | 164 | 32 | 8-φ20 | 8-φ20 |
100 | 52.1 | 255 | 104 | 180 | 180 | 153 | 92 | 70 | 15.78 | 106 | 175 | 32 | 4-φ23 | 4-φ23 |
125 | 54.4 | 290 | 123.3 | 210 | 210 | 176 | 92 | 70 | 18.92 | 119 | 194 | 32 | 4-φ23 | 4-φ23 |
150 | 55.8 | 290 | 155.6 | 240 | 240 | 207 | 92 | 70 | 18.92 | 132 | 206 | 32 | 4-φ25 | 4-φ25 |
200 | 60.6 | 340 | 202.5 | 295 | 295 | 259 | 115 | 89 | 22.10 | 162 | 237 | 45 | 4-φ25 | 4-φ25 |
Performance and specifications
Design and Manufacture | GB/T 12238 |
Face to face Dimension | GB/T 12221 |
Applicable Temperature | (X)-10~120℃. (F)-10~150℃ |
Test and Inspettion | GB/T 13927 |
Type of operation | Manual (Handle), Worm Gear, Pneumatic, Electric |
DN | DN40~1000 |
PN | PN10~16 |
Product Model | D71XF D371XF D671XF D971XF |
Main Materials | HT250、QT450-10 |
This manual handle operated butterfly valve provides reliable flow control for general industrial applications. The compact handle wafer butterfly valve design features a wafer-style body for easy installation between pipe flanges. Rated for 16Q pressure class, this durable handle operated butterfly valve ensures smooth operation and positive shut-off across DN50 to DN200 sizes. The ergonomic handle of this handle wafer butterfly valve allows for precise flow regulation and visual position indication. Ideal for HVAC, water treatment, and industrial piping systems, this cost-effective handle operated butterfly valve offers excellent performance where manual control and space-saving design are essential requirements. The robust construction guarantees long service life with minimal maintenance needs.
