CF8M DN20 Clamp flange ball valve
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Face to face: ANSI B16.10, DIN3202 F1,F4/F5, GB/T 12221, JIS B2002
END: ANSI B16.5, DIN 2632/2633&DIN 2634/2635, JB/T 79, JIS B2212
Fire testing: API6074th Edition, BS5351
Mounting pad: ISO 5211
Marking system for valves: MSS SP-25
Material Certification: EN 10204 / DIN 50.049-3.1B
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Product Overview
CF8M DN20 Clamp Flange Ball Valve Stainless Steel Sanitary Grade
The CF8M DN20 Clamp Flange Ball Valve is a high-quality industrial flow control component manufactured to meet stringent international standards. Designed for critical applications across various industries, this valve offers exceptional performance, reliability, and longevity.
Our stainless steel ball valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each valve undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.
Key Features
- Premium Quality Materials: Manufactured from certified CF8M stainless steel ensuring excellent corrosion resistance and durability
- Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
- Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
- Industry Compliance: Fully compliant with sanitary standards including 3A, FDA, and international standards
- Versatile Applications: Suitable for pharmaceutical, food & beverage, biotechnology, and other sanitary applications
- Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
- Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
- Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

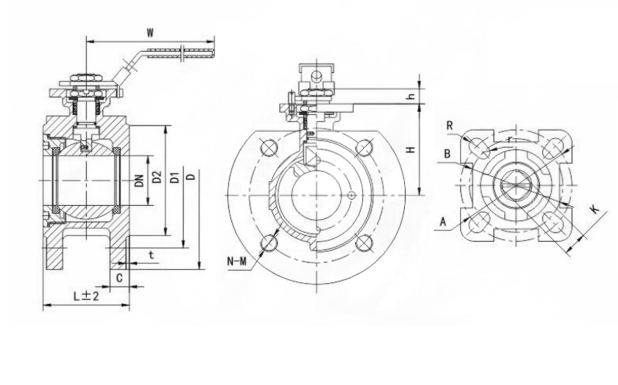

Dimensions & Sizes
Dimensions & Sizes
DIN 2542 (PN16)
Size | DN | L | D | D1 | D2 | t | C | N-M | H | W | A | B | R | r | K | h |
DN15 | 15 | 35 | 95 | 65 | 45 | 2 | 14 | 4-M12 | 76 | 110 | 42 | 36 | 3 | 3 | 9 | 9 |
DN20 | 20 | 39 | 105 | 75 | 58 | 2 | 16 | 4-M12 | 71 | 110 | 42 | 36 | 3 | 3 | 9 | 9 |
DN25 | 25 | 44 | 115 | 85 | 68 | 2 | 16 | 4-M12 | 90 | 160 | 50 | 42 | 3.5 | 3 | 11 | 11 |
DN32 | 32 | 52 | 140 | 100 | 78 | 2 | 16 | 4-M16 | 102 | 160 | 50 | 42 | 3.5 | 3 | 11 | 11 |
DN40 | 38 | 64 | 150 | 110 | 88 | 3 | 16 | 4-M16 | 115 | 185 | 70 | 50 | 4.5 | 3.5 | 14 | 14 |
DN50 | 50 | 83 | 165 | 125 | 102 | 3 | 18 | 4-M16 | 122 | 185 | 70 | 50 | 4.5 | 3.5 | 14 | 14 |
DN65 | 65 | 105 | 185 | 145 | 122 | 3 | 18 | 4-M16 | 168 | 305 | 70 | 50 | 4.5 | 3.5 | 14 | 14 |
DN80 | 76 | 121 | 200 | 160 | 138 | 3 | 20 | 8-M16 | 178 | 305 | 102 | 70 | 5.5 | 4.5 | 17 | 17 |
DN100 | 96 | 152 | 220 | 180 | 158 | 3 | 20 | 8-M16 | 198 | 305 | 102 | 70 | 5.5 | 4.5 | 17 | 17 |
DIN 2542 (PN16) | ||||||||||||||||

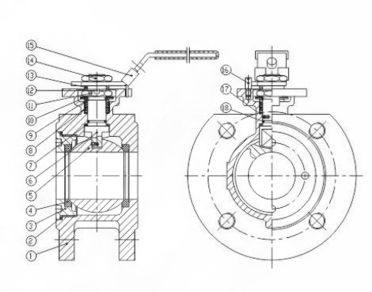

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Gasket | PTFE/RPTFE | 1 |
3 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 1 |
4 | Seat | PTFE/RPTFE/PPL/PEEK | 2 |
5 | Ball | SUS304/SUS316 | 1 |
6 | Stem | SUS304/SUS316 | 1 |
7 | Stem Washer | PTFE/RPTFE | 1 |
8 | V-Ring Packing | PTFE/RPTFE | * |
9 | Gland | SUS304 | 1 |
10 | Belleville Wacher | SUS301 | 2 |
11 | Stem Nut | SUS304 | 1 |
12 | Stop Lock Cap | SUS304 | 1 |
13 | Washer | SUS304 | 1 |
14 | Nut | SUS304 | 1 |
15 | Handle | SUS304 | 1 |
16 | Stop Bolt | SUS304 | 1 |
17 | Anti Static Device | SUS304 | 2 |
18 | O-Ring | SUS304 | 1 |

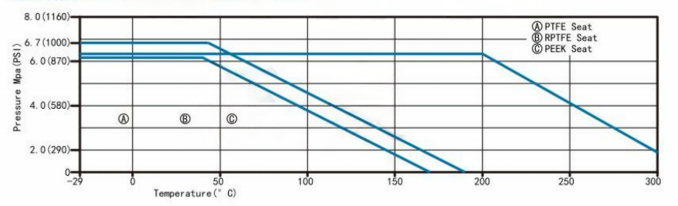

PRESSURE TEMPERATURE CURVE
This valve is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.
Available Sizes: Wide range from DN10 to DN150 Pressure Ratings: Multiple pressure classes available for sanitary applications Connection Types: Tri-clamp, ferrule, and other sanitary connectionsFor detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (DIN, SMS, ISO, 3A, etc.).
Applications
This valve is ideal for use in:
- Pharmaceutical: Clean-in-place (CIP) systems, sterile processing
- Food & Beverage: Dairy, brewing, beverage production, hygienic piping systems
- Biotechnology: Bioreactors, sterile transfer systems
- Chemical Processing: Clean chemical applications
- Cosmetics: Production and filling lines
- Water Treatment: Purified water and WFI systems
- Dairy Industry: Milk processing, cheese production
- General Industry: Sanitary applications requiring easy cleaning
Quality Assurance
We maintain the highest standards of quality control throughout the manufacturing process:
- ISO 9001:2015 certified manufacturing facility
- 100% material traceability with heat number tracking
- Comprehensive testing including chemical analysis, mechanical testing, and non-destructive examination
- Third-party inspection available (TPI, LPI, SGS, BV, etc.)
- Complete documentation package including MTC 3.1, test certificates, and dimension reports
Why Choose Our Ball Valves?
With decades of experience in manufacturing industrial valve components, we have established ourselves as a trusted supplier of high-quality ball valves worldwide. Our commitment to excellence is reflected in:
- Technical Expertise: Experienced engineering team providing technical support and custom solutions
- Manufacturing Excellence: State-of-the-art facilities with advanced CNC machining and testing equipment
- Quality Focus: Rigorous quality control at every stage from raw material to finished product
- Customer Service: Responsive support team ensuring smooth order processing and after-sales service
- Competitive Pricing: Direct manufacturer pricing with no intermediary markups
- On-Time Delivery: Efficient production planning and reliable logistics partnerships
