CF8M Female Gate valve 200PSI ANSI B16.34
Body:
CF8
CF8M
CF3
CF3M
WCB
Seat:
PTFE
RPTFE
PPL
PEEK
Size:
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
2-1/2"(DN65)
3"(DN80)
Quantity:
Female Gate valve
Standard: ANSI B16.34
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

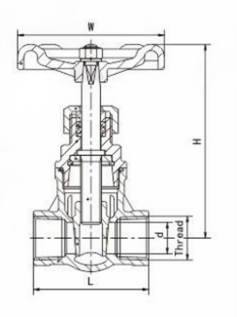

Dimensions & Sizes
Size | d | L | W | H | |
1/2" | DN15 | 15 | 55 | 70 | 94 |
3/4" | DN20 | 20 | 60 | 70 | 103 |
1" | DN25 | 25 | 65 | 85 | 115 |
1-1/4" | DN32 | 32 | 75 | 100 | 136 |
1-1/2" | DN40 | 40 | 85 | 100 | 154 |
2" | DN50 | 50 | 95 | 100 | 175 |
2-1/2" | DN65 | 65 | 108 | 120 | 218 |
3" | DN80 | 80 | 118 | 140 | 239 |

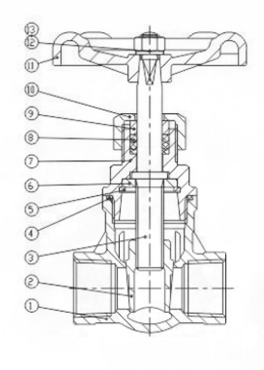

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Disc | SUS304/SUS316 | 1 |
3 | Stem | SUS304/SUS316 | 1 |
4 | Gasket | PTFE/RPTFE | 1 |
5 | Ring | SUS304/SUS306 | 1 |
6 | Washer | SUS304/SUS316 | 1 |
7 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 1 |
8 | Packing | PTFE/RPTFE | 1 |
9 | Gland | SUS304 | 1 |
10 | Gland Nut | SUS304 | 1 |
11 | Handwheel | ZL101 | 1 |
12 | Washer | SUS304 | 1 |
13 | Nut | SUS304 | 1 |
