CF8M Welded Pneumatic Angle Seat Valve
Body:
CF8
CF8M
Seat:
PTFE
Size:
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
Stem:
SS304
SS316
Quantity:
Welded Pneumatic Angle Seat Valve
Connection Size: DN15~50
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR

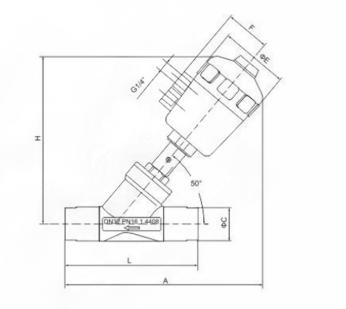

Dimensions & Sizes
Size | Actuator | F | ΦE | A | B | C | H |
DN15 | 50 | 44 | 64 | 170 | 120 | 20 | 140 |
DN20 | 50 | 44 | 64 | 180 | 130 | 25 | 147 |
DN25 | 50 | 44 | 64 | 190 | 140 | 30 | 155 |
DN32 | 63 | 52 | 80 | 230 | 150 | 38 | 196 |
DN40 | 63 | 52 | 80 | 245 | 180 | 46 | 201 |
DN50 | 63 | 52 | 80 | 260 | 195 | 55 | 215 |
According to Customer's Requirements. | |||||||
