CF8M Quick-Install Pneumatic Angle Seat Valve

Body:
CF8
CF8M
Seat:
PTFE
Size:
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
Stem:
SS304
SS316
Quantity:
Contact Now
add to cart
Quick-Install Pneumatic Angle Seat Valve
Connection Size: DN15~50
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR

pneumatic angle seat valve

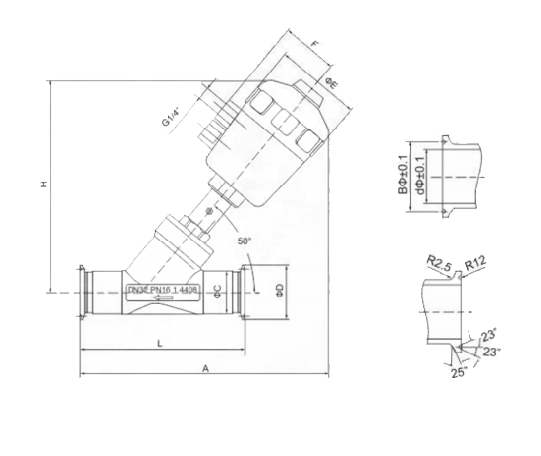

Dimensions & Sizes

Size

Actuator

ΦE

F

A

L

H

ΦC

ΦB

Φd

ΦD

DN15

50

64

44

177

132

140

21.2

43.5

15

50.5

DN20

50

64

44

181

132

147

25.7

43.5

21

50.5

DN25

50

64

44

190

143

155

31.4

43.5

27

50.5

DN32

63

80

52

229

152

196

39.3

43.5

31

50.5

DN40

63

80

52

245

182

201

47.6

56.5

33

64

DN50

63

80

52

263

200

215

56.2

56.5

45

64

Clamp Specification:ISO 2852-1993;According to Customer's Requirements.

Enhance your fluid control efficiency with our pneumatic angle seat valve. Designed for a true quick install experience, this valve features a streamlined design that minimizes assembly time and effort. The pneumatic angle seat valve is constructed from durable CF8M (316 stainless steel), offering superior corrosion resistance for demanding applications involving water, steam, and aggressive media. Its high-flow design ensures minimal pressure drop, making it ideal for high-cycle processes. This quick install valve guarantees reliable, leak-proof performance and is built for long-term durability in automated industrial systems.
