DN15-400 Y Strainer 150# Stainless Steel

Pressure Ratings:
150 lbs
Material：:
304
304L
316
316L
DN:
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
:
DN15-400 Y Strainer 150# Stainless Steel
Specifications
Nominal pressure:Class150/300
Strength Test pressure: PT1.5PN
Applicable medium: SY41-(150-300Lb) C Water, oil, gas
Applicable temperature:-29~180°C
Applicable medium: SY41-(150-300Lb) P Nitric acid, SY41-(150-300Lb) R Acetic acid
Applicable temperature: -40~180°C

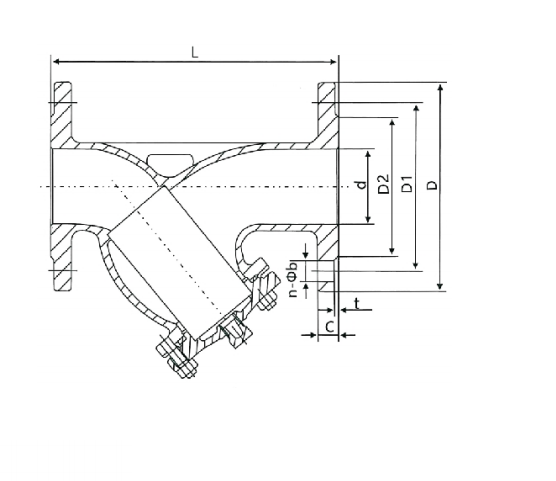

cast iron y strainer

Materials of main parts

Parts name

SY41-(16-64)C

SY41-(16-64)P

SY41-(16-64)R

Body

WCB

ZG1Cr18Ni9Ti CF8

ZG1Cr18Ni.
12Mo2Ti CF8M

Bonnet

WCB

ZG1Cr18Ni9Ti CF8

ZG1Cr18Ni
12Mo2Ti CF8M

Mesh

1Cr18Ni9Ti 304

1Cr18Ni9Ti 304

1Cr18Ni
12Mo2Ti 316

Gasket

Polytetrafluoroethylene (PTFE)/Stainless steel and graphite spiral wounf



Main dimensions and connection dimensions

Size

d

D

D1

D2

t

C

n-φb

L

DN15

15

90

60.3

34.9

1.6

11.5

4-φ16

130

DN20

20

100

69.9

42.9

1.6

13

4-φ16

140

DN25

25

110

79.4

50.8

1.6

14.5

4-φ16

150

DN32

32

115

88.9

63.5

1.6

16

4-φ16

170

DN40

38

125

98.4

73

1.6

17.5

4-φ16

200

DN50

50

150

120.7

92.1

1.6

19.5

4-φ19

220

DN65

64

180

139.7

104.8

1.6

22.5

4-φ19

252

DN80

76

190

152.4

127

1.6

24

4-φ19

280

DN100

100

230

190.5

157.2

1.6

24

8-φ19

320

DN125

125

255

215.9

185.7

1.6

24

8-φ22

350

DN150

150

280

241.3

215.9

1.6

26

8-φ22

400

DN200

200

345

298.5

269.9

1.6

29

8-φ22

480

DN250

250

405

362

323.8

1.6

31

12-φ25

550

DN300

300

485

431.8

381

1.6

32

12-φ25

610

DN350

350

535

476.3

412.8

1.6

35.5

12-φ29

680

DN400

400

595

539.8

469.9

1.6

37

16-φ29

780
