2”Welded Y-type Strainer DIN SMS IDF RJT 3A

STYLE:

DIN

INCH

SIZE:

1"

1-1/2"

2"

2-1/2"

3"

4"

DN25

DN40

DN50

DN65

DN80

DN100

φ32

Quantity:

Contact Now

add to cart

Welded Y-type Strainer

Standard: 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

CF8M Y-Type Female Filter 800PSI ANSI B16.34

The CF8M Y-Type Female Filter 800PSI ANSI B16.34 is a premium-quality industrial valve component engineered to meet the most demanding requirements in modern piping systems. Manufactured with precision and built to international standards, this valve delivers exceptional performance, reliability, and longevity across diverse industrial applications.

Our valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each unit undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards including ANSI B16.34.

Designed for critical applications in industries such as oil & gas, chemical processing, pharmaceuticals, food & beverage, and water treatment, this valve offers superior corrosion resistance, excellent sealing performance, and maintenance-free operation over extended service life.

Key Features

Premium Quality Materials: Manufactured from certified CF8M Stainless Steel (ASTM A351) ensuring excellent corrosion resistance and durability in harsh environments
Precision Engineering: CNC machined to exact specifications with tight tolerances meeting ANSI B16.34 standards
Comprehensive Size Range: Available in multiple sizes from DN15-DN600 to accommodate various piping applications
Superior Sealing Performance: Advanced sealing design ensures leak-tight performance and long service life
Industry Compliance: Fully compliant with ASME, EN, DIN, JIS, and other international standards
Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, pharmaceutical, and food & beverage industries
Quality Assurance: 100% inspection and testing with comprehensive documentation and material traceability
Customization Available: Custom manufacturing services available for special requirements and non-standard specifications
Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery
Technical Support: Expert engineering team providing technical consultation and application support

Welded Y-type Strainer(DIN)

Dimensions & Sizes

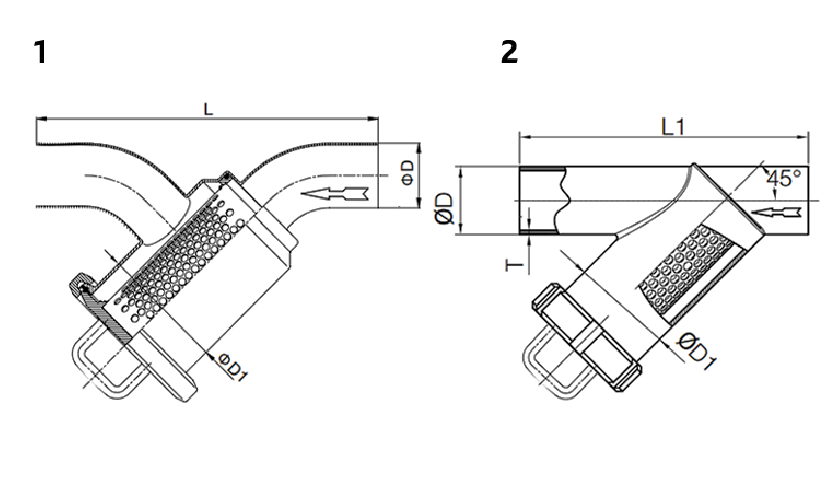

y strainer

DN	D	D1	L	L1
25	28	76.2	235	125
32	34	76.2	240	140
40	40	101.6	260	165
50	52	101.6	280	195
65	70	114.3	320	30
80	85	114.3	375	280
100	104	154	400	340

Welded Y-type Strainer(INCHES)

Dimensions & Sizes

Size	D	D1	L	L1
1"	25	762	213	123
1-1/2"	28	1016	242	144
2"	51	1143	300	195
2-1/2"	63	1143	348	210
3"	76	154	378	240
4"	102	154	468	340

Quality Assurance

We maintain the highest standards of quality control throughout the manufacturing process:

Certification & Compliance

ISO 9001:2015 certified manufacturing facility
CE marked products (where applicable)
PED 2014/68/EU compliance (pressure equipment)
API 6D certification (for applicable valves)
Fire-safe certification API 607 (for specific models)

Material Traceability

100% material traceability with heat number tracking
Material Test Certificates (MTC) 3.1 per EN 10204
Chemical composition analysis
Mechanical property testing

Testing & Inspection

Hydrostatic pressure testing per ASME/EN standards
Pneumatic testing (when specified)
Shell and seat leakage testing
Non-destructive examination (NDE):
- Radiographic testing (RT)
- Ultrasonic testing (UT)
- Magnetic particle testing (MT)
- Liquid penetrant testing (PT)

Third-Party Inspection

Third-party inspection available (TPI, LPI)
Certification by SGS, BV, TÜV, Lloyd’s Register
Witness testing and inspection services
Complete documentation package provided

Documentation Package

Material Test Certificates (MTC 3.1)
Pressure test certificates
Dimensional inspection reports
Operation and maintenance manuals
Compliance certifications
Warranty certificates

Installation & Maintenance

Installation Guidelines

Pre-Installation Checks:

Verify valve specifications match system requirements
Inspect valve for transportation damage
Check flange faces for cleanliness
Ensure proper gasket selection

Installation Procedure:

Install valve in correct flow direction (check arrow marking)
Use appropriate gaskets and bolting materials
Tighten flange bolts in cross pattern
Follow recommended torque specifications
Ensure proper support to prevent pipe stress

Maintenance Recommendations

Routine Maintenance:

Regular visual inspection for leaks or damage
Check operation of actuators (if applicable)
Verify proper seating and sealing performance
Lubricate components as per manufacturer guidelines

Preventive Maintenance:

Scheduled inspection per plant maintenance program
Cleaning and servicing of sealing components
Replacement of wear parts as needed
Documentation of maintenance activities

Spare Parts Availability:
We maintain comprehensive spare parts inventory for quick delivery, including:

Sealing elements
Stem components
Actuator parts
Gasket kits
Complete trim assemblies

FAQ

1. What materials are available for this valve?

Our valves are manufactured from high-quality materials including CF8M Stainless Steel (ASTM A351), CF8, CF8M, CF3, CF3M, and other special alloys according to customer requirements and international standards. Material certificates are provided with each order.

2. What international standards does this valve comply with?

This valve is manufactured in compliance with major international standards including ANSI B16.34. We can also manufacture to customer-specific standards and requirements. Third-party inspection certificates are available upon request.

3. What is the typical delivery time?

Standard configurations are typically available from stock with 3-7 days delivery for most regions. Custom orders require 15-30 days depending on specifications, quantity, and required certifications. Rush orders can be accommodated with additional coordination.

4. Can you provide custom specifications?

Yes, we offer comprehensive custom manufacturing services. We can produce valves according to your specific drawings, requirements, and performance criteria. Our experienced engineering team can also assist with design optimization and material selection for your specific application.
