CF8M Flange Pneumatic Angle Seat Valve
Body:
CF8
CF8M
Seat:
PTFE
Size:
1/2"(DN15)
3/4"(DN20)
1"(DN25)
1-1/4"(DN32)
1-1/2"(DN40)
2"(DN50)
Stem:
SS304
SS316
Quantity:
Flange Pneumatic Angle Seat Valve
Connection Size: DN15~50
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR
Thread: 1/2”-2”
Applicable Medium: Water,Neutral Gas or Liquid,Alcohol,Oil,Organic Solvent,Steam,Lye and Weak Acid Solution.
Temperature of Medium:-10℃~+180℃
Environmental Temperature:-10℃~+80℃
Nominal Pressure: 1.6MPa, 2.5MPa
Controlling Medium: Neutral Gas, Air.
Controlling Pressure: 0.3~0.8MPa
Body Material: CF8/CF8M
Seat Material: PTFE
Stem Material: SS304/SS316
Seal Material: NBR

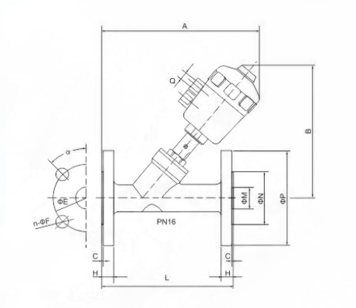

Dimensions & Sizes
Size | Actuator | Q | A | B | L | C | H | ΦE | ΦF | ΦM | ΦN | ΦP | α |
DN15 | 50 | 1/4” | 145 | 140 | 150/130 | 2 | 14 | 65 | 4-Φ14 | 16 | 45 | 95 | 45° |
DN20 | 50 | 1/4” | 165 | 140 | 160/150 | 2 | 14 | 75 | 4-Φ14 | 19 | 56 | 105 | 45° |
DN25 | 50 | 1/4" | 170 | 145 | 160 | 2 | 14 | 85 | 4-Φ14 | 26 | 65 | 115 | 45° |
63 | 1/4" | 190 | 175 | ||||||||||
DN32 | 63 | 1/4" | 192 | 188 | 198/180 | 2 | 16 | 100 | 4-Φ18 | 31 | 78 | 140 | 45° |
90 | 1/4" | 230 | 235 | ||||||||||
DN40 | 63 | 1/4" | 206 | 190 | 200 | 3 | 16 | 110 | 4-Φ18 | 38 | 84 | 150 | 45° |
90 | 1/4" | 250 | 240 | ||||||||||
DN50 | 63 | 1/4" | 235 | 195 | 230 | 3 | 16 | 125 | 4-Φ18 | 49 | 100 | 165 | 45° |
90 | 1/4" | 277 | 245 | ||||||||||
Flange Specification:DIN2576(JB/T82.1); ISO/JIS is Also Available. | |||||||||||||
