CF8M 4-way ball valve ANSI B16.34
Threads Standard: ANSI B1.20.1, BS21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Product Overview
CF8M 4-way Ball Valve ANSI B16.34 Stainless Steel Industrial Grade
The CF8M 4-way Ball Valve ANSI B16.34 is a high-quality industrial flow control component manufactured to meet stringent international standards. Designed for critical applications across various industries, this valve offers exceptional performance, reliability, and longevity.
Our stainless steel ball valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each valve undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.
Key Features
- Premium Quality Materials: Manufactured from certified CF8M stainless steel ensuring excellent corrosion resistance and durability
- Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
- Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
- Industry Compliance: Fully compliant with ANSI B16.34 and other international standards
- Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other industrial applications
- Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
- Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
- Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery
Dimensions & Sizes

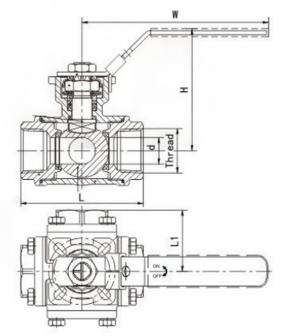

Dimensions & Sizes
Size | d | L | L1 | H | W | |
1/2" | DN15 | 16 | 96 | 46 | 89 | 160 |
3/4" | DN20 | 20 | 110 | 55 | 98 | 160 |
1" | DN25 | 25 | 126 | 63 | 103 | 190 |
1-1/4" | DN32 | 32 | 135 | 67.5 | 118.5 | 190 |
1-1/2" | DN40 | 38 | 152 | 76 | 127 | 230 |
2" | DN50 | 50 | 166 | 83 | 139 | 230 |
2-1/2" | DN65 | 65 | 175 | 87.5 | 166 | 230 |
3" | DN80 | 80 | 208 | 104 | 170 | 300 |
4" | DN100 | 100 | 286 | 143 | 310 | 300 |

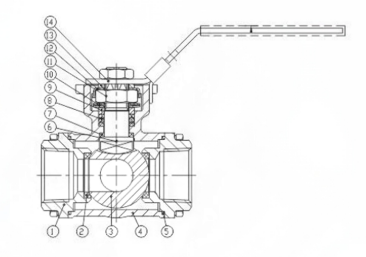

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Seat | PTFE/RPTFE/PPL/PEEK | 4 |
3 | Ball | SUS304/SUS316 | 1 |
4 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
5 | Gasket | PTFE/RPTFE | 3 |
6 | Stem | SUS304/SUS316 | 1 |
7 | Stem Washer | PTFE/RPTFE | 1 |
8 | V-Ring Packing | PTFE/RPTFE | * |
9 | Gland | SUS304 | 1 |
10 | Belleville Washer | SUS301 | 2 |
11 | Stem Nut | SUS304 | 2 |
12 | Stop Lock Cap | SUS304 | 1 |
13 | Washer | SUS304 | 1 |
14 | Handle | SUS304 | 1 |

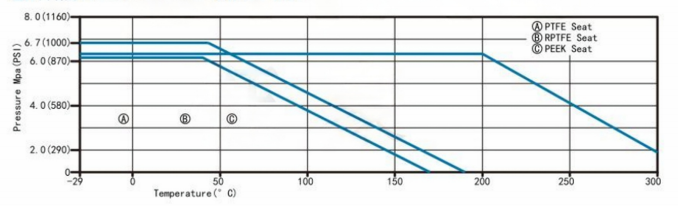

PRESSURE TEMPERATURE CURVE
MEDIUM FLOW DIRECTION
This valve is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.
Available Sizes: Wide range from small bore to large diameter Pressure Ratings: Multiple pressure classes available (150#, 300#, 600#, 900#, 1500#, 2500#) Connection Types: Suitable for threaded, flanged, or welded connectionsFor detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ANSI, ASME, DIN, JIS, etc.).
