CF8M 1/2"3-PC 1000PSI Ball Valve ANSI B16.34 Stainless Steel

The CF8M 1/2"3-PC 1000PSI Ball Valve ANSI B16.34 is a high-quality industrial flow control component manufactured to meet stringent international standards. Designed for critical high-pressure applications across various industries, this valve offers exceptional performance, reliability, and longevity.

Our stainless steel ball valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each valve undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.

This 3pc ball valve delivers exceptional performance in demanding industrial applications. Engineered with a practical three-piece design, this robust 3pc ball valve facilitates easy maintenance and inspection without requiring pipeline disassembly. Manufactured from corrosion-resistant CF8M (316 stainless steel), the valve ensures reliable service in chemical, petrochemical, and process industries. Rated for 1000PSI operation and compliant with ANSI B16.34 standards, this durable 3pc ball valve maintains bubble-tight sealing across various media and temperature conditions. The full-bore design minimizes pressure drop while providing superior flow control. This versatile 3pc ball valve offers outstanding durability and is ideal for applications requiring frequent maintenance and reliable high-pressure performance.

Key Features

  • Premium Quality Materials: Manufactured from certified CF8M stainless steel ensuring excellent corrosion resistance and durability
  • Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
  • Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
  • Industry Compliance: Fully compliant with ANSI B16.34 and other international high-pressure standards
  • Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other high-pressure industrial applications
  • Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
  • Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
  • Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

Dimensions & Sizes

1.

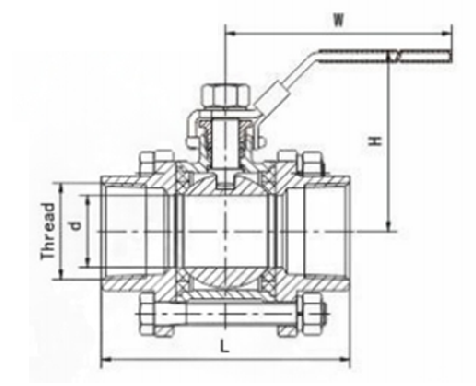

3pc ball valve

Dimensions & Sizes

Size

d

L

H

W

Nm

Cv

1/2"

15

75

52

110

4

3.5

3/4"

20

80

63

120

4

7.2

1"

25

90

67

130

8

12.3

1-1/4"

32

110

80

140

12

20.1

1-1/2"

38

120

93

175

21

28.3

 2"

49

140

110

175

26

47.1

  2-1/2"

64

185

117

220

43

75.4

3"

76

205

134

270

68

108

4"

100

240

157

310

87

197

2.

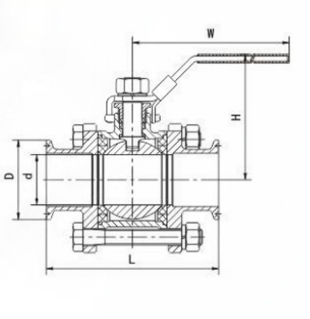

3pc ball valve

Dimensions & Sizes

Size

d

L

H

W

SW

t

Nm

Cv

1/2"

15

75

52

110

22.2

9.5

4

3.5

3/4"

20

80

63

120

27.6

  12.5

4

7.2

1"

25

90

67

130

34.3

  12.5

8

12.3

1-1/4"

32

110

80

140

43.1

  12.5

12

20.1

1-1/2"

38

120

93

175

49.2

  12.5

21

28.3

 2"

49

140

110

175

61.7

16

26

47.1

2-1/2"

64

185

117

220

74.4

16

43

75.4

3"

76

205

134

270

90.3

16

68

108

4"

100

240

157

310

115.7

19

87

197

3.

3pc ball valve

Dimensions & Sizes

Size

d

L

BW

H

W

Nm

Cv

1/2"

15

75

21.6

52

110

4

3.5

3/4"

20

80

27.2

63

120

4

7.2

1"

25

90

34

67

130

8

12.3

1-1/4"

32

110

42.8

80

140

12

20.1

1-1/2"

38

120

48.6

93

175

21

28.3

2"

49

140

60.5

110

175

26

47.1

2-1/2"

64

185

76.3

117

220

43

75.4

3"

76

205

90

134

270

68

108

4"

100

240

114.3

157

310

87

197

4.

3pc ball valve

Dimensions & Sizes

Size

d

L

D

H

W

Nm

Cv

1/2"

15

75

50.5

52

110

4

3.5

3/4"

20

80

50.5

63

120

4

7.2

1"

25

90

50.5

67

130

8

12.3

1-1/4"

32

110

50.5

80

140

12

20.1

1-1/2"

38

120

50.5

93

175

21

28.3

2”

49

140

64

110

175

26

47.1

2-1/2"

64

185

77.5

117

220

43

75.4

3”

76

205

91

134

270

68

108

4”

100

240

119

157

310

87

197

5

3pc ball valve.

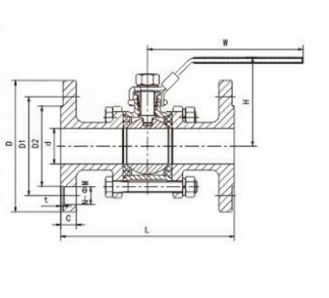

Dimensions & Sizes

SizedLDD1D2tCN-φMHWNmCv
DN15151309565452164-φ145211043.5
DN2020 150 105 75 58 2 18 4-φ1463 120 4 7.2
DN2525 160 115 85 68 2 18 4-φ1467 130 8 12.3
DN3232 180 140 100 78 2 18 4-φ1880 140 12 20.1
DN4038 200 150 110 88 3 18 4-φ1893 175 21 28.3
DN5049 230 165 125 102 3 20 4-φ18110 175 26 47.1
DN6564 290 185 145 122 3 20 4-φ18117 220 43 75.4
DN8076 310 200 160 138 3 20 4-φ18134 270 68 108
DN100100 350 220 180 158 3 20 4-φ18157 310 87 197

6.

3pc ball valve

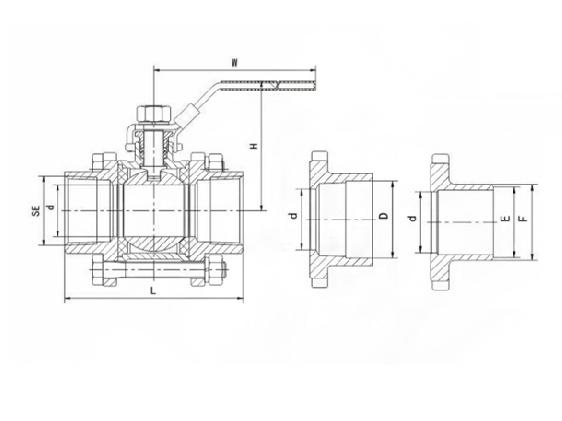

Dimensions & Sizes

SizedLHWDEFWTTorqer(N-m)
(SE)(SW)(BW)DIN-3239ANSI B16,H966DIN-3239ANSI 14.5Break awayOperating
1/4" 8 1163.66564.749.21031414.221315 18.40.464.42.7
3/8" 10 12.5 63.6 65 64.7 49.2 103 18 17.52 13 19.5 18.4 0.44 4.4 2.7
1/2" 15 15 73.1 75.8 74.4 53.9 103 22 21.71 17 24.5 22.3 0.60 4.9 2.9
3/4" 20 20 85.9 87.1 85.2 63.3 109 27.5 27.05 22 30.5 28.4 0.89 7.8 3.9
1" 25 25 97.8 99.5 97.8 78.2 145 34.5 33.78 28 39 34.2 1.32 15.7 7.7
1-1/4" 32 32 120.1 122.8 121.4 82.3 145 43 42.54 37 46 43.8 2.15 21.6 8.8
1-1/2" 40 38 1,336135.6 134.2 93.0 180 49 48.64 43 58 49.9 3.0 34.3 15.7
 2" 50 50 155.4 154.4 152.6 98.7 180 61.5 61.11 54 一62.1 4.9 47.1 18.6
  2-1/2" 65 65 186.5 186.5 186.5 130 230 77 73.81 72 一76.1 8.9 66.7 29.4
  3" 80 80 221.2 221.2 221.2 142.1 300 84 90.01 84 一88.9 15.2 82.4 41.2
  4"100 100 241 241 241 165.5 400 109 一109 一114.3 23.9 161.8 63.7

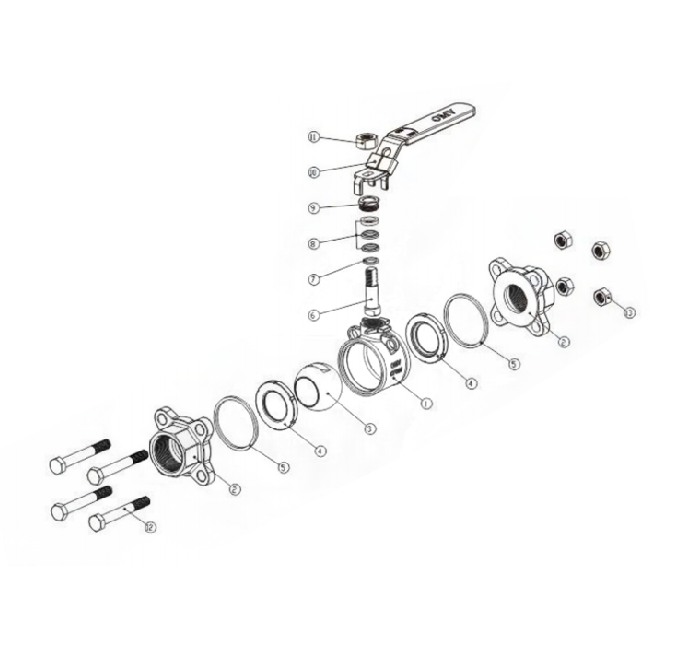

3pc ball valve

MATERIALS LIST

NO.

PART NAME

MATERIAL

QTY

 1

Body

A351 CF8   A351 CF8M   A216 WCB

1

2

Bonnet

A351 CF8   A351 CF8M    A216 WCB

2

3

Ball

SUS304/SUS316

1

4

Seat

PTFE/RPTFE/PPL/PEEK

2

5

Gasket

PTFE/RPTFE

2

6

Stem

SUS304/SUS316

1

7

Stem Washer

PTFE/RPTFE

1

8

V-Ring Packing

PTFE/RPTFE

*

9

Gland

SUS304

1

10

Handle

SUS304

1

11

Stem Nut

SUS304

1

12

Bolt

SUS304

*

13

Nut

SUS304

*

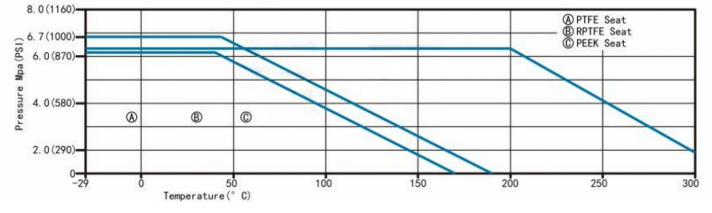

PRESSURE TEMPERATURE CURVE

3pc ball valve

This valve is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.

Available Sizes: Wide range from 1/4"to 4"in high-pressure configurations Pressure Ratings: 1000PSI, 2000PSI, 3000PSI, and higher pressure classes available Connection Types: Threaded, socket weld, butt weld connections

For detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ANSI, ASME, DIN, JIS, etc.).
