CF8M 1/2" 3-PC 1000PSI high platform ball valve ANSI B16.34
Threads Standard: ANSI B1.20.1, BS 21, DIN 2999, ISO 228-1, JIS B0203, ISO 7-1
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
1.
Product Overview
CF8M 1/2"3-PC 1000PSI High Platform Ball Valve ANSI B16.34 Stainless Steel
The CF8M 1/2"3-PC 1000PSI High Platform Ball Valve ANSI B16.34 is a high-quality industrial flow control component manufactured to meet stringent international standards. Designed for critical high-pressure applications across various industries, this valve offers exceptional performance, reliability, and longevity.
Our stainless steel ball valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each valve undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.
Engineered for superior performance, this 3pc ball valve delivers reliable service in demanding applications. The 1000psi ball valve features a high-platform design for effortless actuator mounting, while its three-piece construction enables easy maintenance without pipeline disassembly. Manufactured from corrosion-resistant CF8M stainless steel, this durable 3pc ball valve ensures excellent chemical resistance in chemical, pharmaceutical, and industrial processing systems. Compliant with ANSI B16.34 standards, the 1000psi ball valve maintains bubble-tight sealing under medium to high-pressure conditions. The advanced design of this 3pc ball valve provides optimal flow control with minimal pressure drop, making this 1000psi ball valve ideal for systems requiring frequent maintenance and reliable high-pressure performance.
Key Features
- Premium Quality Materials: Manufactured from certified CF8M stainless steel ensuring excellent corrosion resistance and durability
- Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
- Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
- Industry Compliance: Fully compliant with ANSI B16.34 and other international high-pressure standards
- Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other high-pressure industrial applications
- Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
- Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
- Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

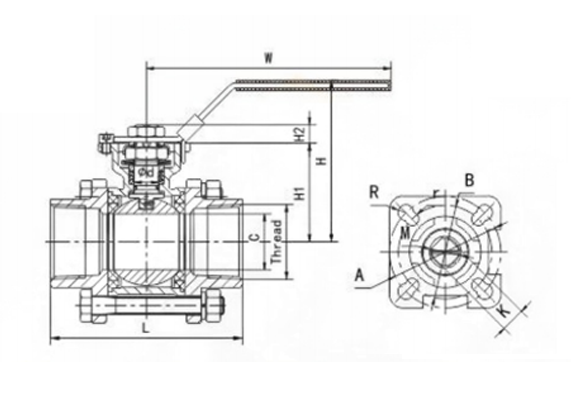

Dimensions & Sizes
Dimensions & Sizes
Size | C | L | H | H1 | H2 | W | d | A | B | R | r | K | Nm | Cv | ISO5211 | |
1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
2.

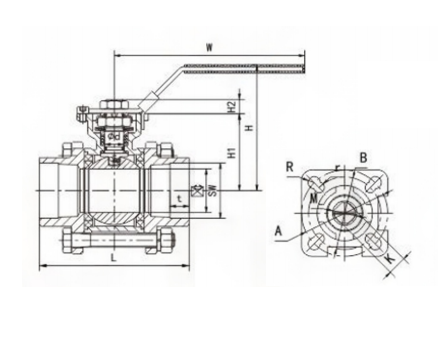

Dimensions & Sizes
Size | C | L | H | H1 | H2 | W | SW | t | d | A | B | R | r | K | Nm | Cv | ISO5211 | |
1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 22.2 | 9.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 27.6 | 12.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 34.3 | 12.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 43.1 | 12.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 49.2 | 12.5 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 61.7 | 16 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 74.4 | 16 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 90.3 | 16 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 115.7 | 19 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
3.

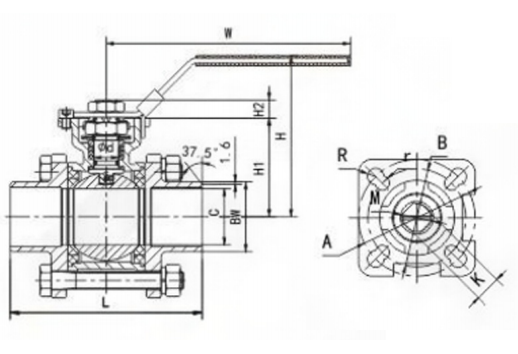

Dimensions & Sizes
Size | C | L | H | H1 | H2 | W | BW | d | A | B | R | r | K | Nm | Cv | ISO5211 | |
1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 21.6 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 27.2 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 34 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 42.8 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 48.6 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 60.5 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 76.3 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 90 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 114.3 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
4.

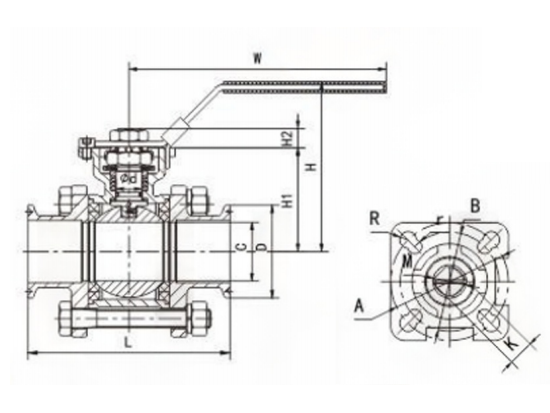

Dimensions & Sizes
Size | C | L | H | H1 | H2 | W | D | d | A | B | R | r | K | Nm | Cv | ISO5211 | |
1/2" | DN15 | 15 | 75 | 77 | 40.5 | 9 | 110 | 50.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
3/4" | DN20 | 20 | 80 | 81.5 | 45 | 9 | 120 | 50.5 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
1" | DN25 | 25 | 90 | 90 | 52 | 11 | 130 | 50.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
1-1/4" | DN32 | 32 | 110 | 94.5 | 56.5 | 11 | 140 | 50.5 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
1-1/2" | DN40 | 38 | 120 | 104 | 69 | 15 | 175 | 50.5 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
2" | DN50 | 49 | 140 | 112 | 77 | 15 | 175 | 64 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
2-1/2" | DN65 | 64 | 185 | 123 | 90 | 15 | 220 | 77.5 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
3" | DN80 | 76 | 205 | 144.5 | 108 | 18 | 270 | 91 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
4" | DN100 | 100 | 240 | 170 | 123 | 18 | 310 | 119 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |
5

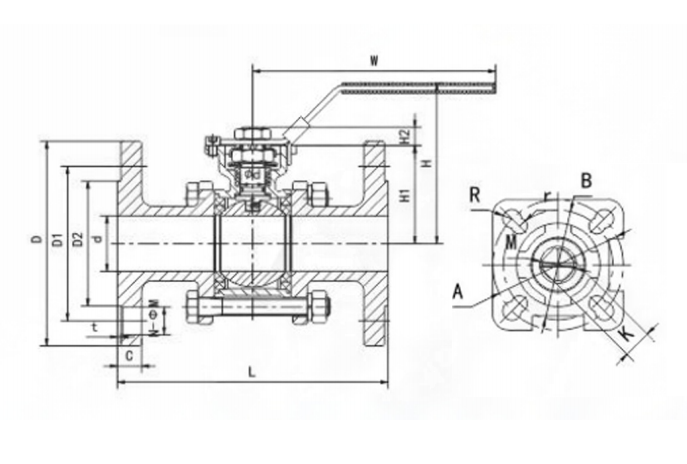

Dimensions & Sizes
Size | C | L | H | H1 | H2 | W | D | D1 | D2 | t | C | N-φM | d | A | B | R | r | K | Nm | Cv | ISO5211 | |
1/2" | DN15 | 15 | 108 | 77 | 40.5 | 9 | 110 | 90 | 60.5 | 35 | 2 | 10 | 4-φ16 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 3.5 | F03/F04 |
3/4" | DN20 | 20 | 117 | 81.5 | 45 | 9 | 120 | 100 | 70 | 43 | 2 | 11 | 4-φ16 | 12 | 42 | 36 | 3 | 3 | 9 | 4 | 7.2 | F03/F04 |
1" | DN25 | 25 | 127 | 90 | 52 | 11 | 130 | 110 | 79.5 | 51 | 2 | 12 | 4-φ16 | 14 | 50 | 42 | 3.5 | 3 | 11 | 7.5 | 12.3 | F04/F05 |
1-1/4" | DN32 | 32 | 140 | 94.5 | 56.5 | 11 | 140 | 115 | 89 | 63.5 | 2 | 13 | 4-φ16 | 14 | 50 | 42 | 3.5 | 3 | 11 | 12 | 20.1 | F04/F05 |
1-1/2" | DN40 | 38 | 165 | 104 | 69 | 15 | 175 | 125 | 98.5 | 73 | 2 | 15 | 4-φ16 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 20.5 | 28.3 | F05/F07 |
2" | DN50 | 49 | 178 | 112 | 77 | 15 | 175 | 150 | 120. | 592 | 2 | 16 | 4-φ19 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 26 | 47.1 | F05/F07 |
2-1/2" | DN65 | 64 | 190 | 123 | 90 | 15 | 220 | 180 | 140 | 105 | 2 | 18 | 4-φ19 | 18 | 70 | 50 | 4.5 | 3.5 | 14 | 44 | 75.4 | F05/F07 |
3" | DN80 | 76 | 203 | 144.5 | 108 | 18 | 270 | 190 | 152. | 5127 | 2 | 19 | 4-φ19 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 68 | 108 | F07/F10 |
4" | DN100 | 100 | 229 | 170 | 123 | 18 | 310 | 230 | 190. | 5157 | 2 | 24 | 4-φ19 | 22 | 102 | 70 | 5.5 | 4.5 | 17 | 89 | 197 | F07/F10 |

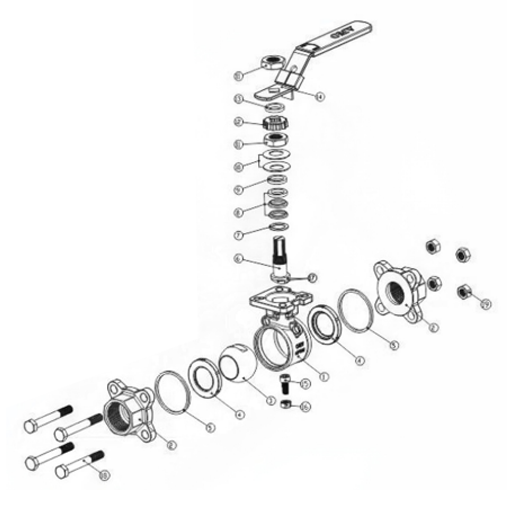

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 2 |
3 | Ball | SUS304/SUS316 | 1 |
4 | Seat | PTFE/RPTFE/PPL/PEEK | 2 |
5 | Gasket | PTFE/RPTFE | 2 |
6 | Stem | SUS304/SUS316 | 1 |
7 | Stem Washer | PTFE/RPTFE | 1 |
8 | V-Ring Packing | PTFE/RPTFE | * |
9 | Gland | SUS304 | 1 |
10 | Belleville Washer | SUS301 | 2 |
11 | Stem Nut | SUS304 | 2 |
12 | Stop Lock Cap | SUS304 | 1 |
13 | Washer | SUS304 | 1 |
14 | Handle | SUS304 | 1 |
15 | Stop Bolt | SUS304 | 1 |
16 | Nut | SUS304 | 1 |
17 | Anti Static Device | SUS304 | 2 |
18 | Bolt | SUS304 | * |
19 | Nut | SUS304 | * |

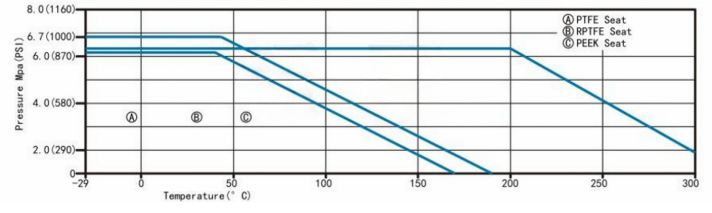

PRESSURE TEMPERATURE CURVE
This valve is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.
Available Sizes: Wide range from 1/4"to 4"in high-pressure configurations Pressure Ratings: 1000PSI, 2000PSI, 3000PSI, and higher pressure classes available Connection Types: Threaded, socket weld, butt weld connectionsFor detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ANSI, ASME, DIN, JIS, etc.).
Applications
This valve is ideal for use in:
- Oil & Gas Industry: High-pressure upstream, midstream applications
- Chemical & Petrochemical: High-pressure process piping, reactors
- Power Generation: Steam systems, high-pressure water applications
- Hydraulic Systems: Industrial hydraulic control systems
- Pharmaceutical: High-pressure process applications
- Research & Testing: Laboratory high-pressure systems
- Marine & Offshore: High-pressure shipboard systems
- General Industry: High-pressure manufacturing processes
Quality Assurance
We maintain the highest standards of quality control throughout the manufacturing process:
- ISO 9001:2015 certified manufacturing facility
- 100% material traceability with heat number tracking
- Comprehensive testing including chemical analysis, mechanical testing, and non-destructive examination
- Third-party inspection available (TPI, LPI, SGS, BV, etc.)
- Complete documentation package including MTC 3.1, test certificates, and dimension reports
FAQ
### 1. What materials are used for CF8M 1/2"3-PC 1000PSI High Platform Ball Valve?
Our CF8M 1/2"3-PC 1000PSI High Platform Ball Valve is manufactured from high-quality stainless steel grades including CF8M (316 stainless steel equivalent) suitable for high-pressure applications. Material certificates are provided with each order.
### 2. What standards does this valve comply with?
This valve is manufactured in compliance with ANSI B16.34 and other major international standards including ASME, API, and high-pressure standards. We can provide third-party inspection certificates upon request.
### 3. What is the delivery time?
Standard sizes are typically available from stock with 3-7 days delivery. Custom orders require 15-30 days depending on specifications and quantity. Rush orders can be accommodated with additional coordination.
### 4. Can you provide custom dimensions?
Yes, we offer custom manufacturing services. We can produce valves according to your specific drawings and requirements. Our engineering team can also assist with design optimization.
### 5. What quality certifications do you provide?
We provide comprehensive documentation including Material Test Certificates (MTC), Third-Party Inspection Reports (TPI), Dimension Reports, and Pressure Test Certificates. All products comply with international quality standards.
Why Choose Our Ball Valves?
With decades of experience in manufacturing industrial valve components, we have established ourselves as a trusted supplier of high-quality ball valves worldwide. Our commitment to excellence is reflected in:
- Technical Expertise: Experienced engineering team providing technical support and custom solutions
- Manufacturing Excellence: State-of-the-art facilities with advanced CNC machining and testing equipment
- Quality Focus: Rigorous quality control at every stage from raw material to finished product
- Customer Service: Responsive support team ensuring smooth order processing and after-sales service
- Competitive Pricing: Direct manufacturer pricing with no intermediary markups
- On-Time Delivery: Efficient production planning and reliable logistics partnerships
