CF8M 2" Two-piece high platfom flange ball valve ANSI B16.34 (2)
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Face to face: ANSI B16.10, DIN3202 F1,F4/F5, GB/T 12221, JIS B2002
END: ANSI B16.5, DIN 2632/2633&DIN 2634/2635, JB/T 79, JIS B2212
Fire testing: API6074th Edition, BS5351
Mounting pad: ISO 5211
Marking system for valves: MSS SP-25
Material Certification: EN 10204 / DIN 50.049-3.1B
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

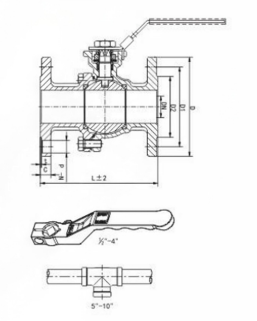

1. ASME B16.5 (150LB)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 108 | 90 | 60.5 | 35 | 2 | 10 | 4-φ16 |
3/4" | DN20 | 117 | 100 | 70 | 43 | 2 | 11 | 4-φ16 |
1" | DN25 | 127 | 110 | 79.5 | 51 | 2 | 12 | 4-φ16 |
1-1/4" | DN32 | 140 | 115 | 89 | 63.5 | 2 | 13 | 4-φ16 |
1-1/2" | DN40 | 165 | 125 | 98.5 | 73 | 2 | 15 | 4-φ16 |
2" | DN50 | 178 | 150 | 120.5 | 92 | 2 | 16 | 4-φ19 |
2-1/2" | DN65 | 190 | 180 | 140 | 105 | 2 | 18 | 4-φ19 |
3" | DN80 | 203 | 190 | 152.5 | 127 | 2 | 19 | 4-φ19 |
4" | DN100 | 229 | 230 | 190.5 | 157 | 2 | 24 | 8-φ19 |
5" | DN125 | 356 | 255 | 216 | 186 | 2 | 24 | 8-φ22 |
6" | DN150 | 394 | 280 | 241.5 | 216 | 2 | 26 | 8-φ22 |
8" | DN200 | 457 | 345 | 298.5 | 267 | 2 | 29 | 8-φ22 |
10" | DN250 | 533 | 405 | 362 | 324 | 2 | 31 | 12-φ25 |
ASME B16.5 (150LB) | ||||||||

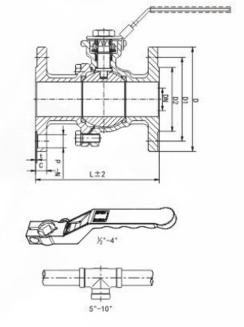

2.ASME B16.5 (300LB)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 140 | 95 | 66.5 | 35 | 2 | 15 | 4-φ16 |
3/4" | DN20 | 152 | 115 | 82.5 | 43 | 2 | 16 | 4-φ19 |
1" | DN25 | 165 | 125 | 89 | 51 | 2 | 18 | 4-φ19 |
1-1/4" | DN32 | 178 | 135 | 98.5 | 63.5 | 2 | 19 | 4-φ19 |
1-1/2" | DN40 | 190 | 155 | 114.5 | 73 | 2 | 21 | 4-φ22 |
2" | DN50 | 216 | 165 | 127 | 92 | 2 | 23 | 4-φ22 |
2-1/2" | DN65 | 241 | 190 | 149 | 105 | 2 | 26 | 8-φ22 |
3" | DN80 | 282 | 210 | 168.5 | 127 | 2 | 29 | 8-φ22 |
4" | DN100 | 305 | 255 | 200 | 157 | 2 | 32 | 8-φ22 |
5" | DN125 | 381 | 280 | 235 | 186 | 2 | 35 | 8-φ22 |
6" | DN150 | 403 | 320 | 267 | 216 | 2 | 37 | 12-φ22 |
8" | DN200 | 502 | 380 | 330 | 267 | 2 | 42 | 12-φ22 |
10" | DN250 | 568 | 445 | 387.5 | 324 | 2 | 48 | 16-φ29 |
ASME B16.5 (150LB) | ||||||||

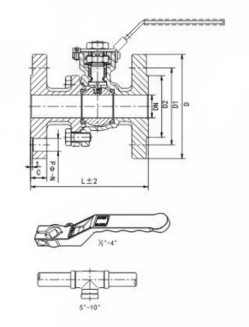

3. JB/T 79 (PN16)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 130 | 95 | 65 | 45 | 2 | 14 | 4-φ14 |
3/4" | DN20 | 130 | 105 | 75 | 55 | 2 | 14 | 4-φ14 |
1" | DN25 | 140 | 115 | 85 | 65 | 2 | 14 | 4-φ14 |
1-1/4" | DN32 | 165 | 140 | 100 | 78 | 2 | 16 | 4-φ18 |
1-1/2" | DN40 | 165 | 150 | 110 | 85 | 3 | 16 | 4-φ18 |
2" | DN50 | 203 | 165 | 125 | 100 | 3 | 16 | 4-φ18 |
2-1/2" | DN65 | 222 | 185 | 145 | 120 | 3 | 18 | 4-φ18 |
3" | DN80 | 241 | 200 | 160 | 135 | 3 | 20 | 8-φ18 |
4" | DN100 | 280 | 220 | 180 | 155 | 3 | 20 | 8-φ18 |
5" | DN125 | 320 | 250 | 210 | 185 | 3 | 22 | 8-φ18 |
6" | DN150 | 360 | 285 | 240 | 210 | 3 | 24 | 8-φ23 |
8" | DN200 | 457 | 340 | 295 | 265 | 3 | 26 | 12-φ23 |
10" | DN250 | 533 | 405 | 355 | 320 | 3 | 30 | 12-φ25 |
JB/T 79 (PN16) | ||||||||

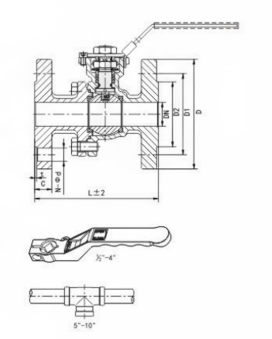

4.JB/T 79 (PN40)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 140 | 95 | 65 | 45 | 2 | 16 | 4-φ14 |
3/4" | DN20 | 152 | 105 | 75 | 55 | 2 | 16 | 4-φ14 |
1" | DN25 | 165 | 115 | 85 | 65 | 2 | 16 | 4-φ14 |
1-1/4" | DN32 | 178 | 140 | 100 | 78 | 2 | 18 | 4-φ18 |
1-1/2" | DN40 | 190 | 150 | 110 | 85 | 3 | 18 | 4-φ18 |
2" | DN50 | 216 | 165 | 125 | 100 | 3 | 20 | 4-φ18 |
2-1/2" | DN65 | 241 | 185 | 145 | 120 | 3 | 22 | 8-φ18 |
3" | DN80 | 282 | 200 | 160 | 135 | 3 | 22 | 8-φ18 |
4" | DN100 | 305 | 235 | 190 | 160 | 3 | 24 | 8-φ23 |
5" | DN125 | 381 | 270 | 220 | 188 | 3 | 28 | 8-φ25 |
6" | DN150 | 403 | 300 | 250 | 218 | 3 | 30 | 8-φ25 |
8" | DN200 | 502 | 375 | 320 | 282 | 3 | 38 | 12-φ30 |
10" | DN250 | 568 | 450 | 385 | 345 | 3 | 42 | 12-φ34 |
JB/T 79 (PN16) | ||||||||

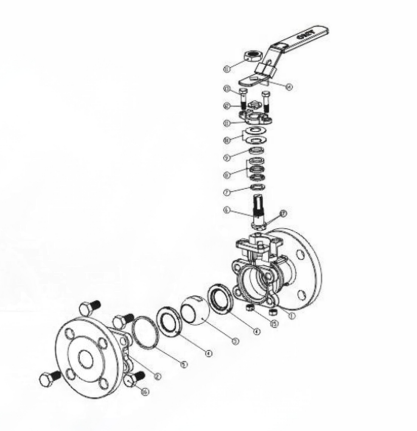

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 2 |
3 | Ball | SUS304/SUS316 | 1 |
4 | Seat | PTFE/RPTFE/PPL/PEEK | 2 |
5 | Gasket | PTFE/RPTFE | 2 |
6 | Stem | SUS304/SUS316 | 1 |
7 | Stem Washer | PTFE/RPTFE | 1 |
8 | V-Ring Packing | PTFE/RPTFE | * |
9 | Gland | SUS304 | 1 |
10 | Belleville Washer | SUS301 | 2 |
11 | Clamp | SUS304 | 2 |
12 | Locator | SUS304 | 1 |
13 | Bolt | SUS304 | 1 |
14 | Handle | SUS304 | 1 |
15 | Stem Nut | SUS304 | 1 |
16 | Bolt | SUS304 | * |
17 | Anti Static Device | SUS304 | 2 |

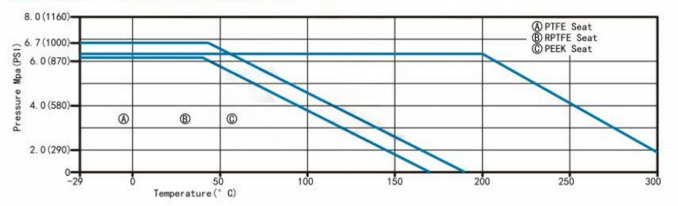

PRESSURE TEMPERATURE CURVE
Engineered for superior performance, this CF8M two piece ball valve features a high platform design for seamless actuator mounting. Constructed from corrosion-resistant CF8M (316 stainless steel), this durable two piece ball valve delivers exceptional service in chemical, pharmaceutical, and food processing applications. Compliant with ANSI B16.34 standards, its two-piece body construction allows for easy maintenance and inspection while ensuring reliable, bubble-tight shut-off. The full-port design minimizes pressure drop, while the reinforced seat provides enhanced sealing capability. This robust two piece ball valve offers outstanding durability and effortless automation integration for demanding industrial flow control applications.
