CF8M 2" Two-piece high platfom flange ball valve ANSI B16.34
Testing Standard: MSS SP-100, EN 12266, API 598, ISO 5208
Face to face: ANSI B16.10, DIN3202 F1,F4/F5, GB/T 12221, JIS B2002
END: ANSI B16.5, DIN 2632/2633&DIN 2634/2635, JB/T 79, JIS B2212
Fire testing: API6074th Edition, BS5351
Mounting pad: ISO 5211
Marking system for valves: MSS SP-25
Material Certification: EN 10204 / DIN 50.049-3.1B
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Product Overview
CF8M 2"Two-piece High Platform Flange Ball Valve ANSI B16.34 Stainless Steel
The CF8M 2"Two-piece High Platform Flange Ball Valve ANSI B16.34 is a high-quality industrial flow control component manufactured to meet stringent international standards. Designed for critical applications across various industries, this valve offers exceptional performance, reliability, and longevity.
Our stainless steel ball valves are precision-engineered using advanced manufacturing techniques and premium-grade materials. Each valve undergoes rigorous quality control and testing to ensure compliance with dimensional tolerances and pressure ratings specified by international standards.
Key Features
- Premium Quality Materials: Manufactured from certified CF8M stainless steel ensuring excellent corrosion resistance and durability
- Precision Engineering: CNC machined to exact specifications with tight tolerances meeting international standards
- Comprehensive Size Range: Available in multiple sizes and pressure ratings to suit various piping applications
- Industry Compliance: Fully compliant with ANSI B16.34, ASME B16.5, and other international standards
- Versatile Applications: Suitable for oil & gas, chemical processing, power generation, water treatment, and other industrial applications
- Quality Assurance: 100% inspection and testing with comprehensive documentation and traceability
- Customization Available: Custom manufacturing services available for special requirements and non-standard dimensions
- Global Supply: Worldwide shipping with experienced logistics support ensuring safe and timely delivery

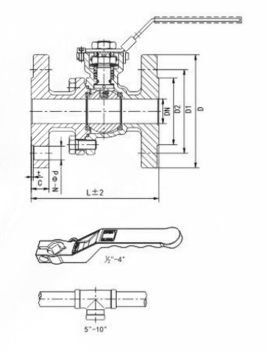

Dimensions & Sizes

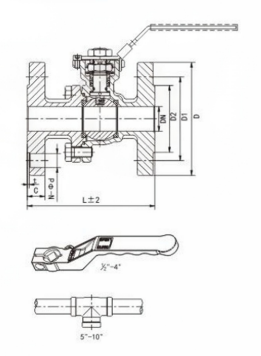

1. ASME B16.5 (150LB)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 108 | 90 | 60.5 | 35 | 2 | 10 | 4-φ16 |
3/4" | DN20 | 117 | 100 | 70 | 43 | 2 | 11 | 4-φ16 |
1" | DN25 | 127 | 110 | 79.5 | 51 | 2 | 12 | 4-φ16 |
1-1/4" | DN32 | 140 | 115 | 89 | 63.5 | 2 | 13 | 4-φ16 |
1-1/2" | DN40 | 165 | 125 | 98.5 | 73 | 2 | 15 | 4-φ16 |
2" | DN50 | 178 | 150 | 120.5 | 92 | 2 | 16 | 4-φ19 |
2-1/2" | DN65 | 190 | 180 | 140 | 105 | 2 | 18 | 4-φ19 |
3" | DN80 | 203 | 190 | 152.5 | 127 | 2 | 19 | 4-φ19 |
4" | DN100 | 229 | 230 | 190.5 | 157 | 2 | 24 | 8-φ19 |
5" | DN125 | 356 | 255 | 216 | 186 | 2 | 24 | 8-φ22 |
6" | DN150 | 394 | 280 | 241.5 | 216 | 2 | 26 | 8-φ22 |
8" | DN200 | 457 | 345 | 298.5 | 267 | 2 | 29 | 8-φ22 |
10" | DN250 | 533 | 405 | 362 | 324 | 2 | 31 | 12-φ25 |
ASME B16.5 (150LB) | ||||||||

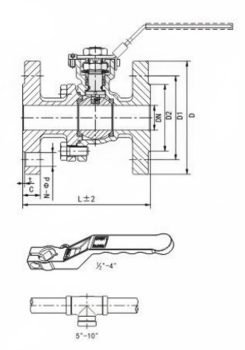

2. ASME B16.5 (300LB)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 108 | 90 | 60.5 | 35 | 2 | 10 | 4-φ16 |
3/4" | DN20 | 117 | 100 | 70 | 43 | 2 | 11 | 4-φ16 |
1" | DN25 | 127 | 110 | 79.5 | 51 | 2 | 12 | 4-φ16 |
1-1/4" | DN32 | 140 | 115 | 89 | 63.5 | 2 | 13 | 4-φ16 |
1-1/2" | DN40 | 165 | 125 | 98.5 | 73 | 2 | 15 | 4-φ16 |
2" | DN50 | 178 | 150 | 120.5 | 92 | 2 | 16 | 4-φ19 |
2-1/2" | DN65 | 190 | 180 | 140 | 105 | 2 | 18 | 4-φ19 |
3" | DN80 | 203 | 190 | 152.5 | 127 | 2 | 19 | 4-φ19 |
4" | DN100 | 229 | 230 | 190.5 | 157 | 2 | 24 | 8-φ19 |
5" | DN125 | 356 | 255 | 216 | 186 | 2 | 24 | 8-φ22 |
6" | DN150 | 394 | 280 | 241.5 | 216 | 2 | 26 | 8-φ22 |
8" | DN200 | 457 | 345 | 298.5 | 267 | 2 | 29 | 8-φ22 |
10" | DN250 | 533 | 405 | 362 | 324 | 2 | 31 | 12-φ25 |
ASME B16.5 (300LB) | ||||||||

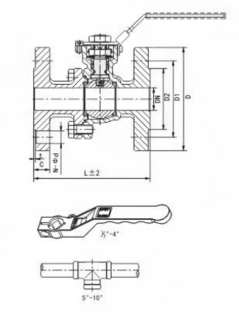

3. DIN 2542 (PN16)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 115 | 95 | 65 | 45 | 2 | 16 | 4-φ14 |
3/4" | DN20 | 120 | 105 | 75 | 58 | 2 | 18 | 4-φ14 |
1" | DN25 | 125 | 115 | 85 | 68 | 2 | 18 | 4-φ14 |
1-1/4" | DN32 | 130 | 140 | 100 | 78 | 2 | 18 | 4-φ18 |
1-1/2" | DN40 | 140 | 150 | 110 | 88 | 3 | 18 | 4-φ18 |
2" | DN50 | 150 | 165 | 125 | 102 | 3 | 20 | 4-φ18 |
2-1/2" | DN65 | 170 | 185 | 145 | 122 | 3 | 20 | 4-φ18 |
3" | DN80 | 180 | 200 | 160 | 138 | 3 | 20 | 8-φ18 |
4" |
| 190 | 220 | 180 | 158 | 3 | 20 | 8-φ18 |
5" | DN125 | 325 | 250 | 210 | 188 | 3 | 22 | 8-φ18 |
6" | DN150 | 350 | 285 | 240 | 212 | 3 | 22 | 8-φ22 |
8" | DN200 | 400 | 340 | 295 | 268 | 3 | 24 | 12-φ22 |
10" | DN250 | 450 | 405 | 355 | 320 | 3 | 26 | 12-φ26 |
DIN 2542 (PN16) | ||||||||

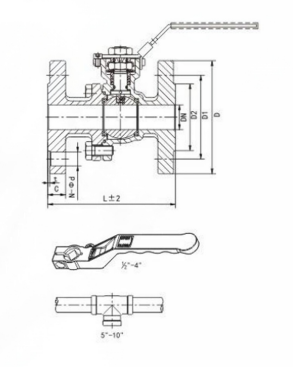

4. DIN 2542 (PN40)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 115 | 95 | 65 | 45 | 2 | 16 | 4-φ14 |
3/4" | DN20 | 120 | 105 | 75 | 58 | 2 | 18 | 4-φ14 |
1" |
| 125 | 115 | 85 | 68 | 2 | 18 | 4-φ14 |
1-1/4" | DN32 | 130 | 170 | 100 | 78 | 2 | 18 | 4-φ18 |
1-1/2" | DN40 | 140 | 150 | 110 | 88 | 3 | 18 | 4-φ18 |
2" | DN50 | 150 | 165 | 125 | 102 | 3 | 20 | 4-φ18 |
2-1/2" | DN65 | 170 | 185 | 145 | 122 | 3 | 22 | 8-φ18 |
3" | DN80 | 180 | 200 | 160 | 138 | 3 | 24 | 8-φ18 |
4" |
| 190 | 235 | 190 | 162 | 3 | 24 | 8-φ22 |
5" | DN125 | 325 | 270 | 220 | 188 | 3 | 26 | 8-φ26 |
6" | DN150 | 350 | 300 | 250 | 218 | 3 | 28 | 8-φ26 |
8" | DN200 | 400 | 375 | 320 | 285 | 3 | 34 | 12-φ30 |
10" | DN250 | 450 | 450 | 385 | 345 | 3 | 38 | 12-φ30 |
DIN 2542 (PN40) | ||||||||

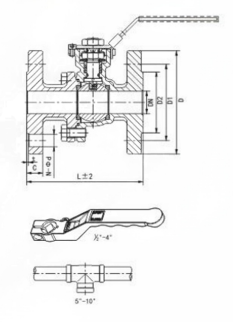

5.JIS B2212 (10K)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 108 | 95 | 70 | 51 | 1 | 12 | 4-φ15 |
3/4" | DN20 | 117 | 100 | 75 | 58 | 1 | 14 | 4-φ15 |
1" | DN25 | 127 | 125 | 90 | 70 | 1 | 14 | 4-φ19 |
1-1/4" | DN32 | 140 | 135 | 100 | 80 | 2 | 16 | 4-φ19 |
1-1/2" | DN40 | 165 | 140 | 105 | 85 | 2 | 16 | 4-φ19 |
2" | DN50 | 178 | 155 | 120 | 100 | 2 | 16 | 4-φ19 |
2-1/2" | DN65 | 190 | 175 | 140 | 120 | 2 | 18 | 4-φ19 |
3" | DN80 | 203 | 185 | 150 | 130 | 2 | 18 | 8-φ19 |
4" | DN100 | 229 | 210 | 175 | 155 | 2 | 18 | 8-φ19 |
5" | DN125 | 356 | 250 | 210 | 185 | 2 | 20 | 8-φ23 |
6" | DN150 | 394 | 280 | 240 | 215 | 2 | 22 | 8-φ23 |
8" | DN200 | 457 | 330 | 290 | 265 | 2 | 22 | 12-φ23 |
10" | DN250 | 533 | 400 | 355 | 325 | 2 | 24 | 12-φ25 |
JIS B2212 (10K) | ||||||||

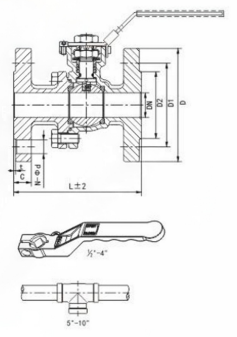

6. JIS B2212 (20K)
Dimensions & Sizes
Size | L | D | D1 | D2 | t | C | N-φd | |
1/2" | DN15 | 140 | 95 | 70 | 52 | 1 | 14 | 4-φ15 |
3/4" | DN20 | 152 | 100 | 75 | 58 | 1 | 16 | 4-φ15 |
1" | DN25 | 165 | 125 | 90 | 70 | 1 | 16 | 4-φ19 |
1-1/4" | DN32 | 178 | 135 | 100 | 80 | 2 | 18 | 4-φ19 |
1-1/2" | DN40 | 190 | 140 | 105 | 85 | 2 | 18 | 4-φ19 |
2" | DN50 | 216 | 155 | 120 | 100 | 2 | 18 | 8-φ19 |
2-1/2" | DN65 | 241 | 175 | 140 | 120 | 2 | 20 | 8-φ19 |
3" | DN80 | 282 | 200 | 160 | 135 | 2 | 22 | 8-φ23 |
4" | DN100 | 305 | 225 | 185 | 160 | 2 | 24 | 8-φ23 |
5" | DN125 | 381 | 270 | 225 | 195 | 2 | 26 | 8-φ25 |
6" | DN150 | 403 | 305 | 260 | 230 | 2 | 28 | 12-φ25 |
8" | DN200 | 502 | 350 | 305 | 275 | 2 | 30 | 12-φ25 |
10" | DN250 | 568 | 430 | 380 | 345 | 2 | 34 | 12-φ27 |
JIS B2212 (20K) | ||||||||

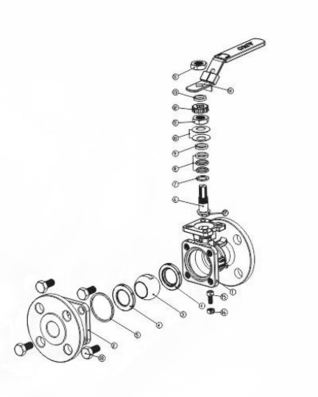

MATERIALS LIST
NO. | PART NAME | MATERIAL | QTY |
1 | Body | A351 CF8 A351 CF8M A216 WCB | 1 |
2 | Bonnet | A351 CF8 A351 CF8M A216 WCB | 2 |
3 | Ball | SUS304/SUS316 | 1 |
4 | Seat | PTFE/RPTFE/PPL/PEEK | 2 |
5 | Gasket | PTFE/RPTFE | 2 |
6 | Stem | SUS304/SUS316 | 1 |
7 | Stem Washer | PTFE/RPTFE | 1 |
8 | V-Ring Packing | PTFE/RPTFE | * |
9 | Gland/Belleville Washer | SUS304 | 1 |
10 | Belleville Washer | SUS301 | 2 |
11 | Stem Nut | SUS304 | 2 |
12 | Stop Lock Cap | SUS304 | 1 |
13 | Washer | SUS304 | 1 |
14 | Handle | SUS304 | 1 |
15 | Stop Bolt | SUS304 | 1 |
16 | Nut | SUS304 | 1 |
17 | Anti Static Device | SUS304 | 2 |
18 | Bolt | SUS304 | * |

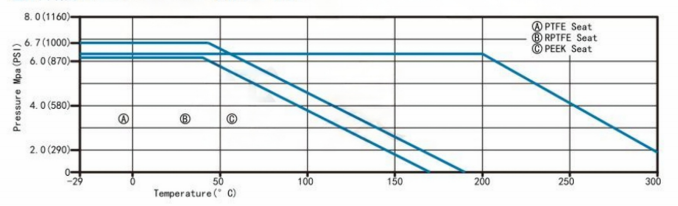

PRESSURE TEMPERATURE CURVE
This valve is available in a comprehensive range of sizes and pressure ratings to accommodate diverse piping system requirements. Our manufacturing capabilities allow us to produce both standard and custom dimensions.
Available Sizes: Wide range from 1/4"to 12"and larger Pressure Ratings: Multiple pressure classes available (150#, 300#, 600#, 900#, 1500#, 2500#) Connection Types: ANSI/ASME flanged connections per B16.5For detailed dimension tables and technical drawings, please contact our technical support team. We can provide comprehensive dimensional specifications according to your required standard (ANSI, ASME, DIN, JIS, etc.).
Applications
This valve is ideal for use in:
- Oil & Gas Industry: Upstream, midstream, and downstream applications
- Chemical & Petrochemical: Process piping, reactors, and storage systems
- Power Generation: Conventional and renewable energy facilities
- Water Treatment: Municipal and industrial water systems
- Pharmaceutical: Sanitary process applications
- Food & Beverage: Hygienic piping systems
- Marine & Offshore: Shipbuilding and offshore platforms
- General Industry: Manufacturing, HVAC, and building services
Quality Assurance
We maintain the highest standards of quality control throughout the manufacturing process:
- ISO 9001:2015 certified manufacturing facility
- 100% material traceability with heat number tracking
- Comprehensive testing including chemical analysis, mechanical testing, and non-destructive examination
- Third-party inspection available (TPI, LPI, SGS, BV, etc.)
- Complete documentation package including MTC 3.1, test certificates, and dimension reports
