1"-3”Manual/Pneumatic Sanitary Safety Valve DIN SMS IDF RJT 3A Clamp Flange Welding Threaded
STYLE:
Manual
Pneumatic
gasket contains:
EPDM
NBR
Connection:
DIN
SMS
RJT
IDF
3A
weld
clamp
thread
flange
SIZE:
1"
1-1/2"
2"
2-1/2"
3"
DN25
DN40
DN50
DN65
DN80
Quantity:
Manual/Pneumatic Sanitary Safety Valve
Standard: 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Max.temperature: 121℃(EPDM)/250°F
Max.operating pressure: Spring adjustable
(0-3bar/0-6bar/0-10bar)(0-43,5PSI/0-87PSI/0-145PSI)
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Max.temperature: 121℃(EPDM)/250°F
Max.operating pressure: Spring adjustable
(0-3bar/0-6bar/0-10bar)(0-43,5PSI/0-87PSI/0-145PSI)

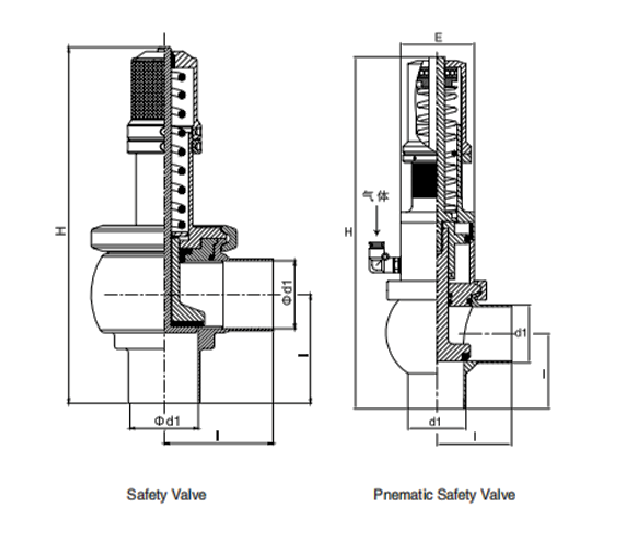

Safety Valve(DIN)
Dimensions & Sizes
DN | d1 | Manual H | Pneumatic H | I |
25 | 26 | 219 | 275 | 58 |
40 | 38 | 250 | 305 | 60 |
50 | 50 | 252 | 305 | 65 |
65 | 66 | 284 | 340 | 75 |
80 | 81 | 301 | 355 | 90 |
Safety Valve(INCHES)
Dimensions & Sizes
DN | d1 | Manual H | Pneumatic H | I |
1" | 221 | 219 | 275 | 58 |
1-1/2" | 348 | 238 | 305 | 60 |
2" | 475 | 252 | 305 | 65 |
2-1/2" | 602 | 284 | 340 | 70 |
3" | 729 | 301 | 355 | 90 |
