Tri-Clamp Installation Guide: Step-by-Step for Sanitary Filter Housings

Quick Answer

To install a tri-clamp connection on a sanitary filter housing:

1. Inspect all components (ferrules, gasket, clamp)
2. Clean mating surfaces thoroughly
3. Insert gasket between ferrules (centered)
4. Align ferrules and push together
5. Place clamp over ferrule ears
6. Tighten clamp nut finger-tight plus 1/4 to 1/2 turn
7. Verify alignment and gap (1/16" maximum)

Torque: 20-30 in-lbs for 1.5" clamps, 40-50 in-lbs for 3" clamps

---

Table of Contents

1. What is a Tri-Clamp Connection?
2. Tri-Clamp Components
3. Tools Required
4. Step-by-Step Installation
5. Torque Specifications
6. Common Installation Mistakes
7. Inspection & Testing
8. Disassembly Procedure
9. Gasket Selection Guide
10. FAQ

---

1. What is a Tri-Clamp Connection?

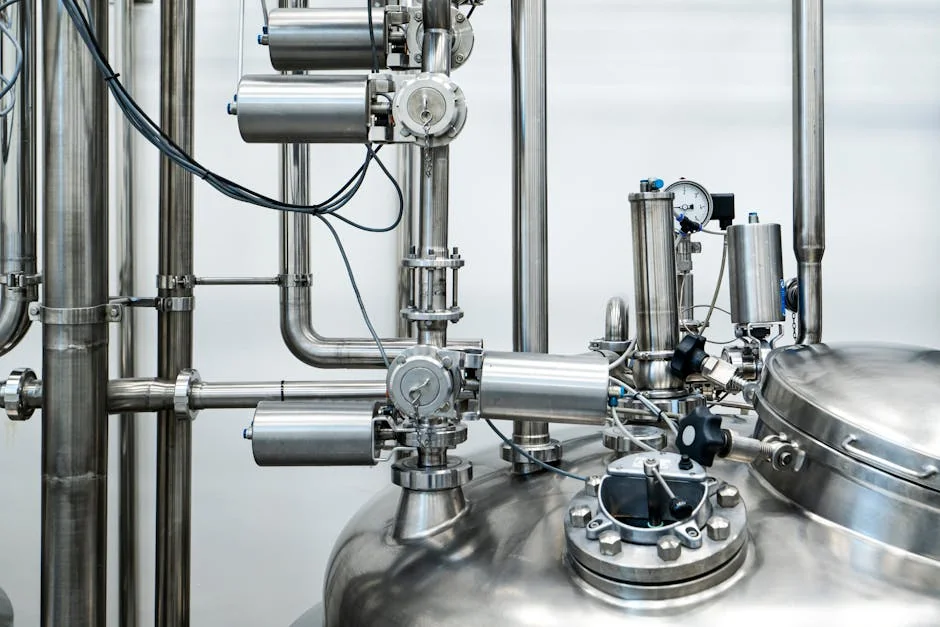

A tri-clamp connection (also called tri-clover, TC, or clamp connection) is a quick-disconnect sanitary fitting used throughout the food, beverage, pharmaceutical, and biotech industries.

Key Features

Feature	Benefit
Quick Disconnect	No tools required for most sizes
Crevice-Free	Smooth flow path prevents bacterial growth
Visual Inspection	Can see gasket and alignment
Repeatable Seal	Consistent sealing with proper installation
Industry Standard	Interchangeable between manufacturers

Common Applications

• Sanitary filter housings
• Process piping systems
• Tank connections
• Pump inlet/outlet
• Valve connections
• Instrumentation ports

Related: Learn about connection types in our Ultimate Guide to Sanitary Filters.

---

2. Tri-Clamp Components

2.1 Ferrules (Flanges)

Ferrules are the flared ends that create the sealing surface.

Type	Description	Application
Fixed Ferrule	Welded to pipe/tube	Permanent installations
Loose Ferrule	Slides over tube	Field assembly, adjustments
Threaded Ferrule	NPT/BSP threads	Instrument connections
Flanged Ferrule	Bolted flange face	Large diameter connections

2.2 Gaskets

Gaskets create the seal between ferrule faces.

Gasket Type	Material	Temperature Range	Best For
EPDM	Ethylene Propylene	-40°F to 300°F (-40°C to 150°C)	Hot water, steam, mild chemicals
Viton® (FKM)	Fluoroelastomer	-10°F to 400°F (-23°C to 200°C)	Chemicals, oils, high temp
Silicone	Silicone	-60°F to 450°F (-51°C to 230°C)	High temp, food contact
PTFE	Teflon®	-100°F to 500°F (-73°C to 260°C)	Aggressive chemicals
FDA Silicone	Platinum-cured silicone	-60°F to 350°F (-51°C to 175°C)	Food, beverage, pharma

2.3 Clamps

Clamps secure the ferrules together.

Clamp Type	Description	Application
Single Pin	One hinge pin, one nut	Standard applications
Double Pin	Two hinge pins	Better alignment
Heavy Duty	Thicker gauge, larger nut	High pressure, frequent cycling
Easy-Grip	Wing nut style	Tool-free installation

---

3. Tools Required

Essential Tools

Tool	Purpose	Notes
Clean lint-free cloth	Clean mating surfaces	Essential for sanitary seal
Isopropyl alcohol	Clean surfaces	Food-grade, evaporates quickly
Torque wrench	Proper clamp tightening	1/4" drive, in-lbs scale
Feeler gauge	Check ferrule gap	Verify proper compression
Flashlight	Visual inspection	Check gasket alignment

Optional Tools

Tool	Purpose	When Needed
Alignment tool	Center ferrules	Large diameter connections
Gasket pick	Remove old gaskets	During disassembly
Magnifying glass	Inspect gasket condition	Critical applications

---

4. Step-by-Step Installation

Before You Begin

Safety Precautions:

• ⚠️ Depressurize the system completely
• ⚠️ Drain all process fluid
• ⚠️ Allow hot systems to cool
• ⚠️ Wear appropriate PPE (gloves, safety glasses)

Verify Components:

• ✓ Correct ferrule size (1", 1.5", 2", etc.)
• ✓ Correct gasket material and size
• ✓ Clamp in good condition (no damage)
• ✓ Ferrule faces clean and undamaged

Step 1: Inspect All Components

□ Check ferrule faces for:
  - Scratches or gouges
  - Dents or deformation
  - Corrosion or pitting
  - Old gasket material

□ Check gasket for:
  - Cracks or tears
  - Hardening or brittleness
  - Swelling or degradation
  - Correct size and shape

□ Check clamp for:
  - Bent or damaged ears
  - Thread condition
  - Smooth hinge operation
  - No corrosion

Reject Criteria:

• Deep scratches (>0.005") on ferrule face
• Cracked or hardened gaskets
• Bent or damaged clamps
• Corroded components (for sanitary service)

Step 2: Clean Mating Surfaces

1. Wipe ferrule faces with clean lint-free cloth
2. Apply isopropyl alcohol to cloth (not directly)
3. Wipe in circular motion from center outward
4. Inspect for cleanliness (no residue)
5. Allow to air dry (30 seconds)

Important: Never use abrasive pads or steel wool on sanitary surfaces. This damages the Ra finish and creates bacterial harborage points.

Step 3: Insert Gasket

1. Hold gasket by edges (avoid touching sealing surfaces)
2. Place gasket on one ferrule face
3. Ensure gasket is centered in ferrule recess
4. Verify gasket sits flat (no twisting)

Gasket Orientation:

• Flat gaskets: Either side can face either direction
• Lip gaskets: Lip faces INTO the flow direction
• Double-lip gaskets: Center lip faces downstream

Step 4: Align and Join Ferrules

1. Support both components (filter housing and piping)
2. Align ferrule centers (use alignment tool if needed)
3. Push ferrules together evenly
4. Ensure gasket remains centered
5. Check for even contact around circumference

Alignment Tips:

• Support heavy components to prevent stress
• For large sizes (4"+), use two people
• Ensure piping is not under stress
• Check that filter housing is properly supported

Step 5: Place Clamp

1. Open clamp fully (rotate nut counter-clockwise)
2. Position clamp over ferrule ears
3. Ensure clamp is centered on ears
4. Close clamp until snug (hand-tight)

Clamp Position:

• Clamp ears should be parallel
• Nut should be accessible for tightening
• Clamp should sit evenly on both ferrules

Step 6: Tighten Clamp

1. Tighten nut finger-tight until resistance is felt
2. Mark nut position with marker (optional)
3. Tighten additional 1/4 to 1/2 turn with wrench
4. For torque wrench: Apply specified torque (see below)
5. Do NOT overtighten

Warning: Overtightening can damage gaskets, deform ferrules, and cause leaks. More torque is NOT better.

Step 7: Verify Installation

□ Check ferrule gap: 1/16" (1.5mm) maximum
□ Verify clamp is centered on ears
□ Confirm gasket is visible and evenly compressed
□ Ensure no gaps between ferrules
□ Check alignment (no angular offset)
□ Verify filter housing is properly supported

Gap Measurement:

• Use feeler gauge to check at multiple points
• Gap should be even around circumference
• Uneven gap indicates misalignment

---

5. Torque Specifications

Recommended Torque Values

Clamp Size	Torque (in-lbs)	Torque (Nm)	Nut Turn (past finger-tight)
0.5" - 1"	15-20 in-lbs	1.7-2.3 Nm	1/4 turn
1.5" - 2"	20-30 in-lbs	2.3-3.4 Nm	1/4 to 1/3 turn
2.5" - 3"	40-50 in-lbs	4.5-5.6 Nm	1/3 to 1/2 turn
4" - 6"	60-80 in-lbs	6.8-9.0 Nm	1/2 turn
8" - 12"	100-140 in-lbs	11.3-15.8 Nm	1/2 to 3/4 turn

Torque by Clamp Manufacturer

Manufacturer	1.5" Clamp	2" Clamp	3" Clamp
Dixon Sanitary	25 in-lbs	25 in-lbs	45 in-lbs
Tri-Clover	25 in-lbs	25 in-lbs	45 in-lbs
Alfa Laval	25 in-lbs	25 in-lbs	45 in-lbs
Parker	25 in-lbs	25 in-lbs	45 in-lbs

Note: Always follow the clamp manufacturer's specific torque recommendations when available.

---

6. Common Installation Mistakes

Mistake #1: Overtightening

Problem: Applying excessive torque

Symptoms:

• Gasket extrusion into flow path
• Deformed ferrule faces
• Cracked gaskets
• Difficult disassembly

Solution: Use torque wrench, follow specifications

Mistake #2: Misalignment

Problem: Ferrules not properly aligned before tightening

Symptoms:

• Uneven ferrule gap
• One-sided gasket compression
• Stress on piping
• Premature gasket failure

Solution: Support components, use alignment tools

Mistake #3: Dirty Surfaces

Problem: Contaminants on sealing surfaces

Symptoms:

• Leaks at low pressure
• Gasket damage
• Bacterial contamination
• Product contamination

Solution: Clean thoroughly before assembly

Mistake #4: Wrong Gasket Material

Problem: Gasket incompatible with process fluid or temperature

Symptoms:

• Gasket swelling or degradation
• Premature failure
• Product contamination
• Leaks

Solution: Verify chemical compatibility (see Gasket Selection Guide)

Mistake #5: Reusing Gaskets

Problem: Installing used gaskets

Symptoms:

• Compression set (won't seal)
• Cracks or tears
• Leaks

Solution: Always use new gaskets for critical applications

Mistake #6: Unsupported Piping

Problem: Piping weight stresses the connection

Symptoms:

• Misaligned connections
• Stress cracks
• Leaks
• Equipment damage

Solution: Properly support all piping within 3 pipe diameters of connection

---

7. Inspection & Testing

Visual Inspection Checklist

□ Gasket visible and evenly compressed around circumference
□ Ferrule gap is even (1/16" maximum)
□ Clamp centered on ferrule ears
□ No angular misalignment
□ No visible damage to components
□ Proper gasket material for application
□ Clamp nut properly tightened (torque mark aligned)

Pressure Testing

Hydrostatic Test (recommended for new installations):

1. Fill system with water (or test fluid)
2. Pressurize to 1.5 × operating pressure
3. Hold for 15-30 minutes
4. Inspect all connections for leaks
5. Check for pressure drop
6. Document results

Pneumatic Test (use caution):

⚠️ WARNING: Compressed gas stores energy. Use extreme caution.

1. Pressurize with air or nitrogen
2. Apply soap solution to connections
3. Look for bubbles indicating leaks
4. Never exceed rated pressure
5. Stand clear during pressurization

Leak Detection

Method	Sensitivity	Application
Visual	Large leaks only	Initial check
Soap Solution	Medium leaks	Pneumatic testing
Electronic Detector	Small leaks	Critical systems
Helium Mass Spec	Very small leaks	Validation (pharma)

---

8. Disassembly Procedure

Step-by-Step Disassembly

1. Depressurize system completely
2. Drain process fluid
3. Allow to cool (if hot service)
4. Place drain pan below connection
5. Loosen clamp nut (counter-clockwise)
6. Open clamp fully
7. Remove clamp from ferrules
8. Separate ferrules carefully
9. Remove and discard gasket
10. Inspect ferrule faces for damage

Gasket Removal

1. Use plastic or wooden pick (not metal)
2. Gently lift gasket from recess
3. Avoid scratching ferrule face
4. Clean recess thoroughly
5. Inspect for damage or corrosion

Important: Never reuse gaskets in sanitary service. Always install new gaskets during reassembly.

---

9. Gasket Selection Guide

Material Selection by Application

Application	Recommended Gasket	Temperature Range
Food & Beverage	FDA Silicone, EPDM	-40°F to 350°F
Dairy	FDA Silicone, EPDM	-40°F to 300°F
Brewery	EPDM, Silicone	-40°F to 300°F
Pharmaceutical	PTFE, Silicone	-60°F to 450°F
Biotech	PTFE, EPDM	-40°F to 300°F
Hot Water/CIP	EPDM, Silicone	Up to 350°F
Steam (SIP)	EPDM, PTFE	Up to 400°F
Chemicals	Viton®, PTFE	Varies by chemical
Oils/Fats	Viton®, EPDM	-10°F to 350°F

---

10. FAQ

How tight should tri-clamp fittings be?

Tri-clamp fittings should be tightened to 20-30 in-lbs for 1.5"-2" clamps, or finger-tight plus 1/4 to 1/2 turn with a wrench. Use a torque wrench for critical applications. Overtightening damages gaskets and ferrules.

Do tri-clamp gaskets need lubrication?

Generally no. Sanitary gaskets are designed for dry installation. For difficult installations or high-temperature service, a thin film of food-grade lubricant can be applied to the gasket OD only (not sealing surfaces).

How often should tri-clamp gaskets be replaced?

Replace gaskets:

• Every disassembly (critical applications)
• Every 6-12 months (standard service)
• Immediately if damaged, cracked, or leaking
• After CIP/SIP cycles per manufacturer recommendation

Can I reuse tri-clamp gaskets?

For sanitary service (food, pharma, beverage): No, always use new gaskets.

For non-critical industrial service: Possibly, if gasket is undamaged and not compression set. However, replacement is recommended.

What is the gap between tri-clamp ferrules?

The proper gap is 1/16" (1.5mm) maximum when properly tightened. The gap should be even around the entire circumference. Uneven gap indicates misalignment.

Why is my tri-clamp connection leaking?

Common causes:

1. Dirty sealing surfaces - Clean thoroughly
2. Damaged gasket - Replace with new gasket
3. Overtightened - Loosen and retorque properly
4. Misaligned - Realign and reinstall
5. Wrong gasket material - Verify chemical compatibility
6. Damaged ferrule - Inspect and replace if needed

Are all tri-clamp fittings interchangeable?

Most tri-clamp fittings follow ISO 2852 or DIN 32676 standards and are interchangeable. However, verify:

• Same size designation
• Same standard (ISO, DIN, SMS)
• Compatible gasket profile

What size tri-clamp do I need?

Tri-clamp size is determined by the tube OD (outside diameter):

Tube OD	Tri-Clamp Size
1/2"	0.5" TC
3/4"	0.75" TC
1"	1" TC
1.5"	1.5" TC
2"	2" TC
3"	3" TC
4"	4" TC

---

Related Resources

Installation Guides

• Ultimate Guide to Sanitary Filters - Complete filter guide
• Sanitary Filter Maintenance - Cleaning and maintenance SOP

Technical References

• 304 vs 316L Stainless Steel - Material selection
• Understanding Micron Ratings - Filter selection

Industry Applications

• Brewery Filtration Guide - Brewery system installation
• Food & Beverage Filtration - Industry requirements
• Pharmaceutical Water Filtration - GMP installation

---

Downloadable Resources

• Tri-Clamp Installation Checklist - Printable installation checklist
• Torque Specification Chart - Quick reference card
• Gasket Selection Guide - Chemical compatibility chart

---
