    MSS-SP-114 Stainless Steel Threaded Bulkhead Fitting with Gasket

    Thread Type:
    NPT
    Pressure Ratings:
    150 lbs
    NPS:
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    Water Tank Connector Adapter Fitting with Gasket
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

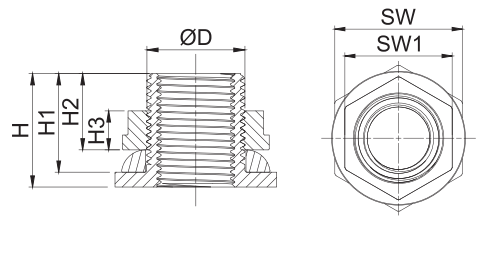

    water tank connector

    Dimensions & Sizes

    Size

    DN

    H

    H1

    H2

    H3

    ØD

    SW

    SW1

    1/4"

    8

    27

    23

    19

    8.5

    18

    28

    21

    3/8"

    10

    27

    23

    19

    9

    21

    32

    25

    1/2"

    15

    30.5

    26.5

    20.5

    10.5

    26

    38

    32

    3/4"

    20

    30

    25

    19

    11

    32.5

    45

    38

    1"

    25

    34

    29

    22

    13

    39

    52.5

    45

    1-1/4"

    32

    34

    29

    22

    13

    47

    62

    54

    1-1/2"

    40

    35

    30

    23

    14

    53

    68

    60

    2"

    50

    37

    31.5

    24.5

    15.5

    66.5

    81

    72.5

    tolerance：1/4"~2"L-0.6mm

    water tank connector

    No.

    Name

    Material

    1

    Nipple

    304

    316

    2

    Sealing Gasket

    NBR / EPDM / FKM

    3

    Nut

    304

    316

    Standard for cast stainless steel

    CF8

    ASTM A351/A351M

    CF8M

    ZG07Cr19Ni10

    GB/T 2100

    ZG07Cr19Ni11Mo2

    1.4308

    EN 10213

    1.4408

    SCS13A

    JIS G5121

    SCS14A

    Threaded fittings-pressure-temperature ratings

    temperature(℃)

    -20—40

    100

    150

    200

    220

    pressure(Mpa)

    2.0

    1.65

    1.5

    1.4

    1.35

    This specialized water tank connector provides secure and leak-proof connections for liquid storage systems. The precision-engineered tank union features a complete fitting assembly with integrated gasket for immediate installation. Manufactured from corrosion-resistant stainless steel with 150# pressure rating, this durable water tank connector ensures reliable performance across 1/4"to 2"sizes. The innovative tank union design includes a compression-style connection that eliminates the need for additional sealing components. This high-quality water tank connector delivers exceptional corrosion resistance and long-term reliability where secure tank penetrations and leak prevention are essential requirements. The complete tank union assembly guarantees perfect sealing integrity in water storage, industrial processing, and agricultural applications.
