MSS-SP-97 Forged Stainless Steel Socketolet

Pressure Ratings:

3000 lbs

6000 lbs

NPS:

1/4"

3/8"

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2 "

3"

4"

5"

Material：:

304

304L

316

316L

Custom

Quantity:

Contact Now

add to cart

MSS SP-97 Socketolet

Standard: MSS SP-97
Material Standard: ASME A182
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

These precision olet fittings provide reliable branch connections for high-pressure piping systems through socket weld integration. The innovative socket weld olet design enables secure branch installations with enhanced structural integrity. Manufactured from forged stainless steel to MSS SP-97 standards, these durable olet fittings ensure optimal flow characteristics and pressure containment. The reinforced construction of these socket weld olet connections guarantees leak-proof performance while maintaining the main pipeline's pressure rating. Ideal for power generation, petrochemical, and industrial applications, these high-performance olet fittings facilitate straightforward installation with complete socket weld integration. The engineered socket weld olet configuration ensures reliable service in demanding conditions where branch connections and system safety are essential requirements.

Key Features

Standard Compliance: Fully compliant with MSS SP-97 and ASME B16.11 standards, ensuring global interchangeability and safety.
Superior Material: Crafted from high-quality forged stainless steel (e.g., ASTM A182 F304/L, F316/L), offering excellent corrosion resistance and mechanical strength.
Precision Forging: The forged structure eliminates internal defects like porosity, providing much higher pressure ratings compared to cast fittings.
Wide Size Range: Available in a full range of sizes from 1/4"to 5"to accommodate various branch-to-header pipe combinations.
High Pressure Rating: Designed to withstand heavy-duty industrial applications, commonly available in 3000# and 6000# classes.
Excellent Flow Efficiency: The contoured design minimizes turbulence and pressure drop within the piping system.

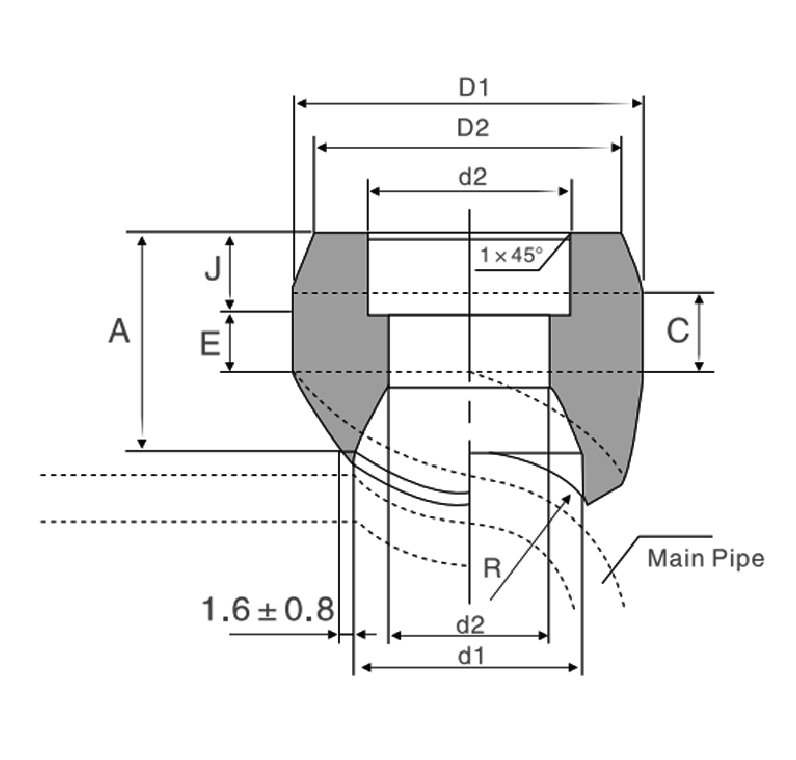

Dimensions & Sizes

olet fittings

RUN PIPE SIZE		BRANCH PIPE SIZE		3000lb	6000lb	3000lb	6000lb	3000lb	6000lb
DN	NPS	DN	NPS	A min/mm		D1 min /mm		D2 min /mm
8-900	1/4-36	6	1/8	19		27		22
10-900	3/8-36	8	1/4	19		27		22
15-900	1/2-36	10	3/8	21		30		25
20-900	3/4-36	15	1/2	25	32	38	45	33	42
25-900	1-36	20	3/4	27	37	47	52	39	48
32-900	1.25-36	25	1	33	40	56	63	48	58
40-900	1.5-36	32	1-1/4	33	41	66	72	58	67
50-900	2-36	40	1-1/2	35	43	75	83	64	77
65-900	2.5-36	50	2	38	52	90	104	77	93
80-900	3-36	65	2-1/2	46		105		94
100-900	4-36	80	3	51		124		114
125-900	5-36	100	4	57		154		140

MSS SP-97 Unit:m/m
