6”Straight Welded Sight Glass DIN SMS IDF RJT 3A
SIZE:
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
3-1/2"
4"
5"
6"
DN10
DN15
DN20
DN25
DN40
DN50
DN65
DN80
DN100
DN125
DN150
φ32
Quantity:
Straight Welded Sight Glass
Standard: 3A DIN SMS ISO RJT DS
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Material Standard: ASTM A270 ISO 2037 DIN EN 10250 ASTM A351
Approvals: 3A certified , FDA approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Straight Welded Sight Glass

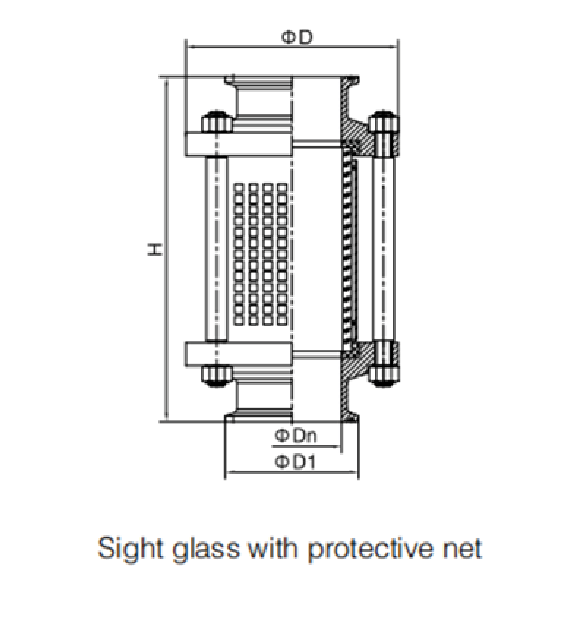

Dimensions & Sizes
Size | H | D | D1 | ||
DN10 | 1/2" | 140 | 78 | 13 | 12.7 |
DN15 | 3/4" | 140 | 78 | 18 | 19.1 |
DN20 | 1" | 140 | 78 | 22 | 25.4 |
DN25 | 1-1/4" | 140 | 78 | 28 | 31.8 |
DN32 | 1-1/2" | 140 | 86 | 34 | 38.1 |
DN40 | 2" | 140 | 90 | 40 | 50.8 |
DN50 | 2-1/2" | 142 | 102 | 52 | 63.5 |
DN65 | 3" | 146 | 124 | 70 | 76.2 |
DN80 | 3-1/2" | 150 | 139 | 85 | 89 |
DN100 | 4" | 154 | 154 | 104 | 101.6 |
DN125 | 5" | 170 | 185 | 129 | 133 |
DN150 | 6" | 180 | 215 | 154 | 159 |
