DN10-300 Sanitary 90 Elbow Weld End
Material：:
304
304L
316
316L
DN:
10
15
20
25
32
40
50
65
80
100
125
150
200
250
300
Quantity:
DN10-300 Sanitary 90 Elbow Weld End
3-A Sanitary Certified
Surface Finish: 32Ra ID/OD, Polished Finish
Alloys Available: 304 and 316L Stainless Steel
Stainless Steel Sanitary Polished Weld Fittings Stainless steel sanitary polished weld fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required.
Surface Finish: 32Ra ID/OD, Polished Finish
Alloys Available: 304 and 316L Stainless Steel
Stainless Steel Sanitary Polished Weld Fittings Stainless steel sanitary polished weld fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required.

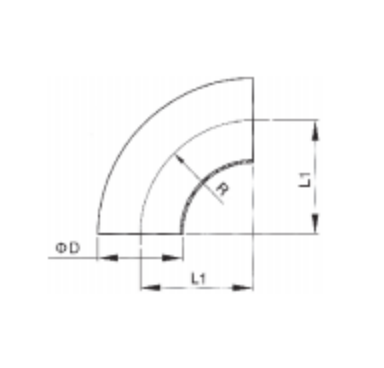

Dimensions & Sizes
Size | L1 | D | R |
DN10 | 26.0 | 12.0 | 26.0 |
DN15 | 35 | 18 | 35 |
DN20 | 40.0 | 22.0 | 40.0 |
DN25 | 50 | 28 | 50 |
DN32 | 55.0 | 34.0 | 55.0 |
DN40 | 60 | 40 | 60 |
DN50 | 70.0 | 52.0 | 70.0 |
DN65 | 80 | 70 | 80 |
DN80 | 90.0 | 85.0 | 90.0 |
DN100 | 100 | 104 | 100 |
DN125 | 187.0 | 129.0 | 187.0 |
DN150 | 225.0 | 154.0 | 225.0 |
DN200 | 300 | 204 | 300 |
DN250 | 375 | 254 | 375 |
DN300 | 450 | 306 | 450 |
