KF65 KF80 KF100 Sanitary Manual Three Piece All Inclusive Ball Valve vacuum three piece flange ball valve
The ball valve according to 3A,ASME,BPE standard design,mainly used in bio-pharmaceuticals,food and beverage,wine,chemical and other industrial fields.
Technical characteristics
Full-package ballvalve design,no retention,high clean,tomeet the CIP,SIP sterilization and cleaning requirements,hightemperature 150℃,pressure 25bar,automatic compensationseal design,with torque,long life and other characteristics,thenormal switch 100,000 times,Can be equipped with a varietyof executive structures,such as the electric head,horizontalpneumatic head,stainless steel three-dimensional pneumatic,the key manual handle,you can also installthe control unit,positioner,position sensor,can also be installed automaticcontrol system.
Surface finish
All the surface CNC,0.8m,to RA0.4cm,electrical polishing upto 0.25cm.

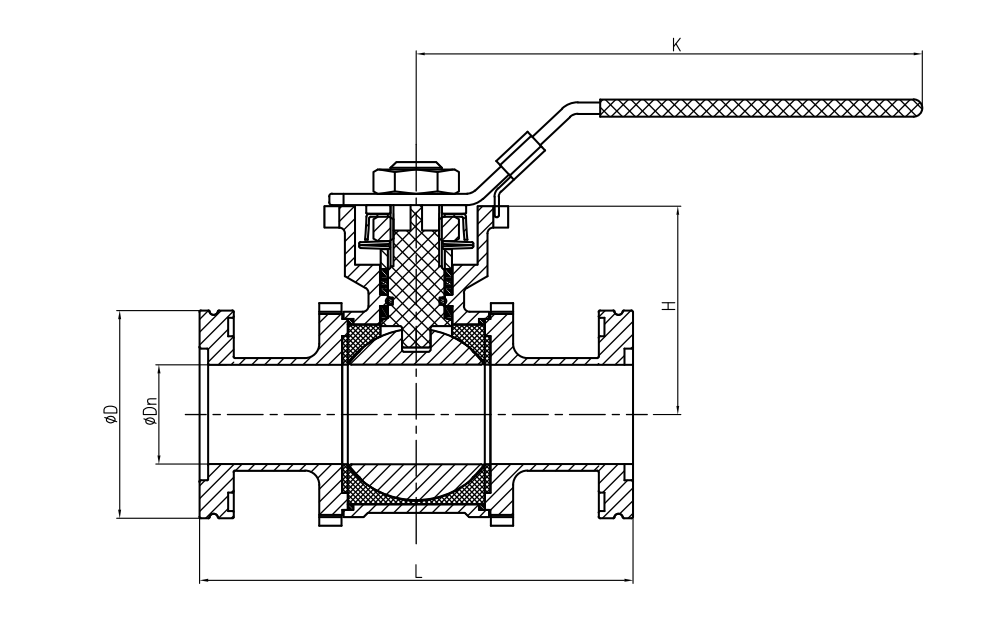

Dimensions & Sizes
Size | D | Dn | L | K | H |
KF65 | 95 | 60 | 197 | 215 | 95 |
KF80 | 110 | 72.9 | 229 | 320 | 110.5 |
KF100 | 130 | 97.6 | 242 | 320 | 122.5 |
This precision vacuum ball valve is engineered for high-purity and vacuum applications in pharmaceutical and biotech industries. The durable 3 piece stainless steel ball valve design features KF flanges for secure vacuum connections and easy disassembly. This reliable vacuum ball valve maintains excellent sealing performance under full vacuum conditions while preventing product contamination. The polished Ra≤0.8μm surface finish of this 3 piece stainless steel ball valve ensures superior cleanability and meets strict sanitary requirements. Ideal for aseptic processing and vacuum systems, this advanced vacuum ball valve delivers exceptional performance where absolute hygiene, sterilizability, and leak-tight vacuum operation are critical requirements. The three-piece construction allows complete access for validation and maintenance.
