1"-4” Sanitary Pneumatic welded butterfly valve

NPS:
1"
1-1/4"
1-1/2"
2"
2-1/2 "
3"
4"
Quantity:
Contact Now
add to cart
1"-4” Sanitary Pneumatic welded butterfly valve
Application
This type of pneumatic butterfly valve is used to cut off the flow direction of materials in the equipment pipeline,and is widely used in food,wine making,beverage,dairy products,toothpaste,cosmetics, bio pharmaceutical and other industries.
Working Principle
Compressed air is used to push the aluminum core piston in the pneumatic actuator to compress downward to drive the rotating head,so that the rotating head can rotate 90°in the track of the aluminum core piston.The connecting square core connects the pneumatic actuator and the disc plate to drive the rotating direction of the disc plate to open and close the valve

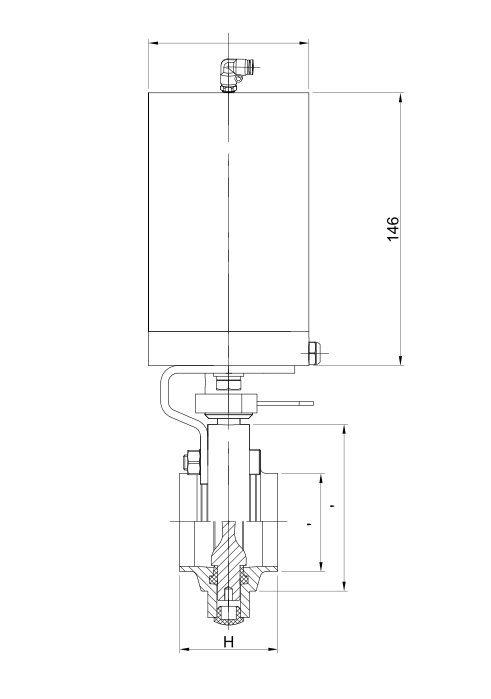

pneumatic sanitary butterfly valve

Dimensions & Sizes

Size

D

H

D1

1"

78

50

25.4

1-1/4"

78

50

31.8

1-1/2"

86

50

38.1

2"

102

52

50.8

2-1/2"

115

56

63.5

3"

128

56

76.2

4"

154

64

101.6

This advanced pneumatic sanitary butterfly valve delivers reliable automated control for high-purity processing systems. The efficient pneumatic butterfly valve design ensures quick response and consistent performance in sanitary applications. Featuring welded connections, this durable pneumatic sanitary butterfly valve eliminates crevices and ensures smooth, cleanable surfaces. The polished interior of this pneumatic butterfly valve meets stringent hygiene standards and prevents bacterial growth. Compatible with clean-in-place systems, this robust pneumatic sanitary butterfly valve maintains product integrity in pharmaceutical, food, and beverage applications. The corrosion-resistant construction and full-port design make this pneumatic butterfly valve ideal for automated processing lines where hygiene, reliability, and automation efficiency are essential requirements.
