DN40 Flanged Sight Glass DIN
SIZE:
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
Quantity:
Flanged Sight Glass
Standard: DIN
Material Standard: DIN EN 10250
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Material Standard: DIN EN 10250
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Flanged Sight Glass

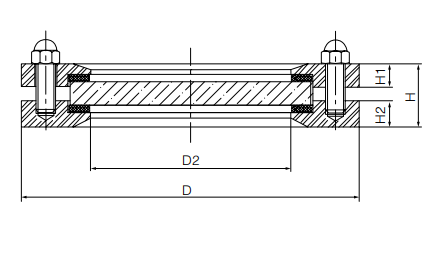

Dimensions & Sizes
Size | H | H1 | H2 | D | D2 |
DN40 | 25 | 14 | 8 | 115 | 68 |
DN50 | 29 | 16 | 10 | 140 | 78 |
DN65 | 29 | 16 | 10 | 155 | 98 |
DN80 | 29 | 16 | 10 | 155 | 98 |
DN100 | 30 | 16 | 11 | 190 | 128 |
DN125 | 33 | 18 | 12 | 224 | 154 |
DN150 | 41 | 20 | 18 | 250 | 183 |
DN200 | 45 | 22 | 20 | 310 | 233 |
