1/2"-4”KF10-50 Sanitary Manual Three Piece All Inclusive Ball Valve 3A/vacuum three piece clamp ball valve
The ball valve according to 3A,ASME,BPE standard design,mainly used in bio-pharmaceuticals,food and beverage,wine,chemical and other industrial fields.
Technical characteristics
Full-package ballvalve design,no retention,high clean,tomeet the CIP,SIP sterilization and cleaning requirements,hightemperature 150℃,pressure 25bar,automatic compensationseal design,with torque,long life and other characteristics,thenormal switch 100,000 times,Can be equipped with a varietyof executive structures,such as the electric head,horizontalpneumatic head,stainless steel three-dimensional pneumatic,the key manual handle,you can also installthe control unit,positioner,position sensor,can also be installed automaticcontrol system.
Surface finish
All the surface CNC,0.8m,to RA0.4cm,electrical polishing upto 0.25cm.

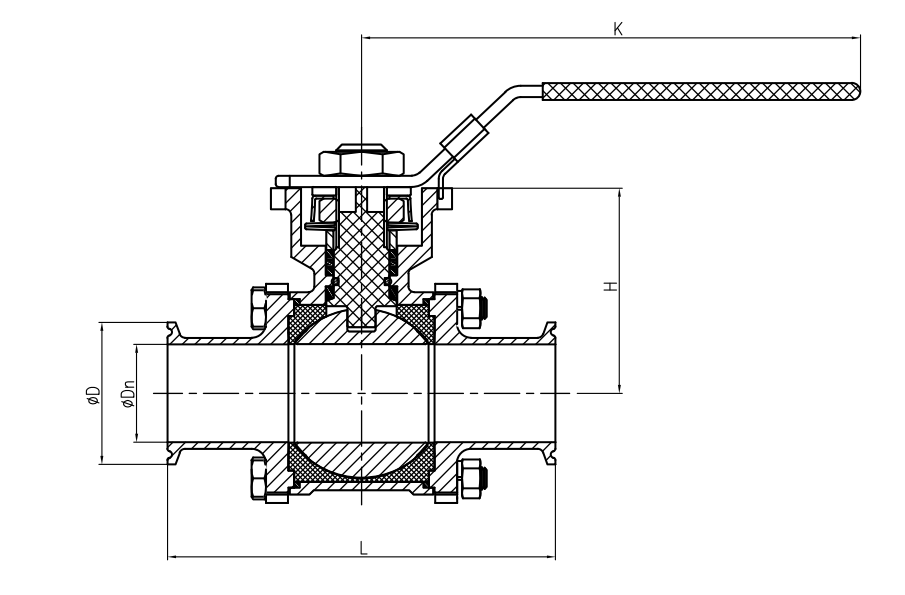

3A three piece clamp ball valve
Dimensions & Sizes
Size | D | Dn | L | K | H |
1/2" | 25.4 | 9.4 | 89 | 130 | 38 |
3/4" | 25.4 | 15.8 | 101 | 130 | 42.5 |
1" | 50.5 | 22.1 | 114 | 165 | 52.5 |
1-1/4" | 50.5 | 28.5 | 122 | 165 | 58.5 |
1-1/2" | 50.5 | 34.8 | 140 | 215 | 73 |
2" | 64 | 47.5 | 156 | 215 | 78.5 |
2-1/2" | 77.5 | 60 | 197 | 215 | 95 |
3" | 91 | 72.9 | 229 | 320 | 110.5 |
4" | 119 | 97.6 | 242 | 320 | 122.5 |

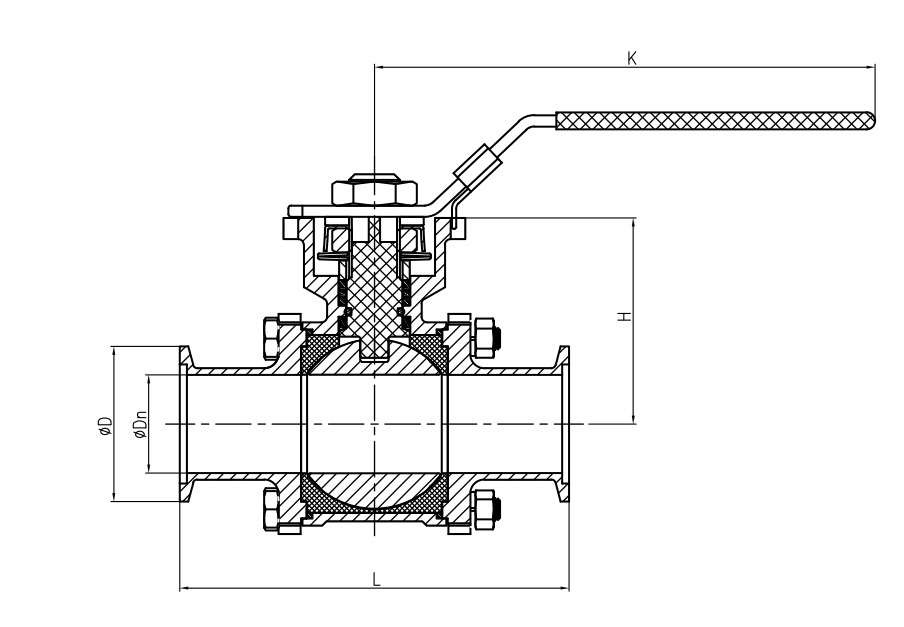

Three piece vacuum clamp ball valve
Dimensions & Sizes
Size | D | Dn | L | K | H |
KF10 | 30 | 9.4 | 89 | 130 | 38 |
KF16 | 30 | 15.8 | 101 | 130 | 42.5 |
KF25 | 40 | 22.1 | 114 | 165 | 52.5 |
KF40 | 55 | 34.8 | 140 | 215 | 73 |
KF50 | 75 | 47.5 | 156 | 215 | 78.5 |
This high-performance clamp ball valve is designed for sanitary and vacuum applications in food, pharmaceutical, and biotech industries. The innovative 3 piece ball valve design allows for easy disassembly and thorough cleaning, ensuring compliance with 3A hygiene standards. The clamp ball valve features polished interiors and quick-clamp connections for rapid installation and maintenance. Built for vacuum and pressure service, this durable 3 piece ball valve provides leak-proof performance and excellent flow control. The all-inclusive design of this clamp ball valve eliminates dead zones and prevents product contamination. Ideal for sensitive processes, this reliable 3 piece ball valve guarantees superior performance where hygiene, cleanability, and operational efficiency are critical requirements.
