1/2"-4" DN1-100 Sanitary Manual Three Piece All Inclusive Ball Valve 3A/DIN three piece welded ball valve

NPS:
1/2 "
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2 "
3"
4"
Material：:
304
304L
316
316L
DN:
10
15
20
25
32
40
50
65
80
100
Quantity:
Contact Now
add to cart
3A/DIN three piece welded ball valve
Application
The ball valve according to 3A,ASME,BPE standard design,mainly used in bio-pharmaceuticals,food and beverage,wine,chemical and other industrial fields.
Technical characteristics
Full-package ballvalve design,no retention,high clean,tomeet the CIP,SIP sterilization and cleaning requirements,hightemperature 150℃,pressure 25bar,automatic compensationseal design,with torque,long life and other characteristics,thenormal switch 100,000 times,Can be equipped with a varietyof executive structures,such as the electric head,horizontalpneumatic head,stainless steel three-dimensional pneumatic,the key manual handle,you can also installthe control unit,positioner,position sensor,can also be installed automaticcontrol system.
Surface finish
All the surface CNC,0.8m,to RA0.4cm,electrical polishing upto 0.25cm.

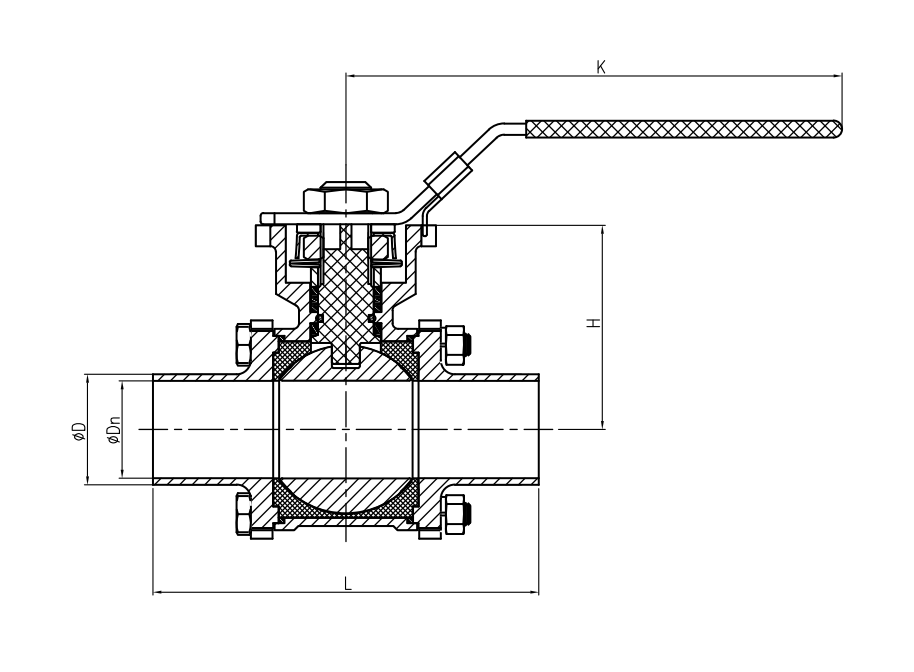

DIN three piece welded ball valve

butt weld ball valve

Dimensions & Sizes

Size

D

Dn

L

K

H

1/2"

12.7

9.4

89

130

38

3/4"

19.1

15.8

101

130

42.5

1"

25.4

22.1

114

165

52.5

1-1/4"

31.8

28.5

122

165

58.5

1-1/2"

38.1

34.8

140

215

73

2"

50.8

47.5

156

215

78.5

2-1/2"

63.5

60

197

215

95

3"

76.2

72.9

229

320

110.5

4"

101.6

97.6

242

320

122.5

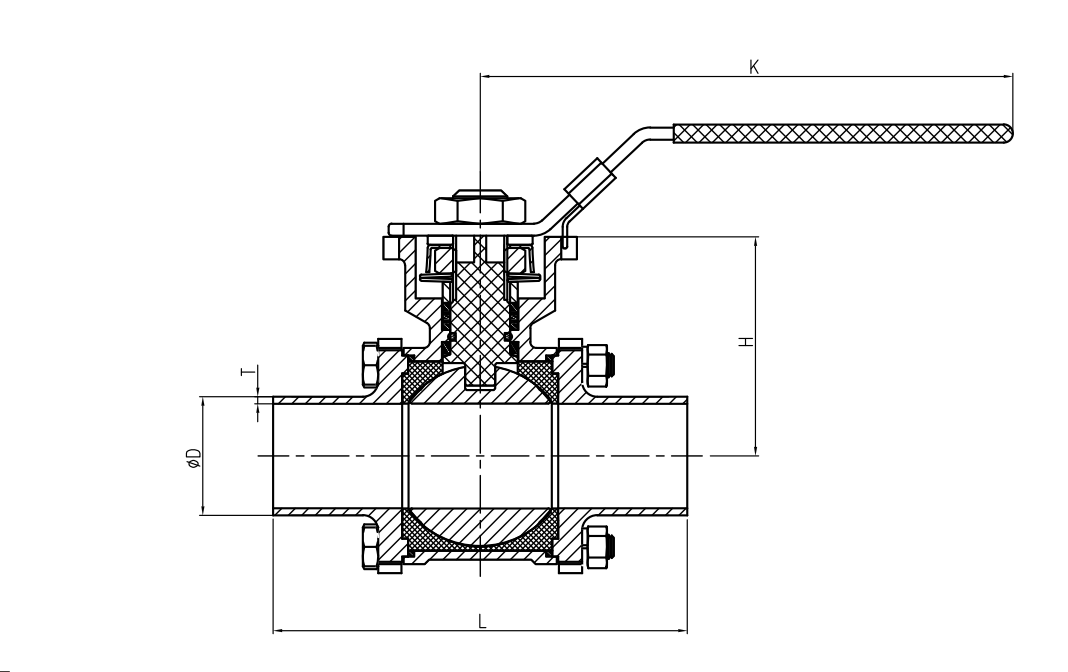

DIN three piece welded ball valve

butt weld ball valve

Dimensions & Sizes

Size

D

T

L

K

H

DN10

12

13

1.5

89

130

38

DN15

18

19

1.5

101

130

42.5

DN20

22

23

1.5

101

130

42.5

DN25

28

29

1.5

114

165

52.5

DN32

34

35

1.5

122

165

58.5

DN40

40

41

1.5

140

215

73

DN50

52

53

1.5

156

215

78.5

DN65

70

2

197

215

95

DN80

85

2

229

320

110.5

DN100

104

2

242

320

122.5

This high-performance butt weld ball valve is engineered for ultra-sanitary applications requiring permanent, clean-in-place connections. The premium 3 piece stainless steel ball valve design enables complete disassembly for thorough sterilization and maintenance. Featuring polished Ra≤0.8μm surfaces, this advanced butt weld ball valve eliminates dead zones and prevents bacterial harborage. Compliant with 3A and DIN standards, this robust 3 piece stainless steel ball valve ensures full integrity in high-purity processes. The butt weld ball valve configuration provides seamless pipeline integration without threads or crevices. Ideal for pharmaceutical, biotech, and food applications, this reliable 3 piece stainless steel ball valve delivers exceptional performance where absolute hygiene, sterilizability, and zero contamination risk are paramount requirements.
