1/2”-4” Sanitary Pneumatic three piece all inclusive ball valve

NPS:
1/2 "
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2 "
3"
4"
Material：:
304
304L
316
316L
Quantity:
Contact Now
add to cart
1/2”-4” Sanitary Pneumatic three piece all inclusive ball valve
Pneumatic Actuator:can be installed into CSE,Two-way or Three -way low platform or high platform which is according to ISO5211
(to the low flat form such as ball valve, a bracket support can be supplied for installing the pneumatic actuator)
Material: 316ASTM-CF8M A351
Valve seat: PTFE
Standard Design：
Different standard of valve series can supply to Customers, they are the DIN standard series, 3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE etc.
The constitute elements of ball valve always included: one handle, one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
The specification of WEIHENG'S ball valve series are welded ball valve, clamped ball valve,threaded ball valve etc.

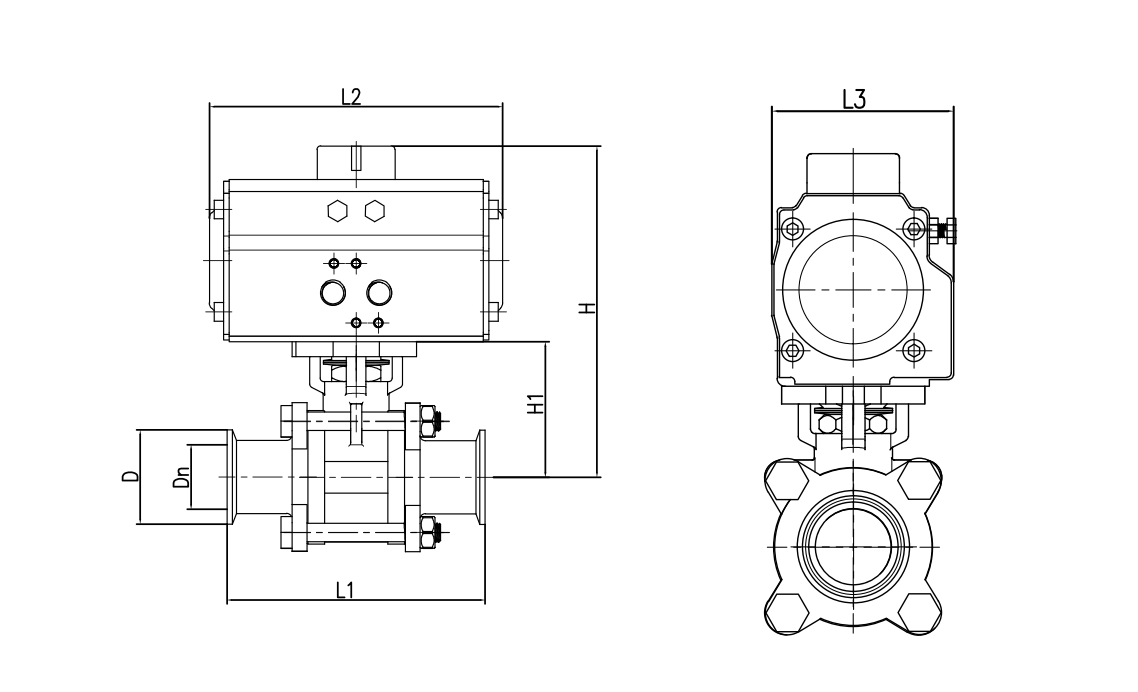

air actuated ball valve

Pneumatic three piece quick installation ball valve

Dimensions & Sizes

Size

ΦDn

ΦD

L1

L2

L3

H

H1

1/2"

9.4

25.4

89

145

71

128

38

3/4"

15.8

25.4

101

145

71

134.5

42.5

1"

22.1

50.5

114

145

71

144

52.5

1.5"

34.8

50.5

140

169

82

179.5

73

2"

47.5

64

156

201

94

198.5

78.5

2.5"

59.8

77.5

197

209

101

222.5

95

3"

72.9

91

229

242

108.5

249.5

110.5

4"

97.4

119

242

332

137.5

297

122.5

This advanced air actuated ball valve delivers automated flow control for high-purity processing systems. The efficient pneumatic actuated ball valve design ensures rapid response and reliable operation in sanitary applications. Featuring a three-piece construction, this versatile air actuated ball valve allows for easy disassembly and thorough cleaning. The polished interior surfaces of this pneumatic actuated ball valve prevent bacterial growth and meet stringent hygiene requirements. Compatible with clean-in-place systems, this durable air actuated ball valve maintains product integrity in pharmaceutical, food, and beverage applications. The compact design and corrosion-resistant materials make this pneumatic actuated ball valve ideal for automated processing lines where hygiene, reliability, and automation efficiency are essential requirements.
