3"Flexible Coupling Orange Paint Coating Pipe Fitting UL/FM XGQT2

ΦD:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
OD:
33.7
42.4
48.3
60.3
73
76.1
88.9
108
114.3
133
139.7
141.3
159
165.1
168.3
219.1
273
323.9
Quantity:
Contact Now
add to cart
UL/FM Flexible Coupling Orange XGQT2
Approvals: UL certified , FM approved
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

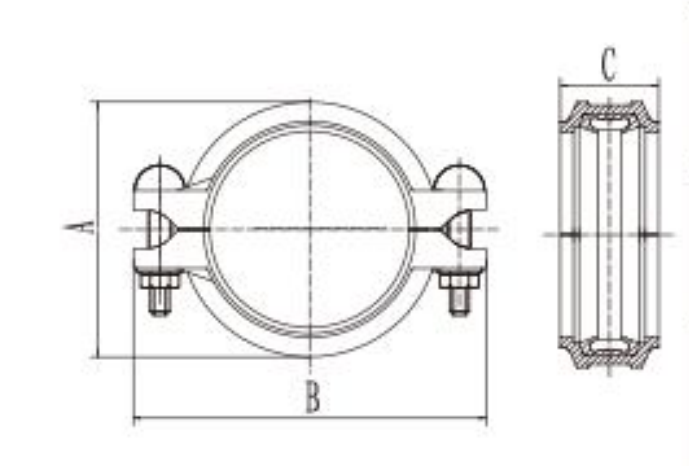

flexible coupling

Dimensions & Sizes

Nominal
Size mm/in		Pipe OD.
  mm/in		Working
Pressure
psi/Mpa		Dimensions mm/inBolt Size
A mm/inB mm/inCmm/inNo.-Size
  mm
25
1		33.7
1.327		  300 psi
2.07 Mpa		56
2.20		98
3.85		44
1.74		3/8*45-2
32
1-1/4		42.4
1.669		65
2.55		108
4.25		44
1.74		3/8*45-2
40
1-1/2		48.3
1.9		72
2.84		114
4.48		44
1.74		3/8*45-2
50
2		60.3
2.375		84
3.30		126
4.96		46
1.81		3/8*55-2
65
2-1/2		73
2.875		97
3.81		140
5.52		46
1.81		3/8*55-2
65
2-1/2		76.13 1003.93142
5.59		46
1.81		3/8*55-2
80
3		88.9
3.5		114
4.48		154
6.06		46
1.81		3/8*55-2
100
4		108
4.25		135
5.31		186
7.32		50
1.96		1/2*65-2
100
4		114.3
4.5		1385.43192
7.55		50
1.96		1/2*65-2
125
5		133
5.25		162
6.37		213
8.38		50
1.96		1/2*75-2
125
5		139.7
5.5		170
6.73		220
8.66		50
1.96		1/2*75-2
125
5		141.3
5.563		1716.73222
8.74		50
1.96		1/2*75-2
150
6		159
6.25		1907.48241
9.48		50
1.96		1/2*75-2
150
6		165.1
6.5		196
7.71		248
9.76		50
1.96		1/2*75-2
150
6		168.3
6.625		2007.87252
9.92		50
1.96		1/2*75-2
200
8		219.1
8.625		258
10.15		322
12.67		60
2.36		5/8*95-2
250
10		273
10.75		318
12.51		400
15.74		62
2.44		3/4*110-2
300
12		323.9
12.750		372
14.64		454
17.87		64
2.51		3/4*120-2
This precision threaded pipe flange provides reliable, weld-free connections for industrial piping systems. Manufactured from corrosion-resistant F304 stainless steel according to HG/T20620 standards, this durable threaded pipe flange ensures excellent performance across 150# to 300# pressure ratings. The raised face design guarantees optimal gasket compression for leak-proof sealing without requiring welding equipment. As a trusted pipe flange supplier, we guarantee superior material quality and precise threading for easy installation. Ideal for chemical processing, food industry, and general industrial applications, this versatile threaded pipe flange offers cost-effective solutions where frequent maintenance and corrosion resistance are essential. Our reliable pipe flange supplier services include comprehensive technical support and quality certification for all industrial applications.
