    MSS-SP-114 Stainless Steel Threaded Female Elbow Union

    Thread Type:
    NPT
    NPS:
    1/8"
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 Female Elbow Union
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision elbow union provides reliable 90-degree directional changes with easy maintenance access. The innovative female swivel elbow features female NPT threads on both ends combined with a practical union mechanism. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this durable elbow union ensures leak-proof performance with 150# pressure rating across 1/8"to 2"sizes. The versatile female swivel elbow design allows for easy disassembly and perfect alignment adjustment during installation. This high-quality elbow union delivers exceptional corrosion resistance and long-term reliability where directional changes and maintenance accessibility are essential requirements. The precision-cast female swivel elbow guarantees optimal performance in chemical, marine, and petroleum applications.

    Key Features

    • Union Structure for Easy Disassembly：Three-piece union construction enables fast connection and disconnection without pipe rotation, ideal for maintenance-prone installations.
    • Premium 304 Stainless Steel：Excellent corrosion resistance, durability, and long service life in demanding environments.
    • 150# Pressure Rating：Suitable for standard low- to medium-pressure piping systems.
    • Wide Size Range：Available from 1/8” to 4”, covering common pipe connection requirements.
    • Threaded Cast Construction：Precision-cast body with clean, accurate threads for secure, leak-resistant sealing.
    • Multi-Application Compatibility：Suitable for water, gas, oil, air, and other non-corrosive fluids.

    Dimensions & Sizes

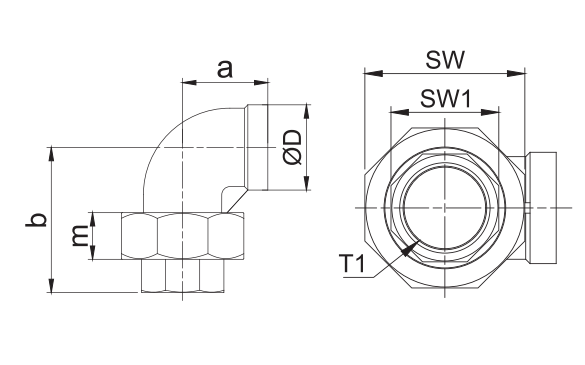

    elbow union

    Size T1DNØDabmSWSW1
    1/8"614.51733132614
    1/4"8181937142917
    3/8"1021.5234214.53321
    1/2"1526.52748.516.53825
    3/4"2032324631
    1"2539.5376118.55438
    1-1/4"3248.54370.5216447
    1-1/2"40554877.5237153
    2"50675688.5258565

    tolerance：1/8"～2"a-0.6mm
    polygonal ：aniseed1/8"～2"

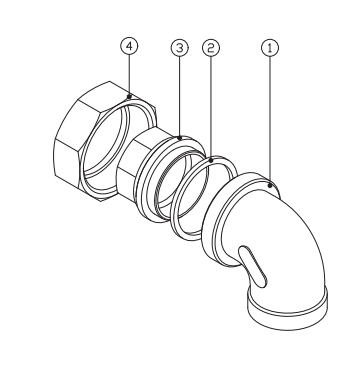

    elbow union

    No.Name
    1Union Nut
    2Sealing Gasket
    3Straight Connector
    4Nut
