    BS 3799 Forged Stainless Steel Threaded TOE Nipple

    Thread Type:
    BSPT
    NPT
    NPS:
    1/8"
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    3-1/2"
    4"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    BS 3799 Threaded TOE Nipple
    Standard: BS 3799
    Threads Standard: ASME B1.20.1(NPT), ISO 7-1(BSPT)
    Forged Stainless Steel Material Standard: ASME A182
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision toe nipple provides reliable branch connections for high-pressure piping systems through threaded integration. The specialized pipe nipple toe design enables secure 45-degree branch installations with enhanced structural integrity. Manufactured from forged stainless steel to BS 3799 standards, this durable toe nipple ensures optimal flow characteristics and pressure containment. The reinforced construction of this pipe nipple toe guarantees leak-proof performance while maintaining the main pipeline's pressure rating. Available in sizes from 1/8"to 4", this versatile toe nipple facilitates straightforward installation with complete threaded integration. Ideal for petrochemical, power generation, and industrial applications, this high-performance pipe nipple toe delivers reliable service where angled branch connections and system safety are essential requirements in demanding service conditions.


    Key Features

    • Standard Compliance: Fully compliant with BS 3799 for high-pressure piping applications.
    • Premium Material: Crafted from Forged Stainless Steel following ASME A182 standards, ensuring maximum strength and corrosion resistance.
    • Precise Threading: Features high-accuracy threads (compliant with ASME B1.20.1 NPT or ISO 7-1 BSPT) for secure, leak-free connections.
    • Versatile Size Range: Available in diameters from 1/8"up to 4"to meet various industrial piping requirements.
    • High Pressure Rating: Suitable for critical service in 3000lb and 6000lb pressure classes.
    • Certified Quality: Manufactured in a facility certified by ISO 9001:2015, ensuring strict quality control and consistency.
    • Full Documentation: Material Test Reports (MTRs) and Certificates of Conformity (COC) are provided for all orders to guarantee material traceability.

    Dimensions & Sizes

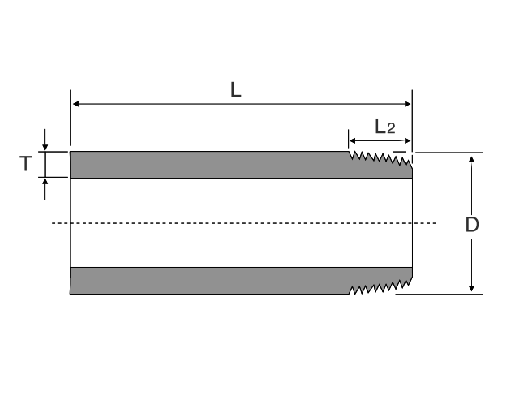

    toe nipple

    DNNPSDL2LT
    6
    8
    10    		1/8
    1/4
    3/8    		10.3
    13.7
    17.1    		9.5
    11.0
    12.5    		60、90、120、
    150、180    		sch80、sch160
    /2000lbs、3000lbs
    15
    20
    25    		1/2
    3/4
    1    		21.3
    26.7
    33.4    		14.5
    16.0
    19.0
    32
    40
    50    		1-1/4
    1-1/2
    2    		42.2
    48.3
    60.3    		20.5
    20.5
    22.0
    65
    80
    100    		2-1/2
    3
    4    		73.0
    88.9
    114.3    		27.0
    28.5
    32.0
