MSS-SP-97 Forged Stainless Steel Threadolet

Thread Type:

NPT

Pressure Ratings:

3000 lbs

6000 lbs

NPS:

1/4"

3/8"

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2 "

3"

4"

4-1/2"

Material：:

304

304L

316

316L

Quantity:

Contact Now

add to cart

MSS SP-97 Threadolet

Standard: MSS SP-97, GB/T19326
Threads Standard: ASME B1.20.1
Forged Stainless Steel Material Standard: ASME A182
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

These precision threadolet fittings provide reliable branch connections for high-pressure piping systems through threaded integration. The innovative threaded outlet design enables secure branch installations with enhanced structural integrity. Manufactured from forged stainless steel to MSS SP-97 standards, these durable threadolet fittings ensure optimal flow characteristics and pressure containment. The reinforced construction of these threaded outlet connections guarantees leak-proof performance while maintaining the main pipeline's pressure rating. Ideal for petrochemical, power generation, and industrial applications, these high-performance threadolet fittings facilitate straightforward installation with complete threaded integration. The engineered threaded outlet configuration ensures reliable service in demanding conditions where branch connections and system safety are essential requirements.

Key Features

Standard Compliance: Fully manufactured to MSS SP-97 and GB/T 19326 industry standards for guaranteed compatibility and performance.
High-Grade Material: Produced from Forged Stainless Steel following ASME A182 material standards, offering exceptional strength and corrosion resistance.
Pressure Ratings: Available in heavy-duty 3000# and 6000# classes to handle demanding high-pressure service requirements.
Versatile Sizing: Covers a wide range of branch connections from 1/4"to 5"to fit various piping configurations.
Quality Certification: Produced in an ISO 9001:2015 and GB/T 19001-2016 certified facility with rigorous quality control.
Traceability & Documentation: Full Material Test Reports (MTRs) and Certificates of Conformity (COC) are available upon request to ensure project compliance.
Easy Installation: Features a precision-contoured base for a perfect fit on the run pipe, facilitating efficient welding and a robust connection.

Dimensions & Sizes

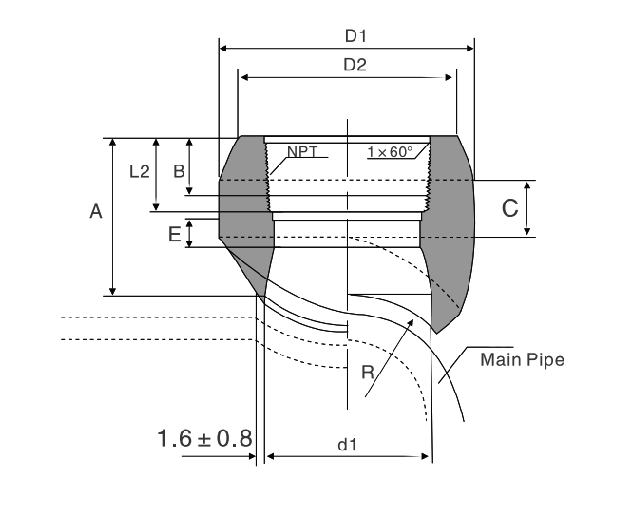

threadolet fittings

RUNPIPESIZE		BRANCHPIPESIZE		3000lb	6000lb	3000lb	6000lb	3000lb	6000lb
DN	NPS	DN	NPS	Amin/mm		D1min/mm		D2min/mm
8-900	1/4-36	6	1/8	19		27		22
10-900	3/8-36	8	1/4	19		27		22
15-900	1/2-36	10	3/8	21		30		25
20-900	3/4-36	15	1/2	25	32	38	45	33	42
25-900	1-36	20	3/4	27	37	47	52	39	48
32-900	1.25-36	25	1	33	40	56	63	48	58
40-900	1.5-36	32	1-1/4	33	41	66	72	58	67
50-900	2-36	40	1-1/2	35	43	75	83	64	77
65-900	2.5-36	50	2	38	52	90	104	77	93
80-900	3-36	65	2-1/2	46		105		94
100-900	4-36	80	3	51		124		114
125-900	5-36	100	4	57		154		140

MSS SP-97 Unit:m/m
