    MSS-SP-114 Stainless Steel Threaded Reducing Tee

    Thread Type:
    NPT
    Size:
    1/4"x1/8"
    3/8"x1/8"
    3"x2"
    3/8"x1/8"
    1/2"x1/8"
    1/2"x1/4"
    1/2"x3/8"
    3/4"x1/4"
    3/4"x3/8"
    3/4"x1/2"
    1"x1/4"
    1"x3/8"
    1"x1/2"
    1"x3/4"
    1-1/4"x3/8"
    1-1/4"x1/2"
    1-1/4"x3/4"
    1-1/4"x1"
    1-1/2"x3/8"
    1-1/2"x1/2"
    1-1/2"x3/4"
    1-1/2"x1"
    1-1/2"x1-1/4"
    2"x1/2"
    2"x3/4"
    2"x1"
    2"x1-1/4"
    2"x1-1/2"
    2-1/2"x1/2"
    2-1/2"x3/4"
    2-1/2"x1"
    2-1/2"x1-1/4"
    2-1/2"x1-1/2"
    2-1/2"x2"
    3"x1"
    3"x1-1/4"
    3"x1-1/2"
    3"x2-1/2"
    4"x1-1/4"
    4"x1-1/2"
    4"×2"
    4"×2-1/2"
    4"x3"
    Pressure Ratings:
    150 lbs
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 Reducing tee
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision pipe reducing tee provides efficient branch line connections with size transitions in industrial piping systems. The durable threaded reducing tee features female NPT threads on all three ports with reducing branch dimensions for versatile flow distribution. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this robust pipe reducing tee ensures leak-proof performance with 150# pressure rating across sizes from 1/4"x1/8"to 4"x3". The innovative threaded reducing tee design simplifies installation by combining branch connection and pipe reduction in a single fitting. This high-quality pipe reducing tee delivers exceptional corrosion resistance and long-term reliability where branch line connections and size adaptations are essential requirements. The precision-cast threaded reducing tee guarantees perfect alignment and easy maintenance in chemical, petroleum, and marine applications.

    Key Features

    • 304 Stainless Steel Construction：Provides superior resistance to corrosion, rust, and oxidation.
    • Cast Construction：Ensures consistent wall thickness and structural integrity.
    • Threaded (NPT) Connection：Compatible with standard threaded piping systems.
    • Class 150 Pressure Rating：Suitable for low- to medium-pressure industrial applications.
    • Compact and Rigid Structure：Ideal for equipment connections and space-limited installations.

    Dimensions & Sizes

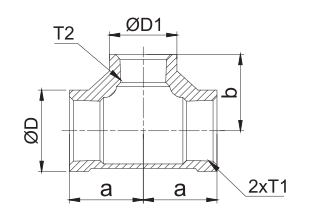

    reducing tee

    SizeT1xT2DNØDØD1ab
    1/4"x1/8"8x61814.51818
    3/8"x1/8"10x62114.51920
    3/8"x1/4"10x821182022
    1/2"x1/8"15x626.514.52322
    1/2"x1/4"15×826.5182424
    1/2"x3/8"15x1026.5212625
    3/4"x1/4"20x832182627
    3/4"x3/8"20×1032212828
    3/4"x1/2"20x153226.52930
    1"x1/4"25x839.5182930
    1"x3/8"25×1039.5213131
    1"x1/2"25x1539.526.53233
    1"x3/4"25×2039.5323435
    1-1/4"x3/8"32×1048.5213439
    1-1/4"x1/2"32x1548.526.53439
    1-1/4"x3/4"32x2048.5323740
    1-1/4"x1"32×2548.539.54042
    1-1/2"x3/8"40x1055213542
    1-1/2"x1/2"40x155526.53542
    1-1/2"x3/4"40×2055323843
    1-1/2"x1"40x255539.54145
    1-1/2"x1-1/4"40x325548.54548
    2"x1/2"50x156726.53648
    2"x3/4"50×2067324049
    2"x1"50x256739.54351
    2"x1-1/4"50x326748.54753
    2"x1-1/2"50x4067555154
    2-1/2"x1/2"65x158426.54760
    2-1/2"x3/4"65x2084324760
    2-1/2"x1"65×258439.54760
    2-1/2"x1-1/4"65x328448.55261
    2-1/2"x1-1/2"65x40845552.562
    2-1/2"x2"65x5084676065
    3"x1"80x259839.55468
    3"x1-1/4"80x329848.55468
    3"x1-1/2"80x4098555469
    3"x2"80x5098676272
    3"x2-1/2"80x6598847275
    4"x1-1/4"100x32124.548.56083
    4"x1-1/2"100x40124.5556684
    4"×2"100x50124.5676887
    4"×2-1/2"100x65124.5847890
    4"x3"100x80124.5988391

    tolerance：1/8"~2"ab-0.6mm、2-1/2"~4"ab-1.2mm
