    WP304L 3/4"Straight Outlet Tee Butt Weld Pipe Fittings Stainless Steel ASME B16.9

    NPS:
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    3-1/2"
    4"
    5"
    6"
    8"
    10"
    12"
    14"
    16"
    18"
    20"
    22"
    24"
    26"
    28"
    30"
    32"
    34"
    36"
    38"
    40"
    42"
    44"
    46"
    48"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    ASME B16.9 Straight Outlet Tee
    Standard: ASME B16.9
    Material Standard: ASTM A403
    Material Construction: Welded
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision outlet tee provides reliable straight branch connections for industrial piping systems. The specialized straight tee design features a 90-degree outlet that maintains consistent flow direction with minimal turbulence. Manufactured from corrosion-resistant WP304L stainless steel to ASME B16.9 standards, this durable outlet tee ensures excellent performance in demanding applications. The straight tee configuration offers optimal flow characteristics while providing secure branch connections in complex piping networks. Ideal for chemical processing, pharmaceutical, and food industry applications, this high-quality outlet tee guarantees leak-proof performance where straight branch connections and system integrity are essential requirements. The precision-formed straight tee features smooth interior surfaces and perfect alignment for easy installation in demanding service conditions.

    Key Features

    • Low Carbon WP304L Material: Fabricated from high-quality ASTM A403 WP304L stainless steel. The low carbon content minimizes carbide precipitation during welding, ensuring superior structural integrity.
    • Standard Dimensional Accuracy: Fully compliant with the ASME B16.9 standard. This ensures precise geometry and seamless compatibility with standard 3/4"piping systems.
    • Straight Outlet Configuration: Features a uniform Straight Outlet Tee design, providing balanced fluid distribution and maintaining consistent flow rates across all branches.
    • High-Strength Butt Weld Joint: Designed with butt weld ends to create a permanent, leak-proof, and high-strength connection. It is ideal for pressurized industrial pipeline applications.
    • Reliable Manufacturing Quality: Produced in a facility certified under ISO 9001:2015 and GB/T19001-2016. This guarantees strict adherence to international quality management protocols.
    • Full Documentation & Traceability: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request to verify material grade and technical compliance.

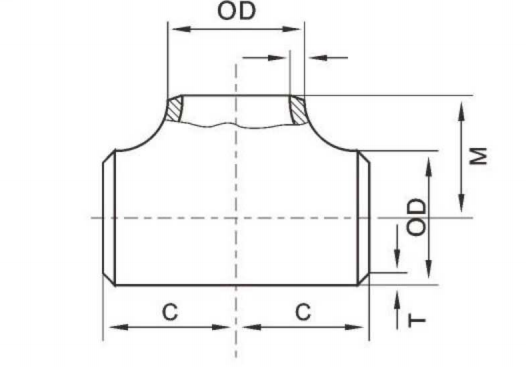

    Dimensions & Sizes

    outlet tee

    Nominal
    Pipe Size
    (NPS)    		Outside
    DiameterAt Bevel
    OD    		Center-to-end
    Straight Outlet Tees
    CM(1)
    INMMINMMINMM
    1/20.8421.3125125
    3/41.0526.71.12291.1229
    11.3233.41.5381.538
    1-1/41.6642.21.88481.8848
    1-1/21.948.32.25572.2557
    22.3860.32.5642.564
    2-1/22.8873.0376376
    33.588.93.38863.3886
    3-1/24101.63.75953.7595
    44.5114.34.121054.12105
    55.56141.34.881244.88124
    66.62168.35.621435.62143
    88.62219.171787178
    1010.75273.08.52168.5216
    1212.75323.81025410254
    1414355.61127911279
    1616406.41230512305
    1818457.213.534313.5343
    20205081538115381
    2222558.816.541916.5419
    2424609.61743217432
    2626660.419.549519.5495
    2828711.220.252120.2521
    30307622255922559
    3232812.823.559723.5597
    3434863.62563525635
    3636914.426.567326.5673
    3838965.22871128711
    4040101629.574929.5749
    42421066.83076228711
    44441117.63281330762
    46461168.433.585131.5800
    48481219.23588933838
