MSS-SP-114 Stainless Steel Hex Male Hose Nipple

Thread Type:

NPS

NPT

ΦD:

6

8

9.5

10

11

12

13

13.5

14

15

16

19

20

25

26

27

32

33

38

40.5

45

50

51

52

52.5

64.5

75

77

103

Pressure Ratings:

150 lbs

NPS:

1/8"

1/4"

3/8"

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2 "

3"

4"

Material：:

304

316

Custom

Quantity:

Contact Now

add to cart

Hexagon Male Hose Nipple

Standard: ISO4144, SP-114
Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

This durable male hose nipple provides reliable hose-to-pipe connections for industrial fluid systems. The precision-cast hex hose nipple features a hexagonal design for secure installation using standard tools. Manufactured from corrosion-resistant stainless steel, this versatile male hose nipple ensures long-term performance in demanding environments. Rated for 150# pressure applications, this robust hex hose nipple facilitates secure transitions between pipe threads and hose connections. Available in sizes from 1/8"to 4", this practical male hose nipple allows for easy gripping during assembly. Ideal for chemical processing, water systems, and food industry applications, this reliable hex hose nipple delivers leak-proof performance where secure connections and easy maintenance are essential requirements.

Key Features

Precision Engineering: Manufactured in accordance with ISO 4144 standards and ASME A351 material specifications for guaranteed quality and interchangeability.
Corrosion-Resistant Material: Cast from high-grade stainless steel (304/316), making it ideal for water, oil, gas, and mildly corrosive chemical applications.
Robust Hexagonal Grip: Features a heavy-duty hex body design that prevents slipping during installation and allows for maximum torque application.
Serrated Hose Tail: The precision-machined barb ensures a tight, high-friction grip on flexible tubing, preventing hose blow-offs.
Certified Quality: Produced in an ISO 9001:2015 certified facility with full traceability; Material Test Reports (MTRs) are available upon request to verify chemical and physical properties.
Versatile Application: Suitable for a wide range of industries, including food and beverage, chemical processing, marine, and general manufacturing.

Dimensions & Sizes

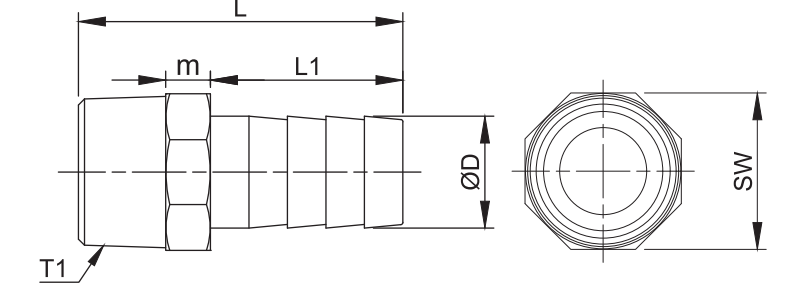

Male hose nipple

Size T1	DN	ØD	L	L1	m	SW
1/8"	6	6	37	20	6	12
1/8"	6	8	40	23	6	12
1/8"	6	9.5	42	25	6	12
1/8"	6	10	42	25	6	12
1/8"	6	11	43	26	6	12
1/4"	8	6	40.5	21	6	15
1/4"	8	8	43.5	24	6	15
1/4"	8	9.5	45.5	26	6	15
1/4"	8	10	45.5	26	6	15
1/4"	8	11	46.5	27	6	15
1/4"	8	12	47.5	28	6	15
1/4"	8	13	48.5	29	6	15
3/8"	10	6	42.5	21	7	18
3/8"	10	8	46.5	25	7	18
3/8"	10	10	48.5	27	7	18
3/8"	10	11	49.5	28	7	18
3/8"	10	12	50.5	29	7	18
3/8"	10	13	51.5	30	7	18
3/8"	10	15	52.5	31	7	18
3/8"	10	16	53.5	32	7	18
1/2"	15	6	47.5	23	8	22
1/2"	15	8	51.5	27	8	22
1/2"	15	9.5	53.5	29	8	22
1/2"	15	10	53.5	29	8	22
1/2"	15	11	54.5	30	8	22
1/2"	15	12	55.5	31	8	22
1/2"	15	13	56.5	32	8	22
1/2"	15	14	57.5	33	8	22
1/2"	15	15	58.5	34	8	22
1/2"	15	16	59.5	35	8	22
1/2"	15	19	61.5	37	8	22
1/2"	15	20	62.5	38	8	22
1/2"	15	25	66.5	41	8	28
3/4"	20	10	56.5	30	9	28
3/4"	20	12	58.5	32	9	28
3/4"	20	13	59.5	33	9	28
3/4"	20	15	61.5	35	9	28
3/4"	20	16	62.5	36	9	28

tolerance：1/8"～2"L-1.2mm, 2-1/2"～4"L-2.4mm
polygonal ：Hexagon1/8"～3/4"“, aniseed1"～4”
