    MSS-SP-114 Stainless Steel Threaded M/F Union

    Thread Type:
    NPT
    Pressure Ratings:
    150 lbs
    NPS:
    1/8"
    1/4"
    3/8"
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    4"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 Female and Male Union
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This versatile male female union fitting provides exceptional connection flexibility for industrial piping systems. The precision-engineered f m union design combines female and male NPT threads on opposite ends, enabling seamless transitions between different connection types. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this durable male female union fitting ensures leak-proof performance with 150# pressure rating across 1/8"to 4"sizes. The practical f m union configuration facilitates easy disassembly and maintenance in chemical, petroleum, and process applications. This high-quality male female union fitting delivers superior corrosion resistance and long-term reliability where connection versatility and system serviceability are essential requirements. The robust f m union construction guarantees perfect alignment and pressure integrity in demanding industrial environments.

    Key Features

    • Union Structure for Easy Disassembly：Three-piece union construction enables fast connection and disconnection without pipe rotation, ideal for maintenance-prone installations.
    • Premium 304 Stainless Steel：Excellent corrosion resistance, durability, and long service life in demanding environments.
    • 150# Pressure Rating：Suitable for standard low- to medium-pressure piping systems.
    • Wide Size Range：Available from 1/8” to 4”, covering common pipe connection requirements.
    • Threaded Cast Construction：Precision-cast body with clean, accurate threads for secure, leak-resistant sealing.
    • Multi-Application Compatibility：Suitable for water, gas, oil, air, and other non-corrosive fluids.

    Dimensions & Sizes

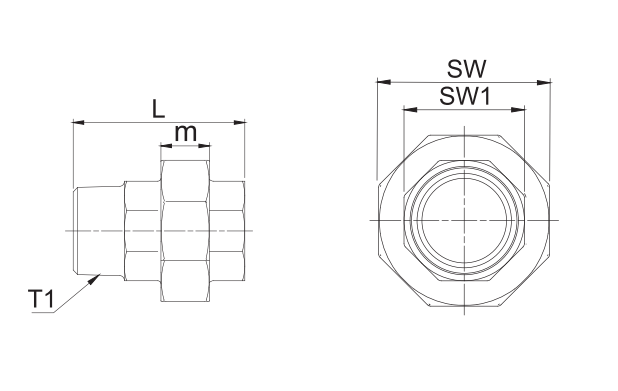

    male female union fitting

    Size T1DNLmSWSW1
    1/8"640.5132614
    1/4"846142917
    3/8"105014.53321
    1/2"1555.516.53825
    3/4"2059.517.54631
    1"2565.518.55438
    1-1/4"3273.5216447
    1-1/2"4078237153
    2"5087.5258565
    2-1/2"6598.52710781
    3"80109.52912095
    4"100125.531146121

    tolerance：1/8"～2"L-0.6mm, 2-1/2"～4"L-1.2mm
    polygonal ：aniseed1/8"～2"Decagon2-1/2"～4"

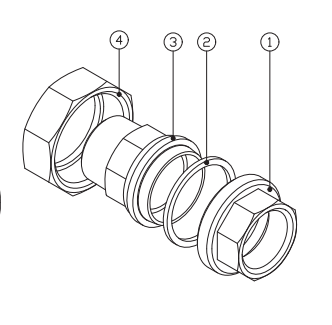

    male female union fitting

    No.Name
    1Union Nut
    2Sealing Gasket
    3Straight Connector
    4Nut
