    MSS-SP-114 Stainless Steel Threaded Reducing Hex Adapter

    Thread Type:
    NPT
    Size:
    1/4"x1/8"
    3/8"x1/8"
    3/8"x1/8"
    1/2"x1/4"
    1/2"x3/8"
    3/4"x3/8"
    3/4"x1/2"
    1"x1/4"
    1"x3/8"
    1"x1/2"
    1"x3/4"
    1-1/4"x1/2"
    1-1/4"x3/4"
    1-1/4"x1"
    1-1/2"x1/2"
    1-1/2"x3/4"
    1-1/2"x1"
    1-1/2"x1-1/4"
    2"x1/2"
    2"x3/4"
    2"x1"
    2"x1-1/4"
    2"x1-1/2"
    Pressure Ratings:
    150 lbs
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 Reducing Hexagon Female and Male Connector
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision hex reducing bushing provides efficient pipe size transitions in industrial threaded systems. The versatile fm connector features a hexagonal exterior for easy installation using standard tools while combining female and male NPT threads with reducing dimensions. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this durable hex reducing bushing ensures leak-proof performance with 150# pressure rating across sizes from 1/4"x1/8"to 2"x1-1/2". The practical fm connector design eliminates the need for multiple fittings, simplifying installation in chemical, petroleum, and marine applications. This high-quality hex reducing bushing delivers exceptional corrosion resistance and long-term reliability where both connection adaptation and pipe size reduction are essential requirements. The robust fm connector construction guarantees perfect thread alignment and pressure integrity in demanding service environments.

    Key Features

    • 304 Stainless Steel Construction：Provides superior resistance to corrosion, rust, and oxidation.
    • Cast Construction：Ensures consistent wall thickness and structural integrity.
    • Threaded (NPT) Connection：Compatible with standard threaded piping systems.
    • Class 150 Pressure Rating：Suitable for low- to medium-pressure industrial applications.
    • Compact and Rigid Structure：Ideal for equipment connections and space-limited installations.

    Dimensions & Sizes

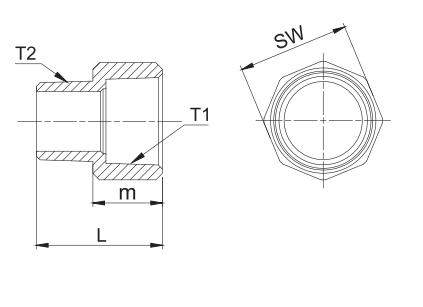

    hex reducing bushing

    SizeT1xT2DNLmSW
    1/4"x1/8"8x6291717
    3/8"x1/8"10x6301821
    3/8"x1/4"10x832.51821
    1/2"x1/4"15x835.52125
    1/2"x3/8"15x1036.52125
    3/4"x1/4"20x83722.531
    3/4"x3/8"20x103822.531
    3/4"x1/2"20x154022.531
    1"x1/4"25x838.52438
    1"x3/8"25x1039.52438
    1"x1/2"25x1541.52438
    1"x3/4"25×2042.52438
    1-1/4"x1/2"32x1543.52647
    1-1/4"x3/4"32x2044.52647
    1-1/4"x1"32x2546.52647
    1-1/2"x1/2"40x1544.52753
    1-1/2"x3/4"40x2045.52753
    1-1/2"x1"40x2547.52753
    1-1/2"x1-1/4"40x32492753
    2"x1/2"50x1548.53165
    2"x3/4"50x2049.53165
    2"x1"50x2551.53165
    2"x1-1/4"50x32533165
    2"x1-1/2"50x4053.53165

    tolerance：1/4"~2"L-1.2mm
    polygonal ：Hexagon1/8"~3/4", aniseed1"～2"
