MSS-SP-114 Stainless Steel Hex Male Elbow Hose Nipple

Thread Type:

BSPT

BSPP

NPS

NPT

ΦD:

6

8

10

12

13

15

16

20

25

26

27

33

34

38

40.5

50

51

52.5

Pressure Ratings:

150 lbs

NPS:

1/4"

3/8"

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

Material：:

304

316

Custom

Quantity:

Contact Now

add to cart

Hexagon Male Elbow Hose Nipple

Standard: ISO4144, SP-114
Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

This versatile hex hose nipple delivers reliable 90-degree hose connections for industrial fluid systems. The precision-cast elbow nipple features a hexagonal design for secure installation using standard tools. Manufactured from corrosion-resistant stainless steel, this durable hex hose nipple ensures long-term performance in demanding environments. Rated for 150# pressure applications, this robust elbow nipple facilitates smooth directional changes while maintaining optimal flow. The practical hexagonal shape of this hex hose nipple allows for easy gripping during assembly. Ideal for chemical processing, food industry, and industrial applications, this reliable elbow nipple provides leak-proof performance where secure angled connections and space-efficient layouts are essential requirements.

Key Features

Precision Engineering: Manufactured in accordance with ISO 4144 standards and ASME A351 material specifications for guaranteed quality and interchangeability.
Corrosion-Resistant Material: Cast from high-grade stainless steel (304/316), making it ideal for water, oil, gas, and mildly corrosive chemical applications.
Robust Hexagonal Grip: Features a heavy-duty hex body design that prevents slipping during installation and allows for maximum torque application.
Serrated Hose Tail: The precision-machined barb ensures a tight, high-friction grip on flexible tubing, preventing hose blow-offs.
Certified Quality: Produced in an ISO 9001:2015 certified facility with full traceability; Material Test Reports (MTRs) are available upon request to verify chemical and physical properties.
Versatile Application: Suitable for a wide range of industries, including food and beverage, chemical processing, marine, and general manufacturing.

Dimensions & Sizes

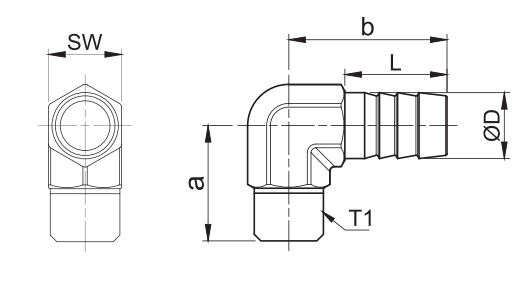

hex hose nipple

Size	DN	ØD	L	a	b	SW
1/4"	8	6	18	25.5	28.5	14
1/4"	8	8	21	25.5	31.5	14
1/4"	8	10	22	25.5	32.5	14
1/4"	8	12	24	25.5	34.5	14
3/8"	10	6	18	28.5	31	18
3/8"	10	8	21	28.5	34	18
3/8"	10	10	22	28.5	35	18
3/8"	10	12	24	28.5	37	18
3/8"	10	13	25	28.5	38	18
3/8"	10	15	27	28.5	40	18
3/8"	10	16	27	28.5	40	18
1/2"	15	6	18	33.5	33.5	22
1/2"	15	8	21	33.5	36.5	22
1/2"	15	10	22	33.5	37.5	22
1/2"	15	12	24	33.5	39.5	22
1/2"	15	13	25	33.5	40.5	22
1/2"	15	15	27	33.5	42.5	22
1/2"	15	16	27	33.5	42.5	22
1/2"	15	20	30	33.5	45.5	22
3/4"	20	15	27	38	46	27.5
3/4"	20	16	27	38	46	27.5
3/4"	20	20	30	38	49	27.5
3/4"	20	25	34	38	53	27.5
3/4"	20	27	39	38	58	27.5
1"	25	20	30	44	50.5	34
1"	25	25	34	44	54.5	34
1"	25	33	39	44	59.5	34
1"	25	26	34	44	54.5	34
1"	25	27	39	44	59.5	34
1"	25	33	39	44	59.5	34
1"	25	34	45	44	65.5	34
1-1/4"	32	33	39	49.5	64.5	43
1-1/2"	40	38	44	54.5	72.5	49
1-1/2"	40	40.5	44	52.5	72.5	49
2"	50	50	50	66	85.5	61
2"	50	51	50	66	85.5	61
2"	50	52.5	50	66	93.5	61

tolerance：1/4"～2"ab-0.6mm
polygonal ：Hexagon1/8"～3/4"“, aniseed1"～2”
