MSS-SP-114 Stainless Steel Hex Female Hose Nipplel

Thread Type:

BSPT

BSPP

NPS

NPT

ΦD:

6

8

10

12

13

15

16

20

25

33

38

40.5

51

52

52.5

64.5

77

Pressure Ratings:

150 lbs

NPS:

1/8"

1/4"

3/8"

1/2 "

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2 "

3"

Material：:

304

316

Custom

Quantity:

Contact Now

add to cart

Hexagon Female Hose Nipple

Standard: ISO4144, SP-114
Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

Product Overview

This durable hex female connector provides reliable hose-to-pipe connections for industrial fluid systems. The precision-cast hex hose nipple features a hexagonal body for secure installation using standard tools. Manufactured from corrosion-resistant stainless steel, this versatile hex female fitting ensures long-term performance in demanding environments. Rated for 150# pressure applications, this robust hex hose nipple facilitates secure transitions between pipe threads and hose connections. The practical hexagonal design of this hex female connector allows for easy gripping during assembly. Ideal for chemical processing, water systems, and industrial applications, this reliable hex hose nipple delivers leak-proof performance where secure hose connections and easy maintenance are essential requirements.

Key Features

Precision Engineering: Manufactured in accordance with ISO 4144 standards and ASME A351 material specifications for guaranteed quality and interchangeability.
Corrosion-Resistant Material: Cast from high-grade stainless steel (304/316), making it ideal for water, oil, gas, and mildly corrosive chemical applications.
Robust Hexagonal Grip: Features a heavy-duty hex body design that prevents slipping during installation and allows for maximum torque application.
Serrated Hose Tail: The precision-machined barb ensures a tight, high-friction grip on flexible tubing, preventing hose blow-offs.
Certified Quality: Produced in an ISO 9001:2015 certified facility with full traceability; Material Test Reports (MTRs) are available upon request to verify chemical and physical properties.
Versatile Application: Suitable for a wide range of industries, including food and beverage, chemical processing, marine, and general manufacturing.

Dimensions & Sizes

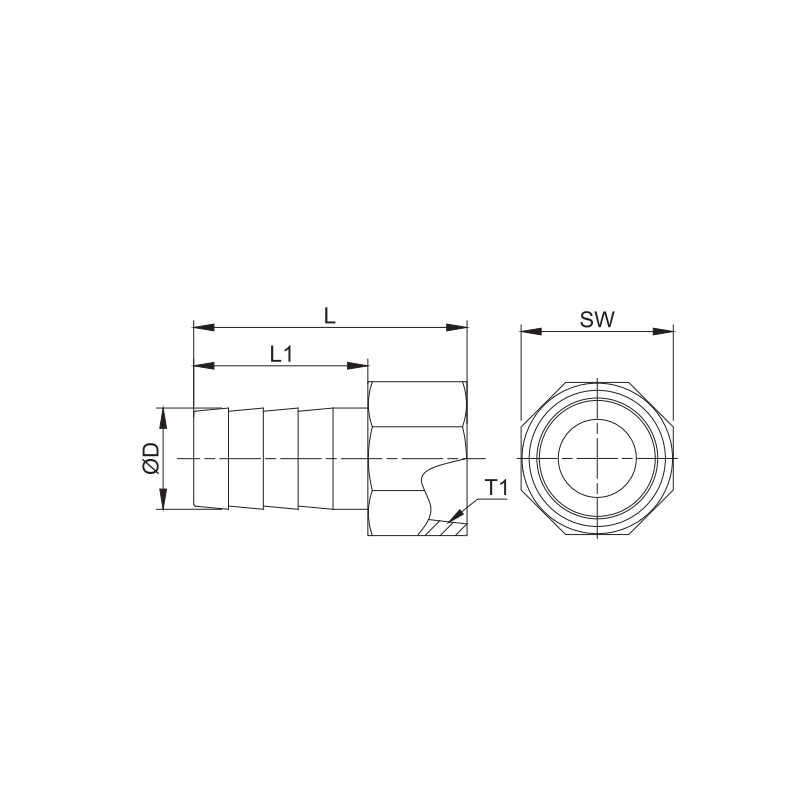

hex hose nipple

Size T1	DN	ØD	L	L1	SW
1/8"	6	6	36	20	14
1/8"	6	6	36	20	14
1/4"	8	8	41	24	17
1/4"	8	10	43	26	17
1/4"	8	12	45	28	17
3/8"	10	8	43	25	21
3/8"	10	10	45	27	21
3/8"	10	12	47	29	21
3/8"	10	15	49	31	21
3/8"	10	16	50	32	21
1/2"	15	8	47	27	25
1/2"	15	10	49	29	25
1/2"	15	12	51	31	25
1/2"	15	13	52	32	25
1/2"	15	15	54	34	25
1/2"	15	20	58	38	25
3/4"	20	15	56	35	31
3/4"	20	20	60	39	31
3/4"	20	25	63	42	31
1"	25	15	60.5	36	38
1"	25	20	64.5	40	38
1"	25	25	67	43	38
1"	25	33	74.5	50	38
1-1/4"	32	33	78	52	47
1-1/2"	40	38	81	54	53
1-1/2"	40	40.5	82	55	53
2"	50	51	89.5	58.5	53
2"	50	52	90	59	65
2"	50	52.5	90	59	65
2-1/2"	65	64.5	100	65	82
3"	80	77	102	65	95.5

tolerance： 1/8"~2-1/2"L - 1.2mm
polygonal：Hexagon1/8"~3/4", aniseed1"～3"
