MSS-SP-114 Stainless Steel Hex Female Elbow Hose Nipple
Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.
Product Overview
This versatile hex elbow delivers reliable 90-degree hose connections for industrial fluid systems. The precision-cast female hose nipple features a hexagonal design for secure installation using standard tools. Manufactured from corrosion-resistant stainless steel, this durable hex elbow ensures long-term performance in demanding environments. Rated for 150# pressure applications, this robust female hose nipple facilitates smooth directional changes while maintaining optimal flow. The practical hexagonal shape of this hex elbow allows for easy gripping during assembly and maintenance. Ideal for chemical processing, irrigation systems, and industrial applications, this reliable female hose nipple provides leak-proof performance where secure angled connections and space-efficient layouts are essential requirements.
Key Features
- Precision Engineering: Manufactured in accordance with ISO 4144 standards and ASME A351 material specifications for guaranteed quality and interchangeability.
- Corrosion-Resistant Material: Cast from high-grade stainless steel (304/316), making it ideal for water, oil, gas, and mildly corrosive chemical applications.
- Robust Hexagonal Grip: Features a heavy-duty hex body design that prevents slipping during installation and allows for maximum torque application.
- Serrated Hose Tail: The precision-machined barb ensures a tight, high-friction grip on flexible tubing, preventing hose blow-offs.
- Certified Quality: Produced in an ISO 9001:2015 certified facility with full traceability; Material Test Reports (MTRs) are available upon request to verify chemical and physical properties.
- Versatile Application: Suitable for a wide range of industries, including food and beverage, chemical processing, marine, and general manufacturing.

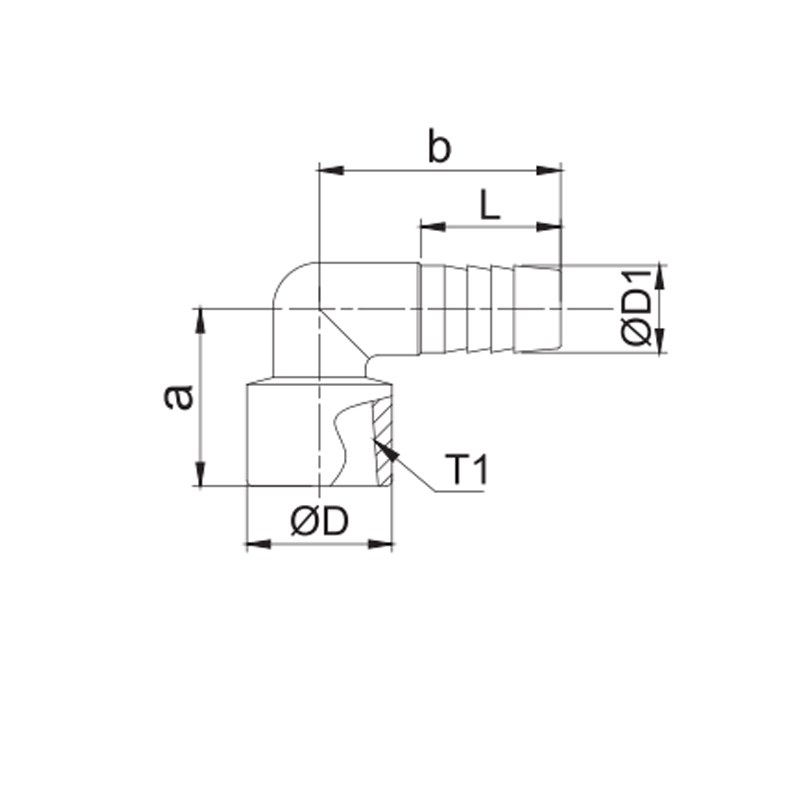

Dimensions & Sizes
| Size T1 | DN | ØD | ØD1 | a | b | L |
|---|---|---|---|---|---|---|
| 1/4" | 8 | 17 | 8 | 22.5 | 32.5 | 20 |
| 1/4" | 8 | 17 | 10 | 23.5 | 33.5 | 21 |
| 1/4" | 8 | 17 | 12 | 24.5 | 35.5 | 23 |
| 3/8" | 10 | 21 | 8 | 24 | 35 | 20 |
| 3/8" | 10 | 21 | 10 | 25 | 36 | 21 |
| 3/8" | 10 | 21 | 12 | 26 | 38 | 23 |
| 3/8" | 10 | 21 | 15 | 27.5 | 40 | 25 |
| 1/2" | 15 | 25 | 8 | 26.5 | 37.5 | 20 |
| 1/2" | 15 | 25 | 10 | 27.5 | 38.5 | 21 |
| 1/2" | 15 | 25 | 12 | 28.5 | 40.5 | 23 |
| 1/2" | 15 | 25 | 15 | 30 | 42.5 | 25 |
| 1/2" | 15 | 25 | 16 | 30.5 | 42.5 | 25 |
| 1/2" | 15 | 25 | 20 | 32.5 | 44.5 | 27 |
tolerance：1/4"～1/2"ab-0.6mm
Why Shop With Us?
- Custom Sizes Available: Don’t see the size you need? Contact us for more information on custom orders and additional specifications.
- Fast Support: Have questions? Our technical team is ready to help. We aim to respond to all inquiries as quickly as possible.
- Quality Guaranteed: We stand behind the quality of our stainless steel hardware. Happy Shopping!
