    MSS-SP-114 Stainless Steel Threaded Bushing

    Thread Type:
    NPT
    Size:
    1/4"x1/8"
    3/8"x1/8"
    3/8"x1/8"
    3"x2"
    1/2"x1/8"
    1/2"x1/4"
    1/2"x3/8"
    3/4"x1/8"
    3/4"x1/4"
    3/4"x3/8"
    3/4"x1/2"
    1"x1/8"
    1"x1/4"
    1"x3/8"
    1"x1/2"
    1"x3/4"
    1-1/4"x1/4"
    1-1/4"x3/8"
    1-1/4"x1/2"
    1-1/4"x3/4"
    1-1/4"x1"
    1-1/2"x1/4"
    1-1/2"x3/8"
    1-1/2"x1/2"
    1-1/2"x3/4"
    1-1/2"x1"
    1-1/2"x1-1/4"
    2"x1/4"
    2"x1/2"
    2"x3/8"
    2"x3/4"
    2"x1"
    2"x1-1/4"
    2"x1-1/2"
    2-1/2"x1/2"
    2-1/2"x3/4"
    2-1/2"x1"
    2-1/2"x1-1/4"
    2-1/2"x1-1/2"
    2-1/2"x2"
    3"x1"
    3"x1-1/4"
    3"x1-1/2"
    3"x2-1/2"
    4"x1"
    4"x1-1/4"
    4"x1-1/2"
    4"×2"
    4"×2-1/2"
    4"x3"
    Pressure Ratings:
    150 lbs
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    MSS SP-114 Bushing
    Standard: ANSI/MSS SP-114
    Threads Standard: ASME B1.20.1
    Cast Stainless Steel Material Standard: ASME A351, GB/T 2100, EN 10213, JIS G5121
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    This precision hex bushing provides reliable pipe size reduction in industrial threaded systems. The durable round bushing design features a hexagonal exterior for easy installation using standard tools. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this versatile hex bushing ensures leak-proof performance with 150# pressure rating across sizes from 1/4"x1/8"to 4"x3". The compact round bushing configuration facilitates efficient space utilization in chemical, petroleum, and process applications. This high-quality hex bushing delivers exceptional corrosion resistance and long-term reliability where secure pipe size transitions and threaded connectivity are essential requirements. The robust round bushing construction guarantees perfect dimensional accuracy and easy installation in demanding industrial environments.

    Key Features

    • 304 Stainless Steel Construction：Provides superior resistance to corrosion, rust, and oxidation.
    • Cast Construction：Ensures consistent wall thickness and structural integrity.
    • Threaded (NPT) Connection：Compatible with standard threaded piping systems.
    • Class 150 Pressure Rating：Suitable for low- to medium-pressure industrial applications.
    • Compact and Rigid Structure：Ideal for equipment connections and space-limited installations.

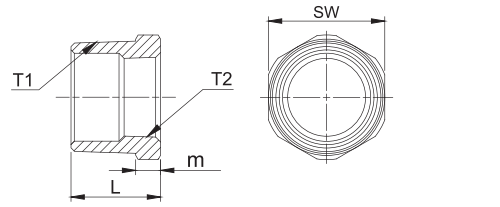

    Dimensions & Sizes

    hex bushing

    Size
    T1xT2    		DNLmSW
    1/4"x1/8"8x619.5615
    3/8"x1/8"10x6216.518
    3/8"x1/4"10x8216.518
    1/2"x1/8"15x6236.522
    1/2"x1/4"15x8236.522
    1/2"x3/8"15x10236.522
    3/4"x1/8"20x624.5728
    3/4"x1/4"20x824.5728
    3/4"x3/8"20x1024.5728
    3/4"x1/2"20x1524.5728
    1"x1/8"25x6277.535
    1"x1/4"25x8277.535
    1"x3/8"25x10277.535
    1"x1/2"25x15277.535
    1"x3/4"25×20277.535
    1-1/4"x1/4"32x829844
    1-1/4"x3/8"32x1029844
    1-1/4"x1/2"32x1529844
    1-1/4"x3/4"32x2029844
    1-1/4"x1"32x2529844
    1-1/2"x1/4"40x8308.550
    1-1/2"x3/8"40x10308.550
    1-1/2"x1/2"40x15308.550
    1-1/2"x3/4"40×20308.550
    1-1/2"x1"40x25308.550
    1-1/2"x1-1/4"40x32308.550
    2"x1/4"50x834962
    2"x3/8"50x1034962
    2"x1/2"50x1534962
    2"x3/4"50x2034962
    2"x1"50x2534962
    2"x1-1/4"50x3234962
    2"x1-1/2"50x4034962
    2-1/2"x1/2"65x1538.510.578
    2-1/2"x3/4"65×2038.510.578
    2-1/2"x1"65x2538.510.578
    2-1/2"x1-1/4"65x3238.510.578
    2-1/2"x1-1/2"65x4038.510.578
    2-1/2"x2"65x5038.510.578
    3"x1"80×2542.511.591
    3"x1-1/4"80x3242.511.591
    3"x1-1/2"80x4042.511.591
    3"x2"80x5042.511.591
    3"x2-1/2"80x6542.511.591
    4"x1"100x2549.512.5117
    4"x1-1/4"100x3249.512.5117
    4"x1-1/2"100x4049.512.5117
    4"x2"100x5049.512.5117
    4"x2-1/2"100x6549.512.5117
    4"x3"100x8049.512.5117

    tolerance：1/8"~2"L-0.6mm、2-1/2"~4"L-1.2mm
    polygonal ：Hexagon1/8"~3/4"、aniseed1"～4"

    Why Shop With Us?

    • Custom Sizes Available: Don’t see the size you need? Contact us for more information on custom orders and additional specifications.
    • Fast Support: Have questions? Our technical team is ready to help. We aim to respond to all inquiries as quickly as possible.
    • Quality Guaranteed: We stand behind the quality of our stainless steel hardware. Happy Shopping!
