MSS-SP-114 Stainless Steel Threaded M/F Elbow Union

Product Overview

This innovative male female union fitting combines directional change with connection versatility in a single component. The precision-engineered elbow union features a 90-degree design with female NPT threads on one end and male NPT threads on the opposite end. Manufactured from corrosion-resistant stainless steel to MSS SP-114 standards, this durable male female union fitting ensures leak-proof performance with 150# pressure rating across 1/8"to 2"sizes. The unique elbow union configuration simplifies installation in tight spaces while providing both directional change and connection adaptation capabilities. This high-quality male female union fitting delivers exceptional corrosion resistance and long-term reliability where space optimization and connection flexibility are essential requirements. The robust elbow union construction guarantees perfect alignment and easy maintenance in chemical, marine, and petroleum applications.


Key Features

• Male × Female Threaded Design：One male and one female NPT thread allow easy integration with mixed-thread piping systems.

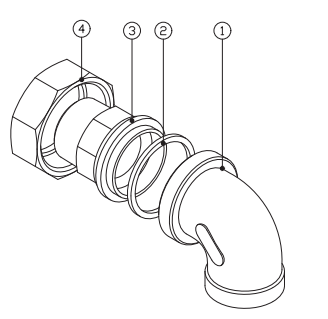

• Union Structure for Easy Disassembly：Three-piece union construction enables fast connection and disconnection without pipe rotation, ideal for maintenance-prone installations.
• Premium 304 Stainless Steel：Excellent corrosion resistance, durability, and long service life in demanding environments.
• 150# Pressure Rating：Suitable for standard low- to medium-pressure piping systems.
• Wide Size Range：Available from 1/8” to 4”, covering common pipe connection requirements.
• Threaded Cast Construction：Precision-cast body with clean, accurate threads for secure, leak-resistant sealing.
• Multi-Application Compatibility：Suitable for water, gas, oil, air, and other non-corrosive fluids.

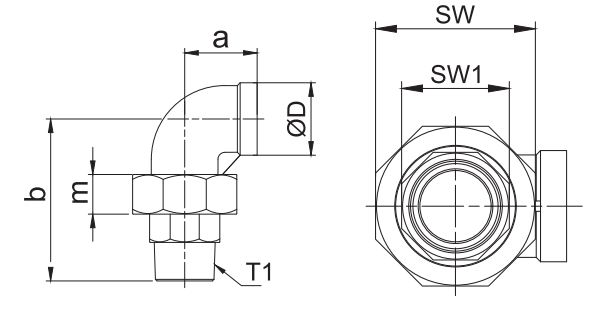

Dimensions & Sizes

tolerance：1/8"～2"a-0.6mm
polygonal ：aniseed1/8"～2"
