    ASME B16.9 WP316L SS 45 degree LR SR Elbow Butt Weld

    Model:
    Long Radius
    Short Radius
    NPS:
    1/2 "
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2 "
    3"
    3-1/2"
    4"
    5"
    6"
    8"
    10"
    12"
    14"
    16"
    18"
    20"
    22"
    24"
    26"
    28"
    30"
    32"
    34"
    36"
    38"
    40"
    42"
    44"
    46"
    48"
    Material：:
    304
    304L
    316
    316L
    Custom
    Quantity:
    Contact Now
    add to cart
    ASME B16.9 45° Elbow
    Standard: ASME B16.9
    Material Standard: ASTM A403
    Material Construction: Welded
    Manufacturing Facility Standard: ISO 9001:2015 , GB/T19001-2016
    Certification: Material Test Reports (MTRS) and Certificates of Conformity (COC) are available upon request.

    Product Overview

    Crafted from premium WP316L stainless steel, this versatile 45 elbow is designed for superior performance in corrosive and high-temperature environments. The precision-formed butt weld elbow ensures seamless integration into critical piping systems, with both long radius (LR) and short radius (SR) configurations available. Manufactured to ASME B16.9 standards, this durable 45 elbow guarantees perfect dimensional accuracy and optimal flow characteristics. The smooth interior surface of this butt weld elbow minimizes pressure drop and prevents contamination buildup. Ideal for chemical processing, pharmaceutical, and food grade applications, this reliable 45 elbow provides exceptional corrosion resistance and long-term service life. The robust butt weld elbow construction ensures leak-proof performance.

    Key Features

    • Premium Material: Manufactured from high-quality ASTM A403 WP316L stainless steel, offering superior corrosion resistance and low carbon content to prevent sensitization during welding.
    • Precision Engineering: Fully compliant with ASME B16.9 standards, ensuring precise dimensions, wall thickness (SCH), and a perfect 45-degree angle for seamless flow.
    • Durable Construction: Advanced Butt Weld design provides a leak-proof, high-strength connection suitable for high-pressure and high-temperature piping systems.
    • Certified Quality: Produced in an ISO 9001:2015 certified facility. Full traceability with MTC (Material Test Certificate) and COC available upon request.
    • Smooth Finish: Excellent surface finish to minimize turbulence and erosion within the pipeline.

    Dimensions & Sizes

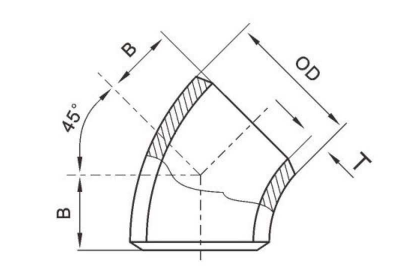

    bw elbow

    NominalPipe Size(NPS)OutsideDiameterAt Bevel(OD)B
    Long RadiusShort Radius
    INMMINMMINMM
    1/20.8421.30.6216-一
    3/41.0526.70.4411-一
    11.3233.40.88220.4110
    1-1/41.6642.2一250.5213
    1-1/21.948.31.12290.6216
    22.3860.31.38350.8321
    2-1/22.8873.01.75441.0426
    33.588.92511.2432
    3-1/24101.62.25571.4537
    44.5114.32.5641.6642
    55.56141.33.12792.0753
    66.62168.33.75952.5063
    88.62219.151273.3184
    1010.75273.06.251594.14105
    1212.75323.87.51904.97126
    1414355.68.752225.80147
    1616406.4102546.63168
    181845711.252867.46189
    202050812.53188.28210
    222255913.53439.11232
    2424610153819.94253
    26266601640510.77274
    282871117.2543811.60295
    303076218.547012.43316
    323281319.7550214.89378
    34348642153314.08358
    363691422.2556514.91379
    383896523.6260015.74400
    4040101624.8863216.57421
    424210672666017.40442
    4444111827.3869518.23463
    4646116828.6272719.05484
    4848121929.8875919.88505
